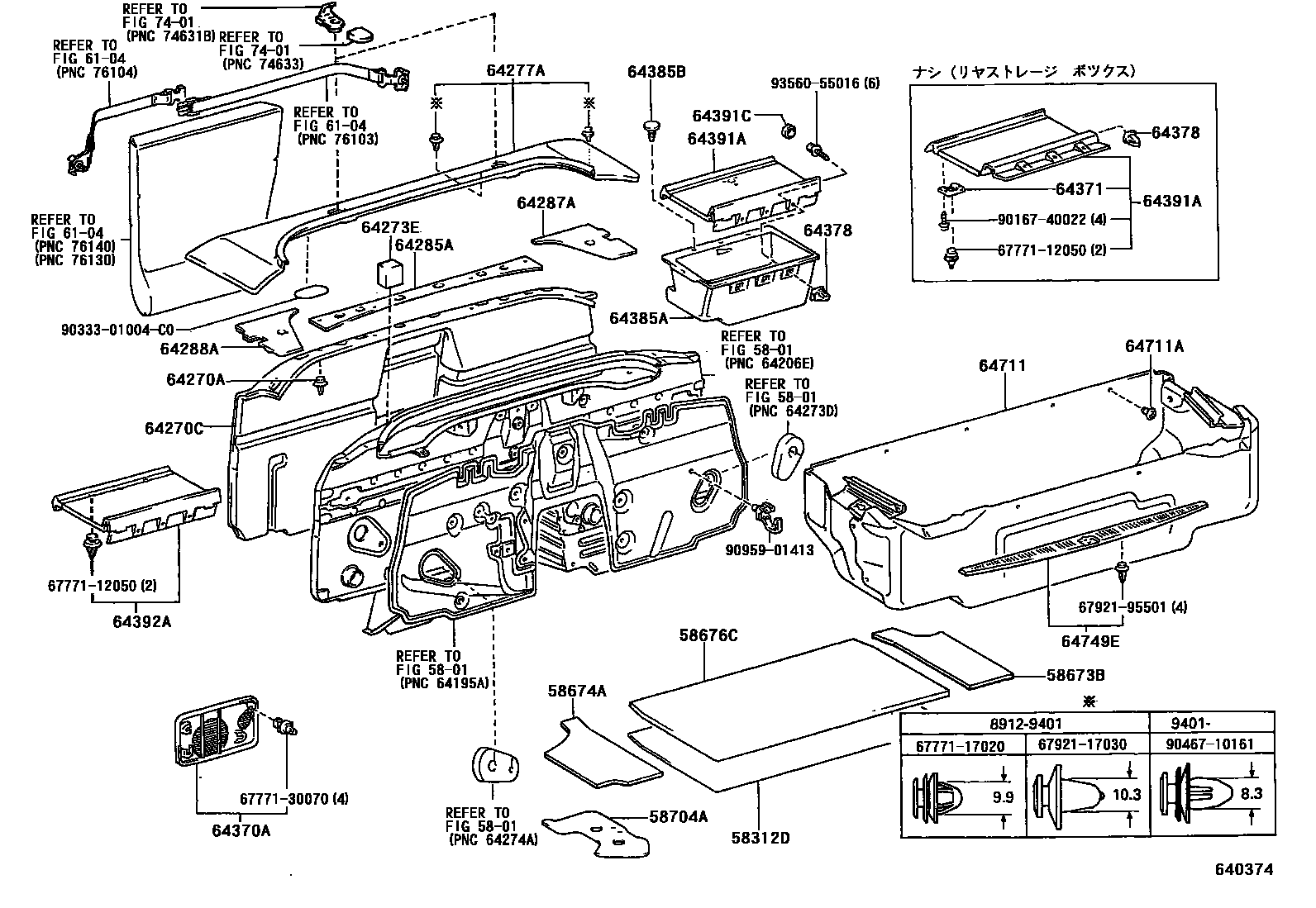

Toyota MR2 — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
5801FLOOR PAN & LOWER BACK PANEL
58312DBOARD, REAR FLOOR, NO.1
58673BPAD, REAR FLOOR SILENCER, NO.1
58674APAD, REAR FLOOR SILENCER, NO.2
58676CPAD, REAR FLOOR SILENCER
58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
6104ROOF PANEL & BACK WINDOW GLASS
64270ACLIP(FOR ROOM PARTITION BOARD SETTING)
BLACK,TRIM2#; BLACK,TRIM2#,8#
64270CBOARD ASSY, ROOM PARTITION
BLACK,TRIM2#
DARK BLUE,TRIM8#
BLACK,TRIM2#
64273EPAD, ROOM PARTITION
64277AMOULDING, ROOM PARTITION TRIM
BLACK,TRIM2#
DARK BLUE,TRIM8#
BLACK,TRIM2#
64285ACOVER, ROOM PARTITION, NO.3
64287ACOVER, ROOM PARTITION, NO.4 RH
64288ACOVER, ROOM PARTITION, NO.4 LH
64370AGRILLE ASSY, REAR SPEAKER
DARK BLUE,TRIM8#
64371RETAINER, PACKAGE TRAY TRIM
64378GROMMET, PACKAGE TRAY TRIM LID
64385APOCKET, PACKAGE TRAY TRIM
BLACK,TRIM2#
DARK BLUE,TRIM8#
BLACK,TRIM2#
64385BCLIP
BLACK,TRIM2#
DARK BLUE,TRIM8#
BLACK,TRIM2#
DARK BLUE,TRIM8#
BLACK,TRIM2#
64391ALID, PACKAGE TRAY TRIM, RH
BLACK,TRIM2#
BLACK,TRIM2#
DARK BLUE,TRIM8#
64391CCAP
BLACK,TRIM2#
DARK BLUE,TRIM8#
64392ALID, PACKAGE TRAY TRIM, LH
BLACK,TRIM2#
BLACK,TRIM2#
DARK BLUE,TRIM8#
64711MAT, LUGGAGE COMPARTMENT FLOOR
BLACK,TRIM2#; BLACK,TRIM2#,8#
BLACK,TRIM2#
64711ACLIP(FOR LUGGAGE COMPARTMENT FLOOR MAT)
BLACK,TRIM2#; BLACK,TRIM2#,8#
BLACK,TRIM2#
64749ECOVER, LUGGAGE COMPARTMENT DOOR STRIKER
BLACK,TRIM2#; BLACK,TRIM2#,8#
BLACK,TRIM2#
7401ARMREST & VISOR
6777112050WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12050
6777117020WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-17020
6777130070WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-30070
6792117030RETAINER, FRONT DOOR SCUFF PLATE
main67921-17030
6792195501RETAINER, FRONT DOOR SCUFF PLATE
main67921-95501
9016740022
main90167-40022
9033301004C0
main90333-01004C0
9046710161
main90467-10161
9095901413
main90959-01413
9356055016
main93560-55016
36 parts on this diagram · 1 diagram in section
PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota MR2
This section contains 36 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota MR2. Key components include: FLOOR PAN & LOWER BACK PANEL, BOARD, REAR FLOOR, NO.1, PAD, REAR FLOOR SILENCER, NO.1, PAD, REAR FLOOR SILENCER, NO.2, PAD, REAR FLOOR SILENCER.
