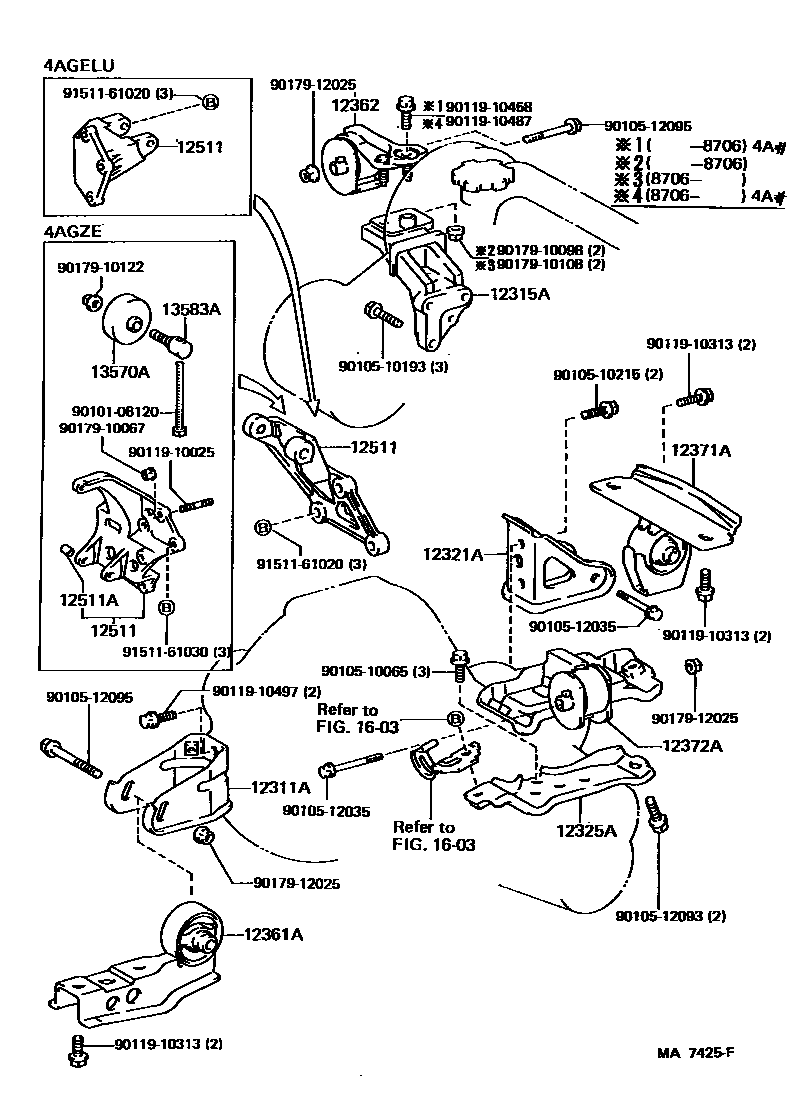

Toyota MR2 — MOUNTING

0001 1 0002 1

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-15100i3ALU,4AGELU..AW1#198406-198912

main12311-16030i4AGZE..AW11198608-198912

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-15050i3ALU..AW10198406-198912

main12315-16010i4AG#..AW11198406-198709

main12315-16040i4AG#..AW11198709-198912

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-15030i3ALU,4AGELU..AW1#..5F198406-198912

main12321-15040i3ALU,4AGELU..AW1#..4FC198406-198608

main12321-16050i3ALU..AW10..5F198608-198803

main12321-16060i4AGZE..AW11..5F198608-198912

main12321-16070i4AGZE..AW11..4FC198608-198912

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-15030i3ALU,4AGELU..AW1#..5F198406-198912

main12325-15040i3ALU,4AGELU..AW1#..4FC198406-198608

main12325-16020i3ALU,4AGELU..AW1#..4FC198608-198912

main12325-16030i4AGZE..AW11..5F198608-198912

main12325-16050i4AGZE..AW11..4FC198608-198912

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-15110i3ALU,4AGELU..AW1#198406-198608

main12361-15111i3ALU,4AG#..AW1#198608-198912

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-15040i4AGELU..AW11..4FC198406-198608

main12362-15061i4AGELU..AW11..5F198406-198608

main12362-15080i3ALU..AW10198406-198608

main12362-16030i3ALU,4AGELU..AW1#..5F198608-198709

sub90119-10487

main12362-16031i3ALU,4AGELU..AW1#..5F198709-198912

main12362-16040i3ALU,4AGELU..AW1#..4FC198608-198803

main12362-16041i3ALU,4AGELU..AW1#..4FC198803-198912

main12362-16050i4AGZE..AW11..5F198608-198709

sub90119-10487

main12362-16051i4AGZE..AW11..5F198709-198912

main12362-16060i4AGZE..AW11..4FC198608-198709

main12362-16061i4AGZE..AW11..4FC198709-198912

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-15140i3ALU,4AGELU..AW1#..5F198406-198503

main12371-15141i3ALU,4AGELU..AW1#..5F198503-198608

main12371-15150i3ALU,4AGELU..AW1#..4FC198406-198608

main12371-16070i4AGZE..AW11..5F198608-198912

main12371-16080i3ALU,4AGELU..AW1#..5F198608-198912

main12371-16090i3ALU,4AG#..AW1#..4FC198608-198912

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-15070i3ALU,4AGELU..AW1#..5F198406-198912

main12372-15080i3ALU,4AGELU..AW1#..4FC198406-198508

main12372-15081i3ALU,4AGELU..AW1#..4FC198508-198608

main12372-16030i3ALU,4AGELU..AW1#..4FC198608-198912

main12372-16040i4AGZE..AW11..5F198608-198912

main12372-16050i4AGZE..AW11..4FC198608-198912

12511BRACKET, ALTERNATOR, NO.1

main12511-16021i3ALU..AW10198406-198912

main12511-16030i4AGELU..AW11198406-198912

main12511-16050i4AGZE..AW11198608-198912

12511ABUSH, ALTERNATOR BRACKET

main90387-10101i4AGZE..AW11198608-198912

13570AIDLER ASSY, V-RIBBED, NO.1

main13570-16010i4AGZE..AW11198608-198912

13583ASHAFT, IDLER, V-RIBBED BELT

main13583-16010i4AGZE..AW11198608-198912

1603

9010108120

main90101-08120

9010510065

main90105-10065

9010510193

main90105-10193

9010510215

main90105-10215

9010512035

main90105-12035

9010512093

main90105-12093

9010512095

main90105-12095

9011910025

main90119-10025

9011910313

main90119-10313

9011910458

main90119-10458

9011910487

main90119-10487

9011910497

main90119-10497

9017910067

main90179-10067

9017910098

main90179-10098

9017910108

main90179-10108

9017910122

main90179-10122

9017912025

main90179-12025

9151161020

main91511-61020

9151161030

main91511-61030

32 parts on this diagram · 2 diagrams in section
