Toyota MR2 — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
DARK BLUE,TRIM8#
BLACK,TRIM2#
BLACK,TRIM2#
87816SPRING, INNER REAR VIEW MIRROR
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
BLACK,202
SUPER RED 3,3J6
DARK TURQUOISE MICA,742
SUPER WHITE 3,043
BL.GRAY AMC,187
CRYSTAL PEARL MICA 2,047
BLACK,2CE ,202
10TH ANNIVERSARY,SILVER M.,199
BEIGE M.M.,4N3
DK.GREEN MICA,6M1
TURQUOISE M.M.,746
STRONG BLUE M.,8B6
BLUEISH GRAY ARGENTU,187
CRYSTAL PEARL MICA 2,047
BLACK,2CE ,202
ORANGE MM,3L1
BEIGE M.M.,4N3
TURQUOISE M.M.,746
STRONG BLUE M,8B6
PURPLISH BLUE M.M.,8K9
87911GASKET, OUTER REAR VIEW MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
10TH ANNIVERSARY,BLACK,202
SUPER RED 2,3J6
DARK TURQUOISE MICA,742
SUPER WHITE 3,043
SUPER BRIGHT YELLOW,567
CRYSTAL PEARL MICA 2,047
BLACK,2CE ,202
BL.GRAY AMC,187
10TH ANNIVERSARY,SILVER M.,199
BEIGE M.M.,4N3
DK.GREEN MICA,6M1
TURQUOISE M.M.,746
BLACK,202
SUPER RED 2,3J6
CRYSTAL PEARL MICA 2,047
BLACK,2CE ,202
SUPER RED 2,3E5
ORANGE MM,3L1
BEIGE M.M.,4N3
TURQUOISE M.M.,746
STRONG BLUE M,8B6
PURPLISH BLUE M.M.,8K9
87941GASKET, OUTER REAR VIEW MIRROR, LH
9014950051
main90149-50051
9015950016
main90159-50016
9017906097
main90179-06097

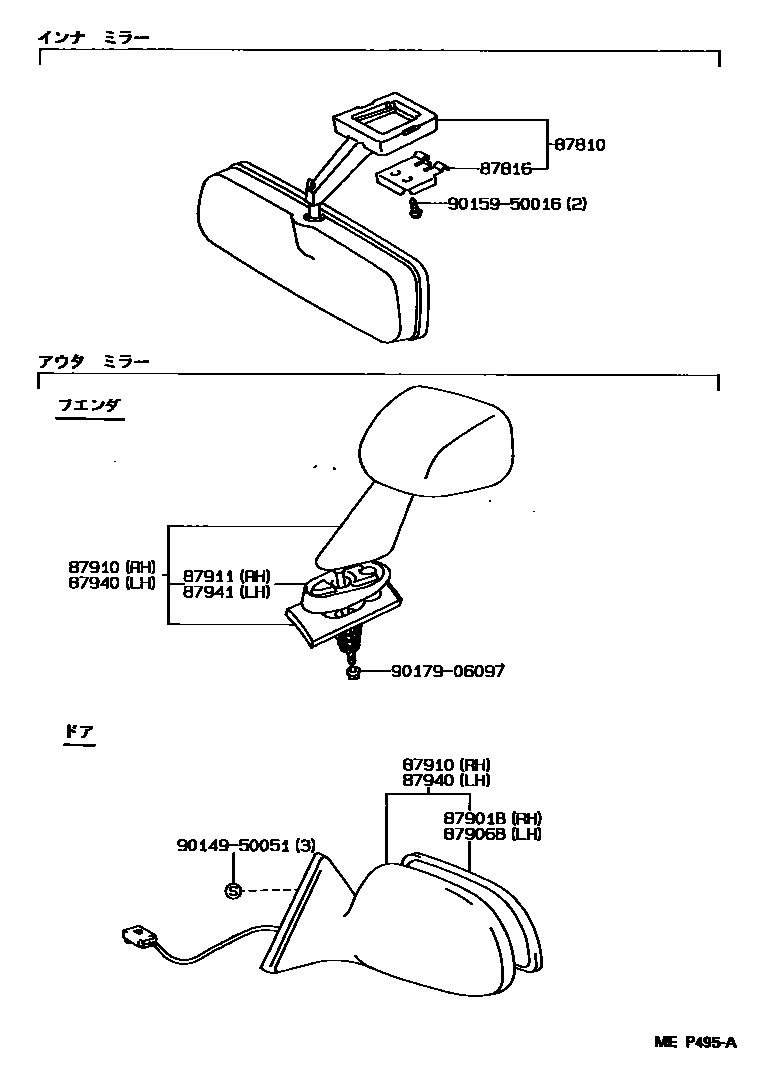

11 parts on this diagram · 1 diagram in section
