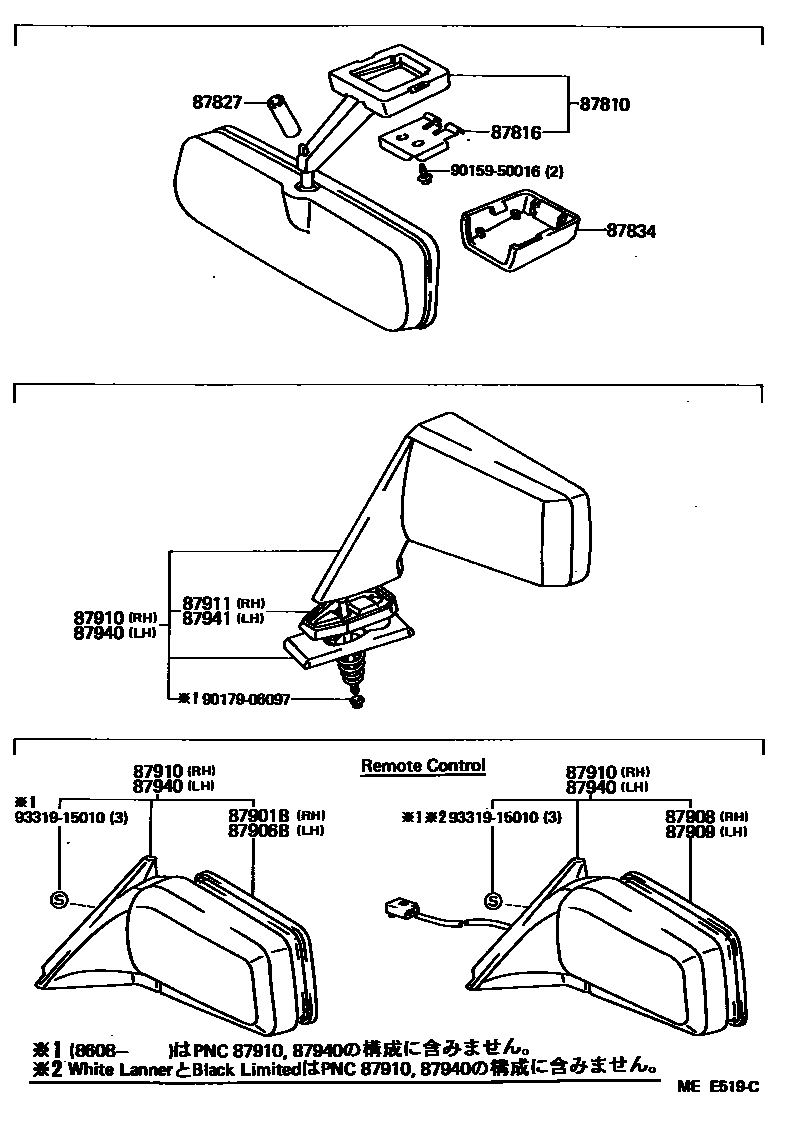

Toyota MR2 — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
BLACK,BLACK
BLACK,BLACK
DARK BLUE,TRIM8#
87816SPRING, INNER REAR VIEW MIRROR
87827ABSORBER, INNER REAR VIEW MIRROR
L=44
L=47
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
BLACK,BLACK
BLACK,TRIM2#
LIGHT GRAY,GRAY
DARK BLUE,TRIM8#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87908ACTUATOR ASSY, OUTER MIRROR, RH
87909ACTUATOR ASSY, OUTER MIRROR, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
DOOR
DOOR,*RCM
WHITE LANNER
BLACK LIMITED,BLACK METALLIC
SUPER RED(3E5),SUPER RED
GRAY METALLIC,167 ,21E
MEDIUM BLUE MICA(8E3),MEDIUM BLUE MICA
DARK GREEN-M(28B),DARK GREEN METALLIC
SUPER WHITE,040
GRAY METALLIC,167 ,21E
BLUE MICA,8E3
RED MICA,3H4
WHITE,28J
SUPER WHITE,043
SUPER EDITION,BLACKISH BLUE MICA(8,8E4
FENDER
87911GASKET, OUTER REAR VIEW MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
DOOR,*RCM
WHITE LANNER
BLACK LIMITED,BLACK METALLIC
SUPER RED(3E5),SUPER RED
GRAY METALLIC,GRAY METALLIC,167 ,21E
MEDIUM BLUE MICA(8E3),MEDIUM BLUE MICA
DARK GREEN-M(28B),DARK GREEN METALLIC
SUPER WHITE(040),SUPER WHITE
WHITE,WHITE,041 ,2Z9
GRAY METALLIC,167 ,21E
BLUE MICA,8E3
RED MICA,3H4
WHITE,28J
SUPER WHITE 3,043
SUPER EDITION,BLACKISH BLUE MICA(8,8E4
FENDER
87941GASKET, OUTER REAR VIEW MIRROR, LH
9015950016
main90159-50016
9017906097
main90179-06097
9331915010
main93319-15010
15 parts on this diagram · 1 diagram in section
