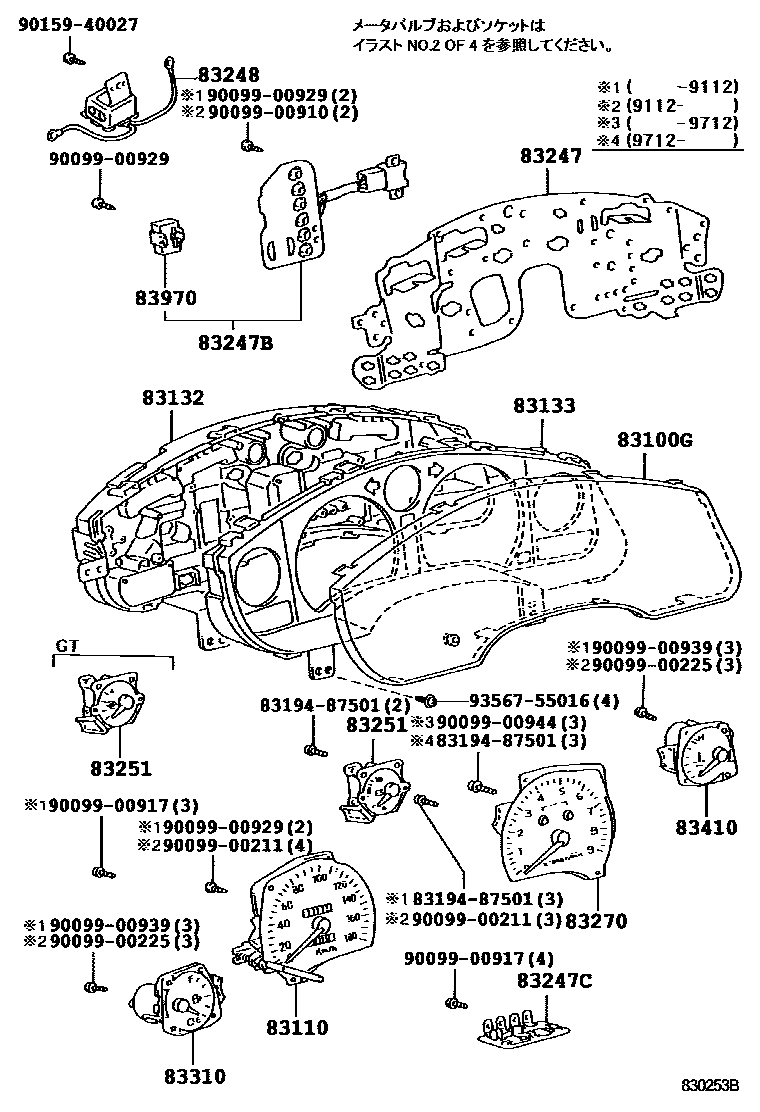

Toyota MR2 — METER

0001 1 0002 1����� & ���� 0003 1 0004 1 0005 1

83100GGLASS, COMBINATION METER

main83138-17030iSW20198912

83110SPEEDOMETER ASSY

main83110-17110iSW20198912-199112

main83110-17111iSW20199112-199712

main83110-17112iSW20199712

main83110-17230iSW20..GT199112-199712

83132CASE, COMBINATION METER

main83132-17170iSW20..5F198912-199112

main83132-17190iSW20..4FC198912-199112

main83132-17410iSW20..5F199112-199311

main83132-17430iSW20..4FC199112-199311

main83132-17690iSW20..5F199311-199606

main83132-17691iSW20..5F199606

main83132-17710iSW20..4FC199311-199606

main83132-17711iSW20..4FC199606

83133PLATE, COMBINATION METER, NO.1

main83133-17050iSW20..5F198912-199112

main83133-17070iSW20..4FC198912-199112

main83133-17170iSW20..5F199112-199311

main83133-17190iSW20..4FC199112-199311

main83133-17210iSW20..GT199112-199311

main83133-17350iSW20..5F199311

main83133-17370iSW20..4FC199311

main83133-17390iSW20..GT199311-199712

83247PLATE, METER CIRCUIT

main83247-17490iSW20..5F..G198912-199112

main83247-17510iSW20..GT198912-199112

main83247-17590iSW20..4FC198912-199112

main83247-1R010iSW20..5F..G199112-199606

main83247-1R011iSW20..5F..G199606-199712

main83247-1R012iSW20..5F..G199712

main83247-1R030iSW20..4FC199112-199606

main83247-1R031iSW20..4FC199606-199712

main83247-1R032iSW20..4FC199712

main83247-1R050iSW20..GT199112-199606

main83247-1R051iSW20..GT199606-199712

main83247-1R052iSW20..GT199712

main83247-1R070iSW20..GT199112-199606

main83247-1R071iSW20..GT199606-199712

83247BPLATE, METER CIRCUIT, NO.2

main83247-17930iSW20..4FC198912-199112

main83247-1R510iSW20..4FC199112-199311

main83247-1R610iSW20..4FC199311

83247CPLATE, MATER CIRCUIT, NO.3

main83247-1B400iSW20..GT198912-199311

main83247-1R550iSW20..GT199311

83248CHIME, SPEED WARNING

main86640-87005iSW20198912-199112

83251METER, VOLTAGE

main83251-17050iSW20..G198912-199712

main83251-17051iSW20..G199712

main83251-17070iSW20..GT198912-199311

main83251-17090iSW20..GT199311-199712

main83251-17091iSW20..GT199712

83270TACHOMETER ASSY, ENGINE

main83242-17290iSW20..5F198912-199112

main83242-17310iSW20..4FC198912-199112

main83242-17590iSW20..5F199112-199311

main83242-17610iSW20..4FC199112-199311

main83242-17890iSW20..5F199311-199712

main83242-17891iSW20..GT199712

main83242-1R010iSW20..4FC199311-199712

main83242-1R011iSW20..4FC199712

main83242-1R160iSW20..5F..G199712

83310GAGE ASSY, FUEL RECEIVER

main83243-17050iSW20198912-199112

main83243-17090iSW20199112-199712

main83243-17091iSW20199712

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-17050iSW20198912-199112

main83244-17090iSW20199112-199712

main83244-17091iSW20199712

83970BUZZER ASSY, REVERSE WARNING

main83970-20010iSW20..4FC198912

8319487501

main83194-87501

9009900211

main90099-00211

9009900225

main90099-00225

9009900910

main90099-00910

9009900917

main90099-00917

9009900929

main90099-00929

9009900939

main90099-00939

9009900944

main90099-00944

9015940027

main90159-40027

9356755016

main93567-55016

23 parts on this diagram · 5 diagrams in section
