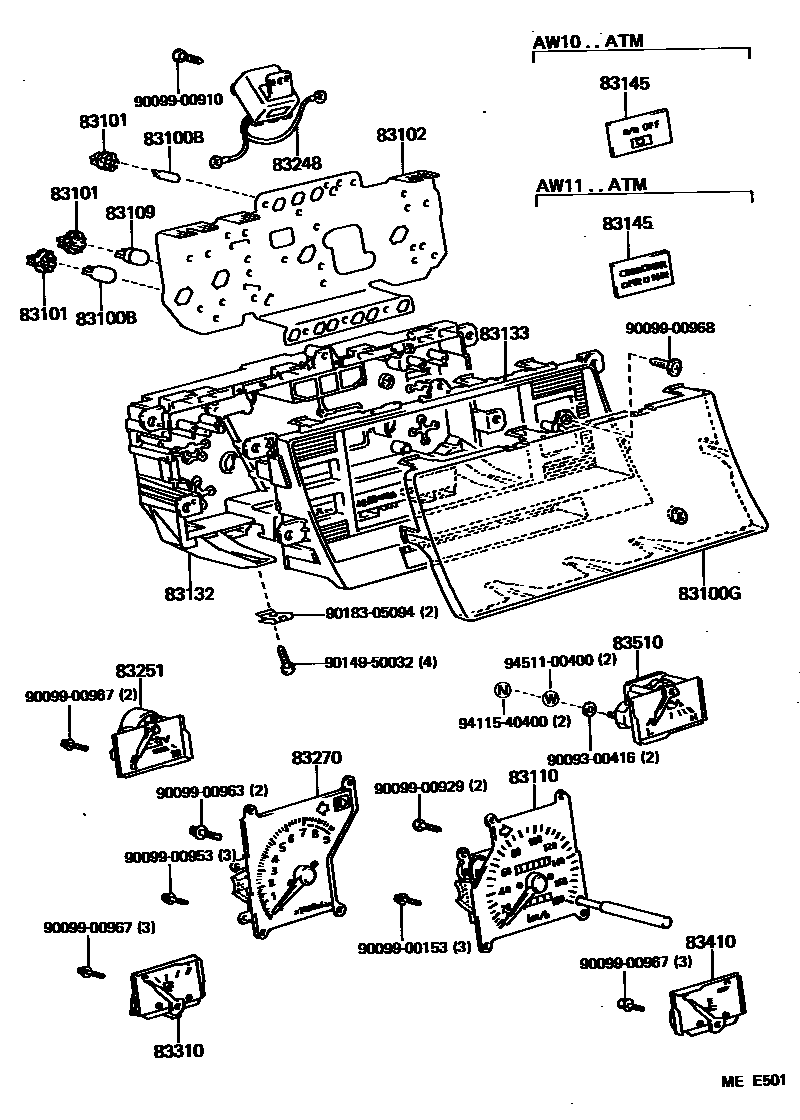

Toyota MR2 — METER

0001 1 0002 1

83100BBULB, COMBINATION METER, NO.1

main90981-11018×5iAW11198803-198912

main99132-12034×4iAW1#198406-198803

83100GGLASS, COMBINATION METER

main83138-17010iAW1#198406-198912

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×7iAW1#198406-198803

12V 3.4W

main83101-14040×4iAW11198803-198912

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-17010iAW10..5F198406-198912

main83247-17030iAW10..4FC198406-198912

main83247-17050iAW11..5F..TWC198406-198912

main83247-17070iAW11..4FC..TWC198406-198912

main83247-17390iAW11..5F..SPC198608-198912

main83247-17410iAW11..4FC..SPC198608-198912

83109BULB, COMBINATION METER, NO.2

main83109-24030×3iAW1#198406-198803

83110SPEEDOMETER ASSY

main83110-17020iAW11198406-198608

main83110-17021iAW11198608-198912

main83110-17100iAW10198406-198608

main83110-17101iAW10198608-198912

83132CASE, COMBINATION METER

main83132-17010iAW10198406-198912

main83132-17030iAW11198406-198912

83133PLATE, COMBINATION METER, NO.1

main83133-17010iAW1#198406-198912

83145LENS, METER, NO.1

main83247-17210iAW10..4FC198406-198608

main83247-17230iAW11..4FC198406-198608

main83247-17310iAW10..4FC198608-198912

main83247-17330iAW11..4FC198608-198912

83248CHIME, SPEED WARNING

main86640-17020iAW1#198406-198912

83251METER, VOLTAGE

main83251-17010iAW11..5F198406-198608

main83251-17030iAW11..5F198608-198912

83270TACHOMETER ASSY, ENGINE

main83242-17010iAW10198406-198608

main83242-17030iAW11198406-198608

main83242-17130iAW10198608-198912

main83242-17150iAW11..TWC198608-198912

main83242-17230iAW11..SPC198608-198912

83310GAGE ASSY, FUEL RECEIVER

main83243-17010iAW1#198406-198608

main83243-17030iAW1#198608-198912

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-17010iAW1#198406-198608

main83244-17030iAW1#198608-198912

83510GAGE ASSY, OIL PRESSURE RECEIVER

main83246-17010iAW11198406-198608

main83246-17030iAW11198608-198912

9009300416

main90093-00416

9009900153

main90099-00153

9009900910

main90099-00910

9009900929

main90099-00929

9009900953

main90099-00953

9009900963

main90099-00963

9009900967

main90099-00967

9009900968

main90099-00968

9014950032

main90149-50032

9018305094

main90183-05094

9411540400

main94115-40400

9451100400

main94511-00400

27 parts on this diagram · 2 diagrams in section
