Toyota MR2 — MAT & CARPET

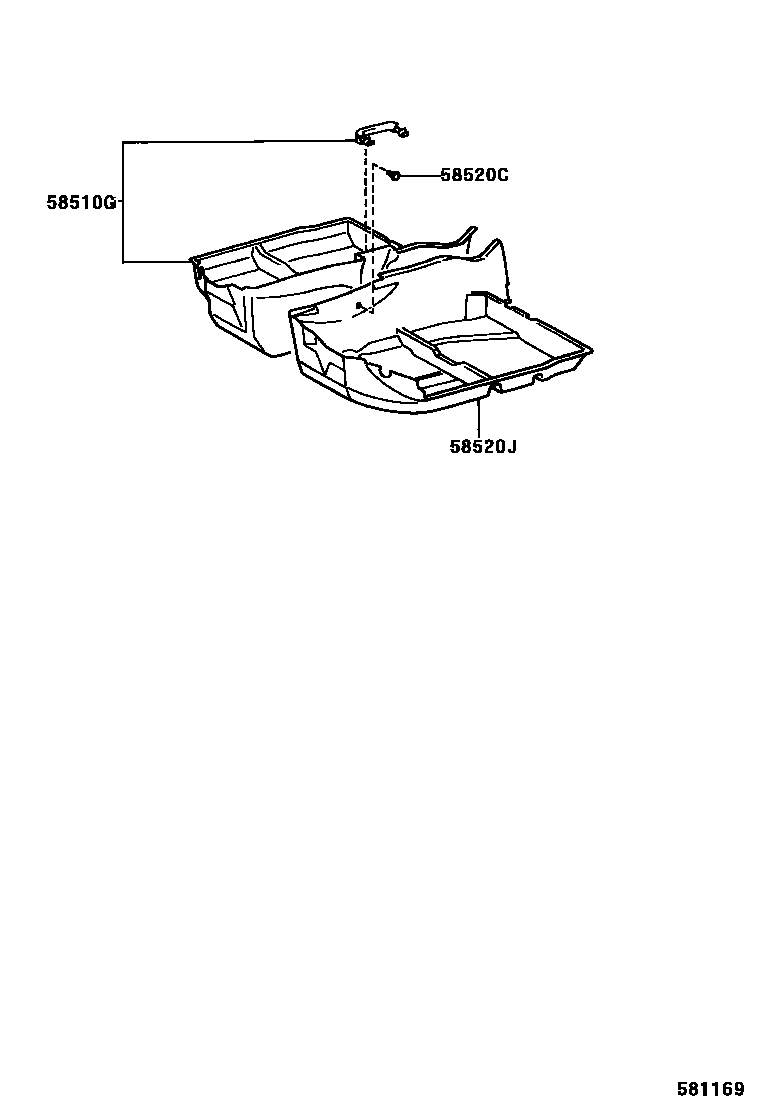

Parts diagram

58510GCARPET ASSY, FLOOR, FRONT RH

main58510-17120-01i199112-199311

main58510-17120-04i198912-199112

DARK BLUE,TRIM8#

main58510-17120-C0i199311-199501

BLACK,TRIM2#

main58510-17121-C1i199501-199908

BLACK,TRIM2#

main58510-17150-C0i199112-199311

main58510-17150-C1i199311-199501

main58510-17151-C2i199501-199908

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06052-01×2i198912-199311

BLACK,TRIM2#

main90467-06052-04×2i198912-199112

DARK BLUE,TRIM8#

main90467-06052-22×2i199311

BLACK,TRIM2#

58520JCARPET ASSY, FLOOR, FRONT LH

main58520-17090-01i199112-199303

main58520-17090-04i198912-199112

main58520-17120-01i198912-199112

main58520-17120-04i198912-199112

DARK BLUE,TRIM8#

main58520-17130-01i199303-199311

main58520-17130-C0i199311-199501

BLACK,TRIM2#

main58520-17131-C1i199501

BLACK,TRIM2#

main58520-17140-01i199303-199311

main58520-17140-C0i199311-199501

main58520-17141-C1i199501

3 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota MR2

This section contains 3 genuine Toyota parts for the MAT & CARPET system of the Toyota MR2. Key components include: CARPET ASSY, FLOOR, FRONT RH, CLIP(FOR FRONT FLOOR CARPET), CARPET ASSY, FLOOR, FRONT LH.
