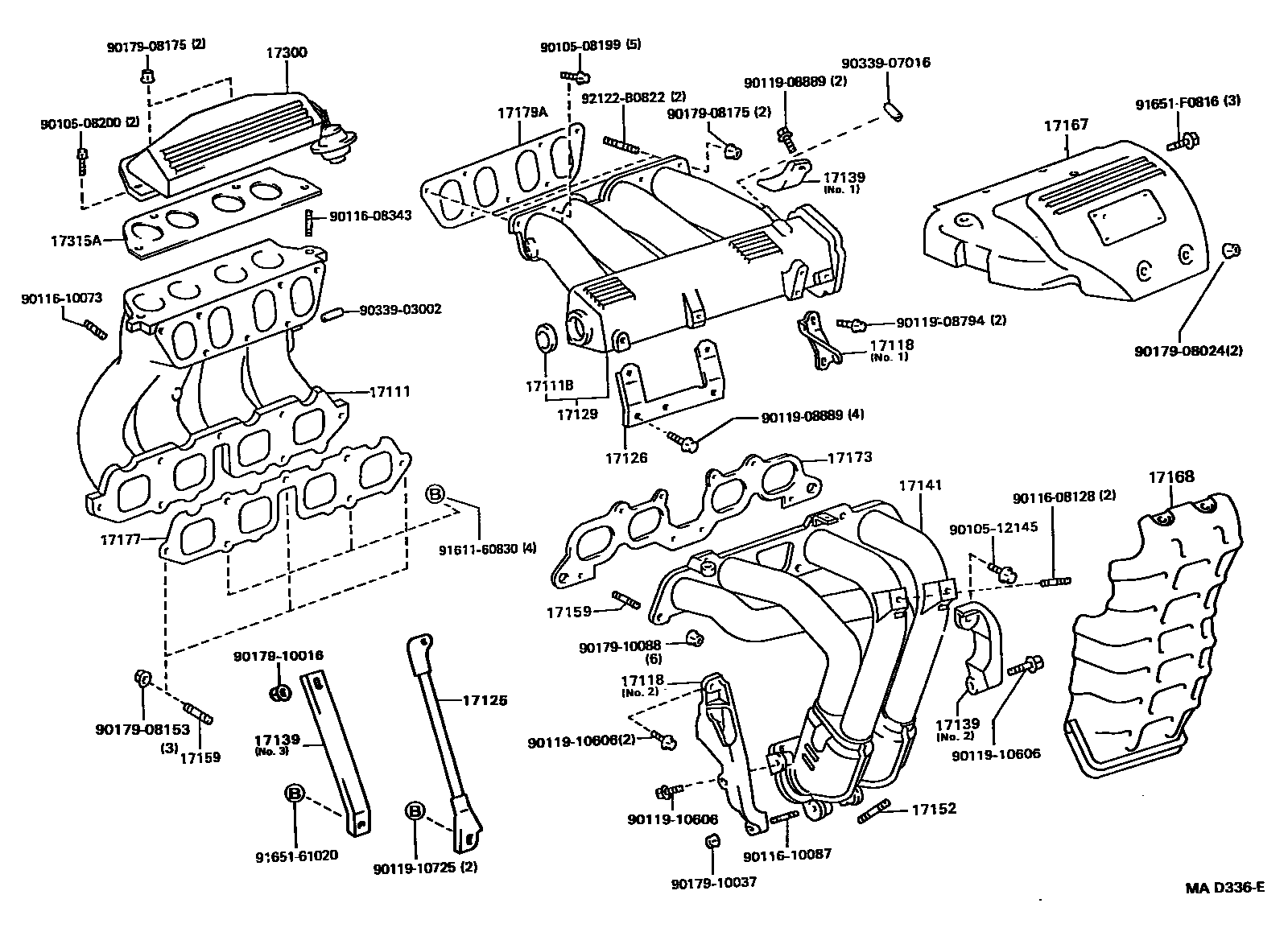

Toyota MR2 — MANIFOLD
17111MANIFOLD, INTAKE
17111BPLUG, NO.2
17118STAY, MANIFOLD
17125STAY, SURGE TANK, NO.1
17126STAY, SURGE TANK, NO.2
17129TANK, INTAKE AIR SURGE
17139STAY, MANIFOLD, NO.2
17141MANIFOLD, EXHAUST
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE MANIFOLD
INTAKE MANIFOLD
EXHAUST MANIFOLD
EXHAUST MANIFOLD
EX.MANIFOLD,NO.2
EXHAUST MANIFOLD
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17179AGASKET, INTAKE MANIFOLD, NO.2
17300VALVE ASSY, INTAKE AIR CONTROL
17315AGASKET, INTAKE AIR CONTROL VALVE
9010508199
main90105-08199
9010508200
main90105-08200
9010512145
main90105-12145
9011608128
main90116-08128
9011608343
main90116-08343
9011610073
main90116-10073
9011610087
main90116-10087
9011908794
main90119-08794
9011908889
main90119-08889
9011910606
main90119-10606
9011910725
main90119-10725
9017908024
main90179-08024
9017908153
main90179-08153
9017908175
main90179-08175
9017910016
main90179-10016
9017910037
main90179-10037
9017910088
main90179-10088
9033903002
main90339-03002
9033907016
main90339-07016
9161160830
main91611-60830
9165161020
main91651-61020
91651F0816
main91651-F0816
92122B0822
main92122-B0822
40 parts on this diagram · 5 diagrams in section
MANIFOLD for Toyota MR2
This section contains 133 genuine Toyota parts for the MANIFOLD system of the Toyota MR2. Key components include: GASKET KIT, TURBOCHARGER, GASKET, TURBO OIL INLET, GASKET, TURBO OIL OUTLET, NO.1, PIPE, TURBO OIL OUTLET, HOSE, TURBO OIL OUTLET.
