Toyota MR2 — LOCK CYLINDER SET

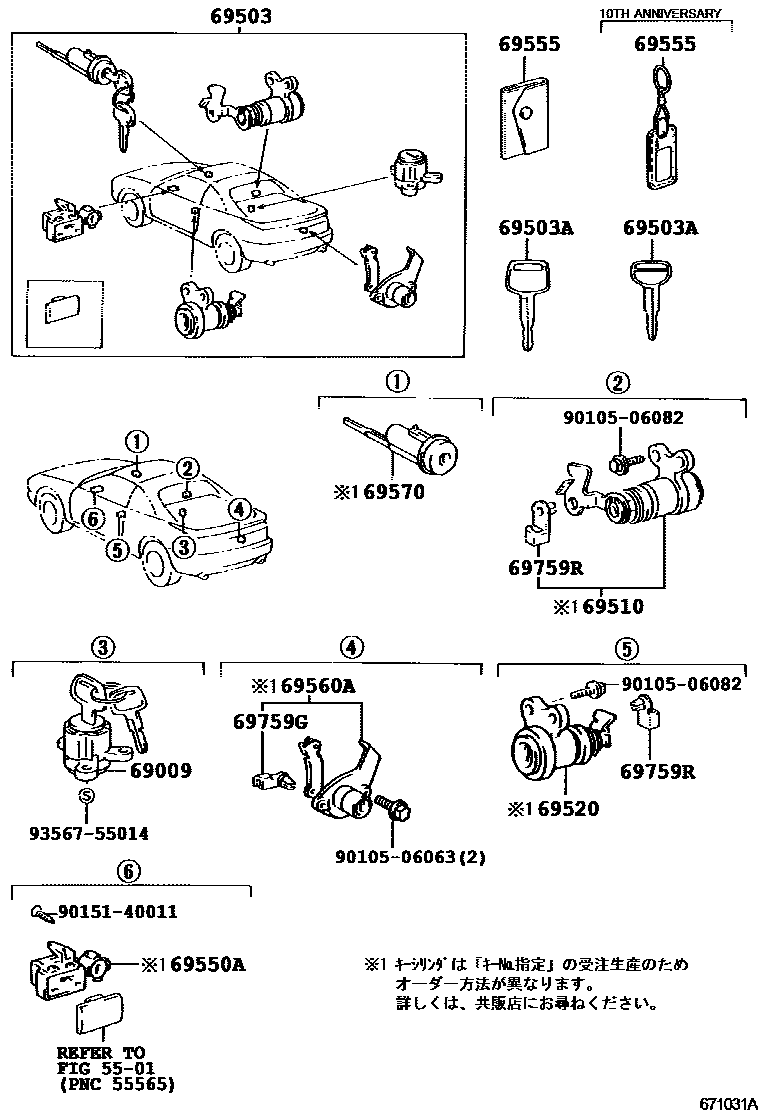

Parts diagram

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

69009CYLINDER & KEY SET, DECK COMPARTMENT LOCK

main69009-17010i198912-199112

69503CYLINDER SET, LOCK

main69005-17171i198912-199112

main69005-17400i199112-199311

main69005-17401i199311

69503AKEY, BLANK

main90999-00163i198912

main90999-00164i198912

main90999-00165i198912

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-17042i198912

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-17042i198912

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-17031i199311

69555COVER, KEY

main69555-17020i198912-199606

main69555-17030i199501-199504

10TH ANNIVERSARY

69560ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main69560-17091i198912-199112

main69560-17110i199112-199311

main69560-17130i199311

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-17041i198912-199311

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-24090i198912

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-20080i198912-199112

ORANGE

main69759-20090i198912-199112

PINK

main69759-22080i199112

main69759-22090i199112

9010506063

main90105-06063

9010506082

main90105-06082

9015140011

main90151-40011

9356755014

main93567-55014

16 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota MR2

This section contains 16 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota MR2. Key components include: INSTRUMENT PANEL & GLOVE COMPARTMENT, CYLINDER & KEY SET, DECK COMPARTMENT LOCK, CYLINDER SET, LOCK, KEY, BLANK, CYLINDER ASSY, FRONT DOOR LOCK, RH.
