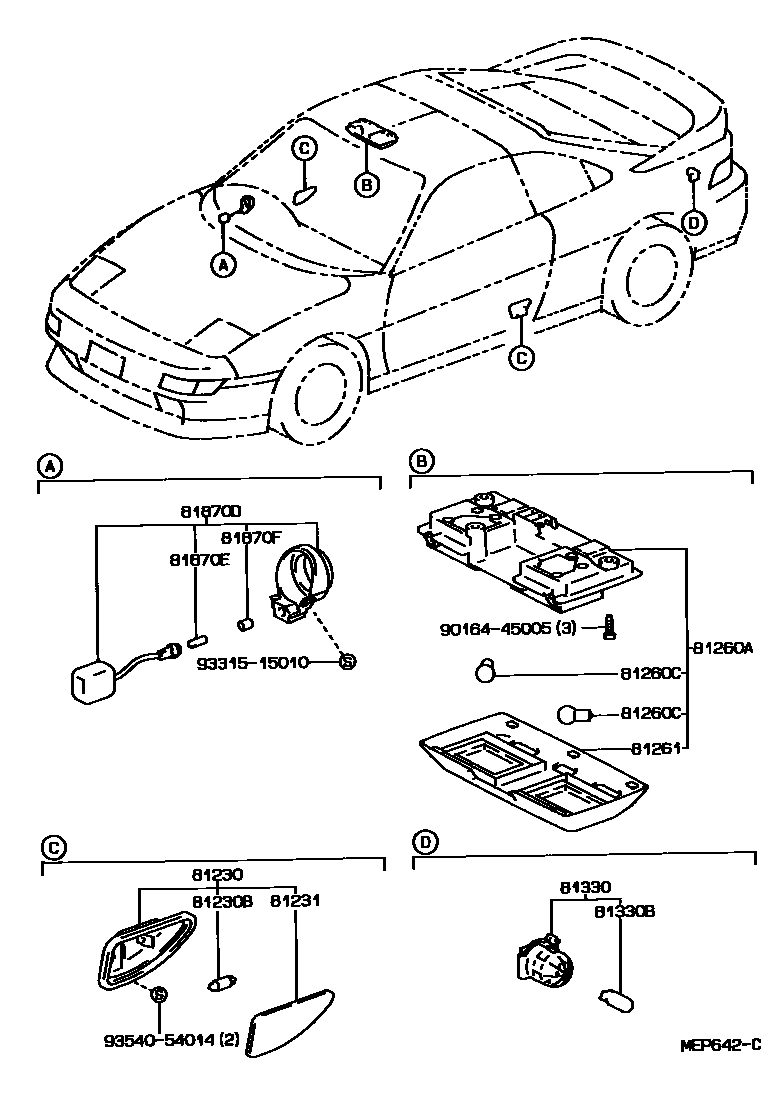

Toyota MR2 — INTERIOR LAMP
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
81260ALAMP ASSY, MAP
BLACK,TRIM2#
DARK BLUE,TRIM8#
GRAY,TRIM2#
BLUE GRAY,TRIM2#
81260CBULB(FOR MAP LAMP)
81261LENS AND COVER, MAP LAMP
BLACK,TRIM2#
DARK BLUE,TRIM8#
GRAY,TRIM2#
BLUE GRAY,TRIM2#
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
81870FCAP, KEY CYLINDER LAMP BULB
9016445005
main90164-45005
9331515010
main93315-15010
9354054014
main93540-54014
14 parts on this diagram · 1 diagram in section
INTERIOR LAMP for Toyota MR2
This section contains 14 genuine Toyota parts for the INTERIOR LAMP system of the Toyota MR2. Key components include: LAMP ASSY, COURTESY, BULB(FOR COURTESY LAMP), LENS, COURTESY LAMP, LAMP ASSY, MAP, BULB(FOR MAP LAMP).
