Toyota MR2 — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-22080-01i198406-198608

BLACK,BLACK

main81240-22081-01i198608-198803

BLACK,BLACK

main81240-22081-11i198808-198912

BLACK,TRIM2#

main81240-22081-24i198803-198912

DARK BLUE,TRIM8#

81240BBULB, ROOM LAMP, NO.1

main99132-12100i198406-198803

81241LENS, ROOM LAMP, NO.1

main81241-20060i198406-198912

81870DLAMP ASSY, KEY CYLINDER

main81850-17010i198406-198912

81870EBULB, KEY CYLINDER LAMP

main81856-17010i198406-198912

9016445005

main90164-45005

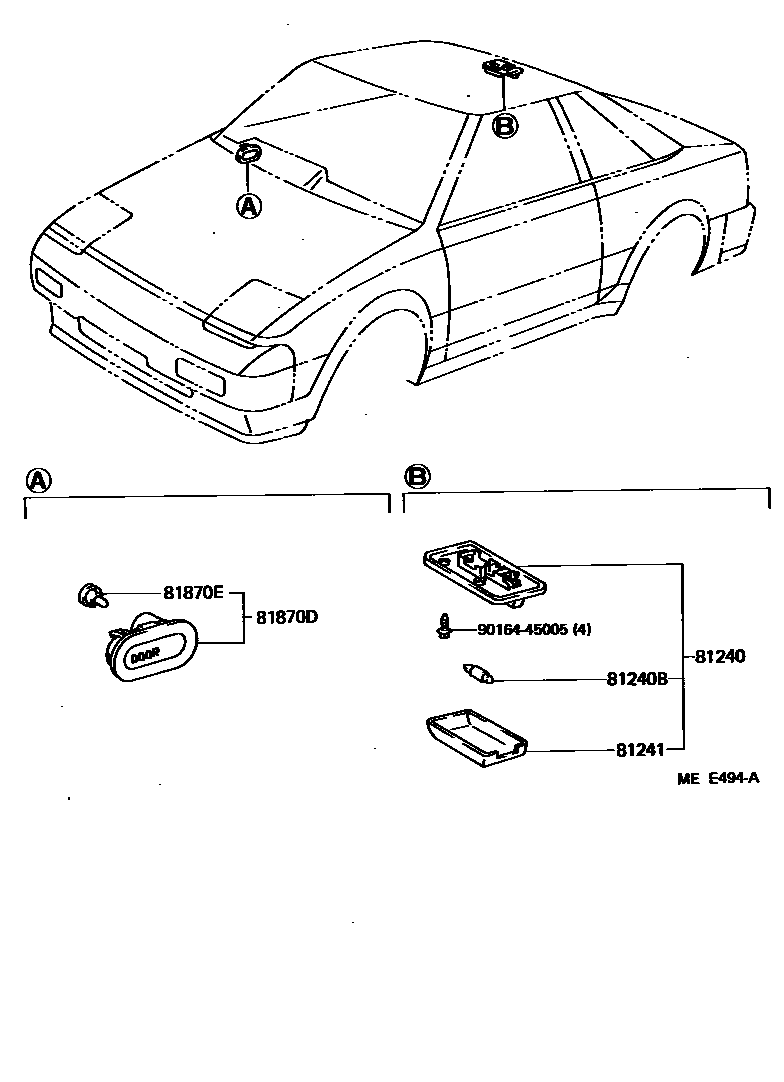

6 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota MR2

This section contains 6 genuine Toyota parts for the INTERIOR LAMP system of the Toyota MR2. Key components include: LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1, LAMP ASSY, KEY CYLINDER, BULB, KEY CYLINDER LAMP.
