Toyota MR2 — IGNITION COIL & SPARK PLUG / GLOW PLUG

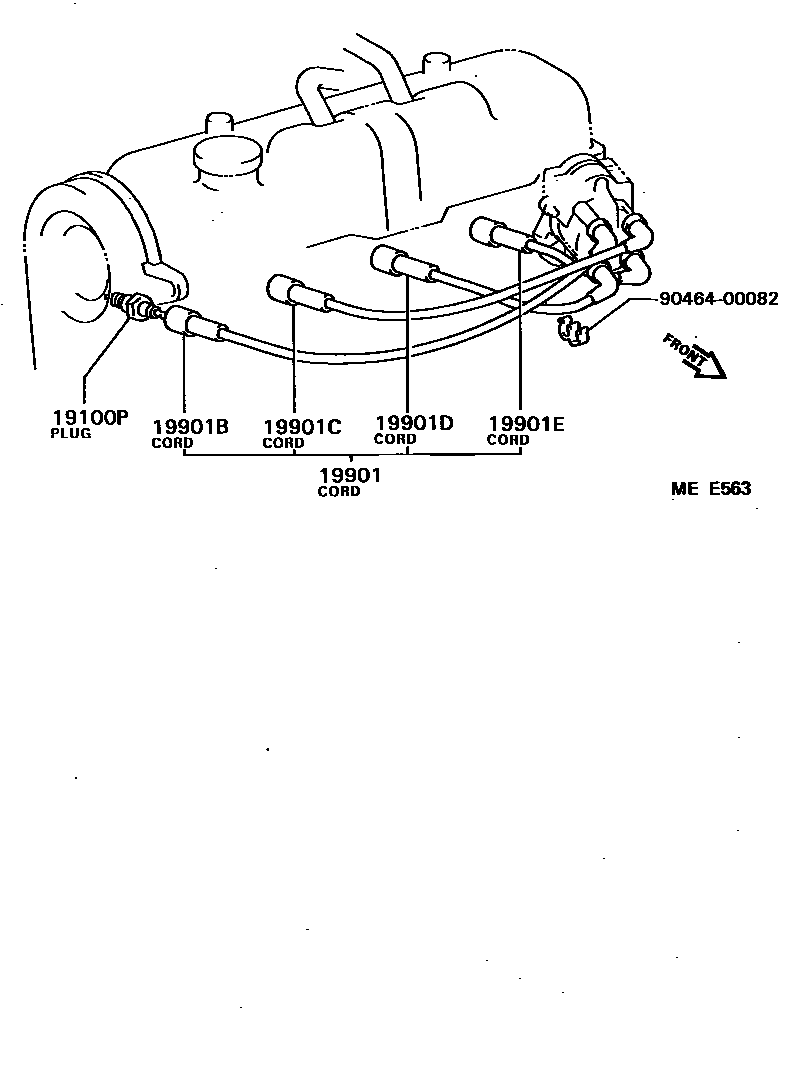

Parts diagram

19100PPLUG, SPARK

main90919-01085×4i198406-198803

main90919-01121×4i198803-198912

main90919-01122×4i198803-198912

main90919-01127×4i198803-198912

main90919-01128×4i198803-198912

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21350i198406-198709

main90919-21391i198608-198912

main90919-21411i198709-198912

main90919-22105i198406-198912

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-12356i198406-198912

main90919-12550i198406-198709

main90919-12686i198608-198912

main90919-12733i198709-198912

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-12357i198406-198912

main90919-12551i198406-198709

main90919-12687i198608-198912

main90919-12734i198709-198912

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-12358i198406-198912

main90919-12552i198406-198709

main90919-12688i198608-198912

main90919-12735i198709-198912

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-12359i198406-198912

main90919-12553i198406-198709

main90919-12689i198608-198912

main90919-12736i198709-198912

9046400082

main90464-00082

7 parts on this diagram · 2 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota MR2

This section contains 12 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota MR2. Key components include: PLUG, SPARK, COIL ASSY, IGNITION, CORD SET, COIL & SPARK, W/RESISTIVE, CORD, COIL RESISTIVE, CORD, SPARK PLUG RESISTIVE, NO.1.
