Toyota MR2HORN

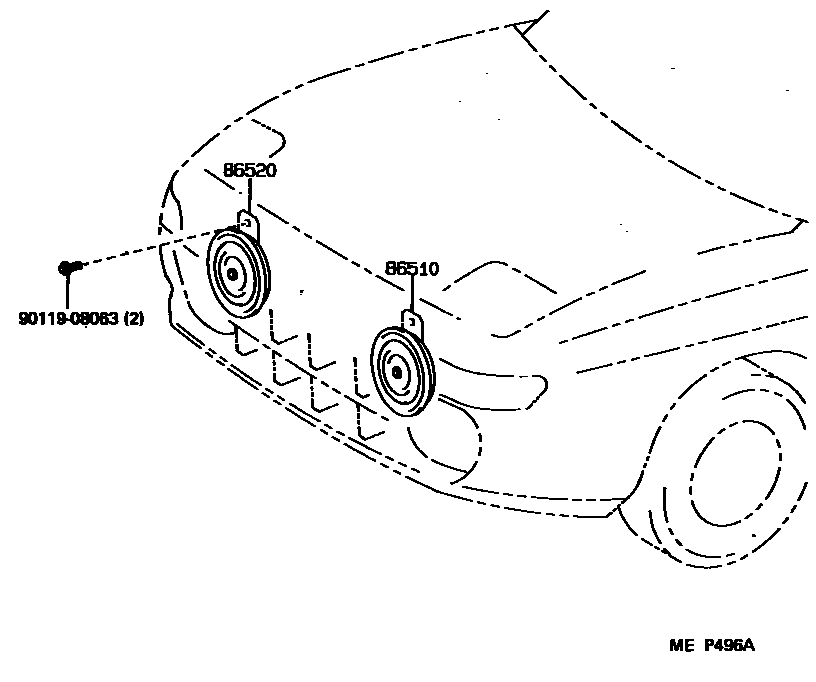

Parts diagram
86510HORN ASSY, HIGH PITCHED
main86510-17110i198912-199311
main86510-17120i199311
86520HORN ASSY, LOW PITCHED
main86520-17110i198912-199311
main86520-17120i199311
9011908063

3 parts on this diagram · 1 diagram in section

HORN for Toyota MR2

This section contains 3 genuine Toyota parts for the HORN system of the Toyota MR2. Key components include: HORN ASSY, HIGH PITCHED, HORN ASSY, LOW PITCHED.
