Toyota MR2 — HEATING & AIR CONDITIONING - SET

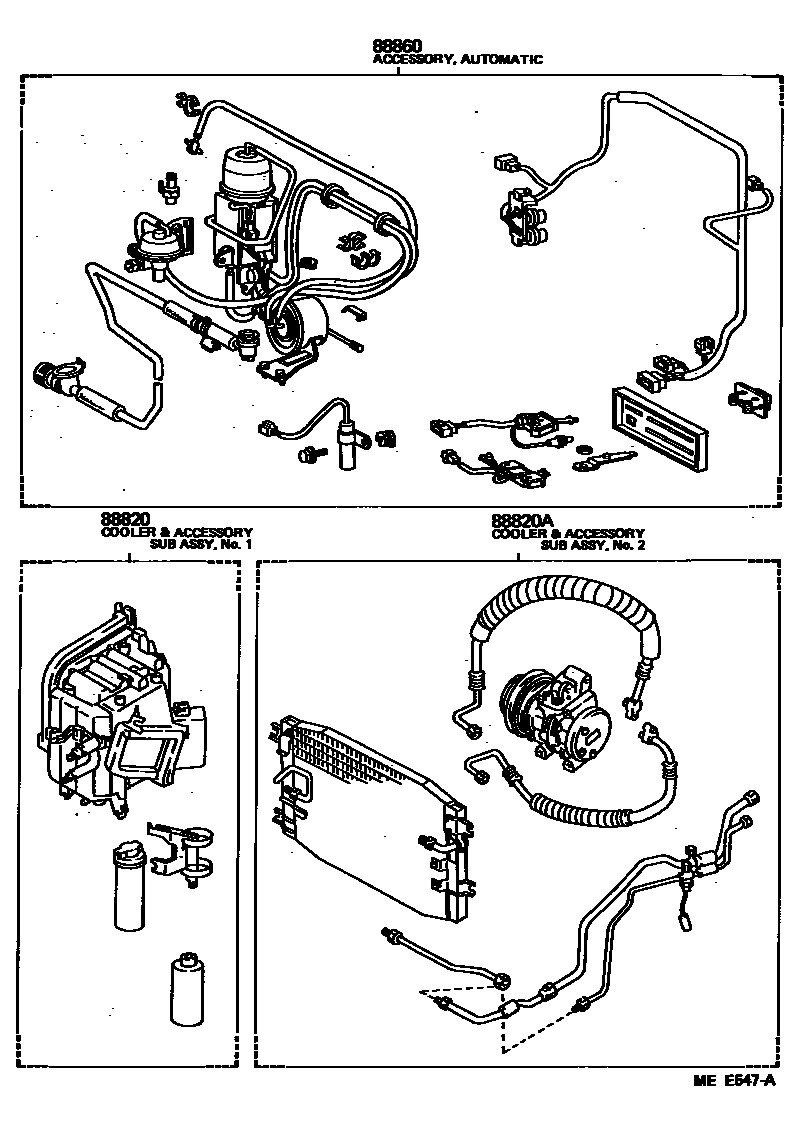

Parts diagram

88820AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1

main88820-17010i198406-198803

88820AAIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2

main88830-17010i198406-198608

main88830-17020i198406-198608

main88830-17030i198406-198411

main88830-17031i198411-198608

main88830-17040i198406-198608

main88830-17050i198608-198912

main88830-17060i198608-198912

main88830-17070i198608-198912

main88830-17080i198608-198912

main88830-17090i198608-198912

main88830-17100i198608-198912

88860ACCESSORY ASSY, AUTOMATIC AIR CONDITIONER

main88860-17010i198411-198501

main88860-17011i198411-198501

main88860-17012i198501-198504

main88860-17013i198504-198608

main88860-17020i198501-198504

main88860-17021i198504-198608

main88860-17030i198608-198912

main88860-17040i198608-198912

main88860-17050i198608-198912

3 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - SET for Toyota MR2

This section contains 3 genuine Toyota parts for the HEATING & AIR CONDITIONING - SET system of the Toyota MR2. Key components include: AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1, AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2, ACCESSORY ASSY, AUTOMATIC AIR CONDITIONER.
