Toyota MR2 — HEATING & AIR CONDITIONING - COMPRESSOR

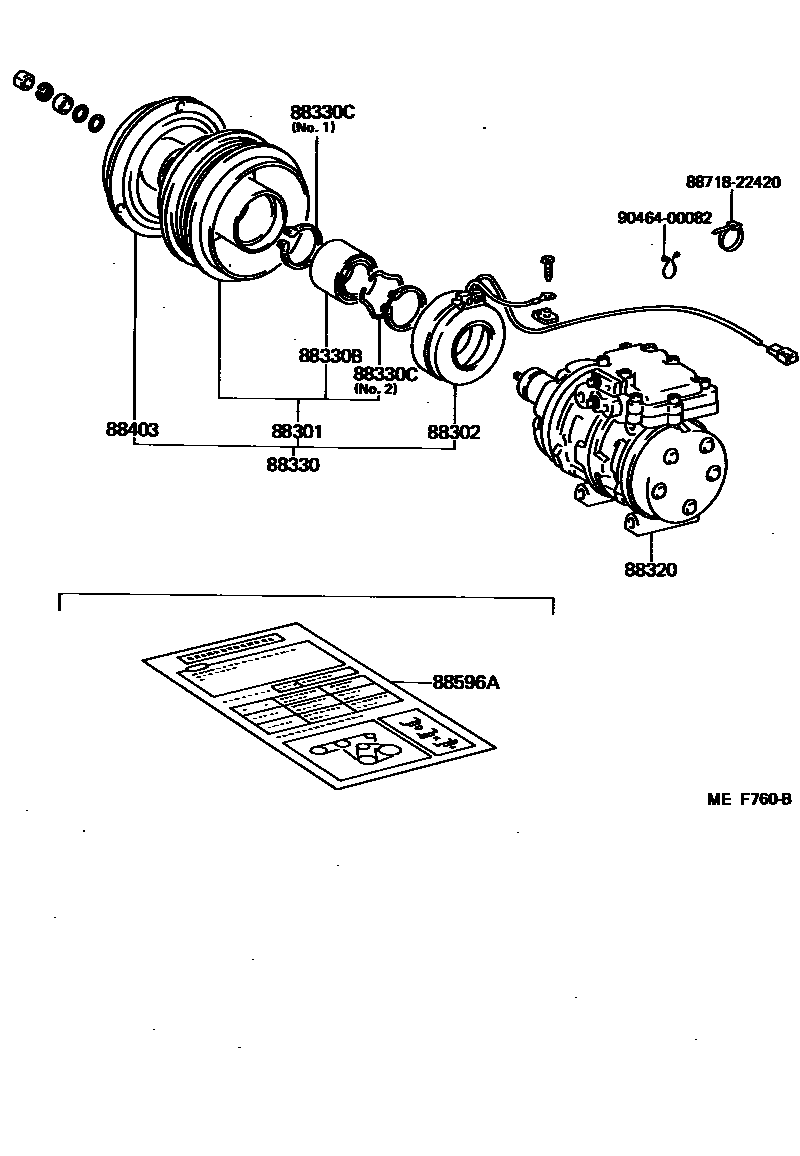

Parts diagram
88301ROTOR SUB-ASSY, MAGNET CLUTCH
main88412-12120i198608-198912
main88412-14030i198406-198803
main88412-22050i198406-198912
88302STATOR SUB-ASSY, MAGNET CLUTCH
main88411-16010i198406-198803
main88411-17010i198406-198912
main88411-17020i198608-198912
88320COMPRESSOR ASSY, COOLER
main88320-17020i198406-198608
main88320-17030i198406-198608
main88320-17050i198608-198912
main88320-17060i198608-198912
main88320-17070i198608-198912
88330CLUTCH ASSY, MAGNET
main88410-16010i198406-198912
main88410-17010i198406-198912
main88410-17020i198608-198912
88330BBEARING, MAGNET CLUTCH
main90099-10133i198803-198912
main90099-10135i198406-198803
88330CRING, SNAP (FOR MAGNET CLUTCH)
main90099-07094i198406-198803
NO.2
main90099-07114i198406-198803
NO.1
main90099-07127i198608-198803
NO.2
88403HUB SUB-ASSY, MAGNET CLUTCH
main88403-12030i198803-198912
main88403-14030i198406-198803
main88403-14040i198406-198803
88596APLATE, CAUTION
main88356-12010i198608-198912
main88596-20010i198508-198608
8871822420PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-22420
9046400082
main90464-00082

10 parts on this diagram · 2 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota MR2

This section contains 25 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota MR2. Key components include: V-BELT, ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, COMPRESSOR ASSY, COOLER, CLUTCH ASSY, MAGNET.
