Toyota MR2 — HEADLAMP

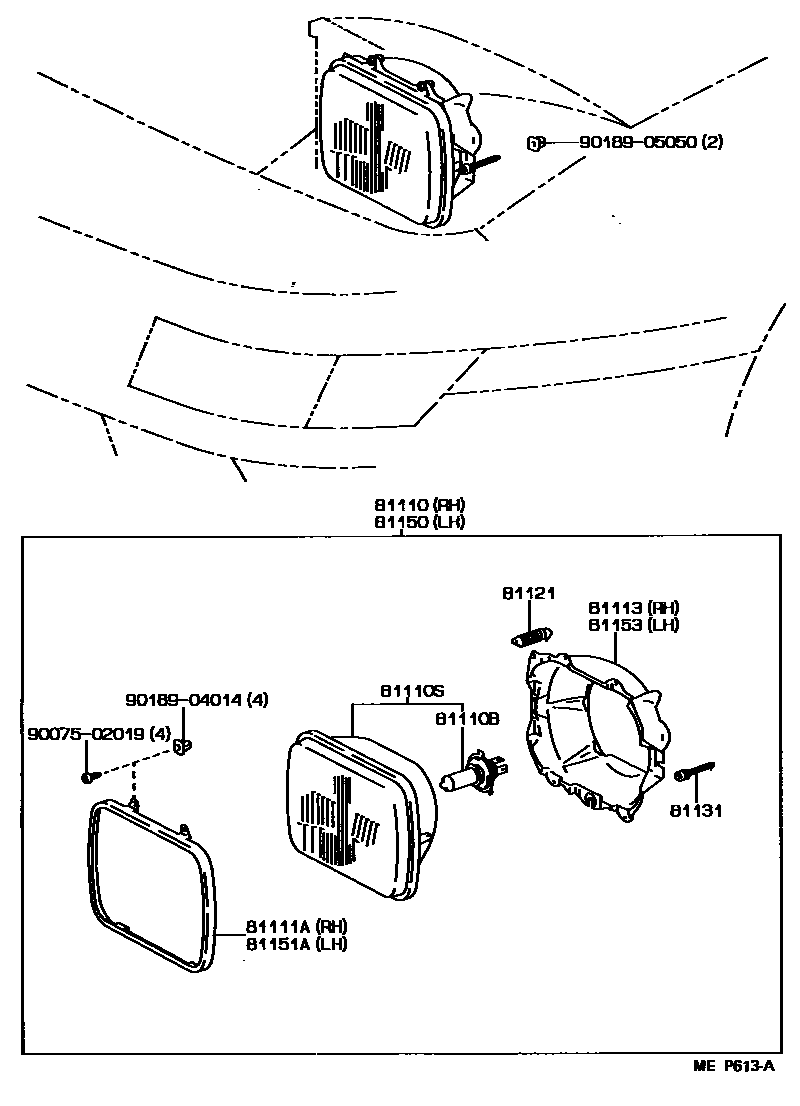

Parts diagram

81110HEADLAMP ASSY, RH

main81110-17110i198912-199712

main81110-17150i199712

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015×2i198912-199712

main90981-22004×2i199712

81110SSEALED BEAM UNIT, NO.1

main90981-04030×2i198912-199712

main90981-04045×2i199712

81111ARING, SEALED BEAM RETAINING, NO.1 RH

main81111-2B360i198912

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-2B360i198912

81121SPRING, HEADLAMP TENSION

main90075-25501×2i198912

81131SCREW, HEADLAMP ADJUSTING

main81131-17010×4i198912

81150HEADLAMP ASSY, LH

main81150-17110i198912-199712

main81150-17150i199712

81151ARING, SEALED BEAM RETAINING, NO.1 LH

main81111-2B360i198912

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81153-2B360i198912

9007502019

main90075-02019

9018904014

main90189-04014

9018905050

main90189-05050

13 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota MR2

This section contains 13 genuine Toyota parts for the HEADLAMP system of the Toyota MR2. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), SEALED BEAM UNIT, NO.1, RING, SEALED BEAM RETAINING, NO.1 RH, RING, SEALED BEAM MOUNTING, NO.1 RH.
