Toyota MR2 — FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-29135i198406-198912

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2i198406-198912

45047END SUB-ASSY, TIE ROD, LH

main45046-29135i198406-198912

45501HOUSING SUB-ASSY, STEERING RACK

main45501-17010i198406-198801

main45501-17011i198801-198912

45501ASEAL, TYPE T OIL(FOR STEERING RACK HOUSING)

main90311-15001i198406-198905

main90311-15002i198905-198912

45503END SUB-ASSY, STEERING RACK

main45503-19065×2i198406-198801

main45503-19066×2i198801-198912

45510GEAR ASSY, STEERING

main45510-17010i198406-198801

main45510-17011i198801-198912

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-17010i198406-198912

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-17010i198406-198912

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-17010i198406-198912

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-12080i198406-198912

45521RACK, STEERING

main45521-17010i198406-198912

45522BUSH, STEERING RACK

main45522-17010i198406-198912

45523GUIDE, RACK(FOR STEERING GEAR)

main45523-12040i198912-198912

main45523-17010i198406-198411

main45523-17011i198411-198503

main45523-17012i198503-198912

45523ASPRING(FOR STEERING GEAR RACK GUIDE)

main90501-25013i198406-198912

main90501-26038i198912-198912

45523CSPACER(FOR RACK GUIDE)

main90560-23003i198406-198411

45523DSEAT, RACK GUIDE

main44277-17010i198406-198912

45524CAP, STEERING RACK GUIDE SPRING

main45524-16010i198406-198912

45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)

main90179-36001i198406-198912

45535BOOT, STEERING RACK, NO.1

main45535-12011i198406-198912

45535ACLAMP(FOR STEERING RACK BOOT)

main90460-41001i198406-198801

NO.2 BOOT

main90460-43001i198406-198803

NO.1 BOOT

main90461-10273i198803-198912

NO.1 BOOT

main90949-01453i198801-198803

NO.2 BOOT

45535BCLIP(FOR STEERING RACK BOOT)

main90467-18003×2i198406-198912

45536BOOT, STEERING RACK, NO.2

main45536-12011i198406-198801

main45536-17010i198801-198912

45537AWASHER, CLAW(FOR STEERING RACK END LOCK)

main90214-14002×2i198406-198801

main90214-14009×2i198801-198912

45541PINION, STEERING

main45541-17010i198406-198912

45541ABEARING, RADIAL BALL(FOR STEERING PINION UPPER)

main90363-15003i198406-198803

main90363-15015i198909-198912

45541BBEARING, RADIAL BALL(FOR STEERING PINION LOWER)

main90363-13001i198406-198803

main90363-13004i198909-198912

45545SCREW, PINION BEARING ADJUSTING

main45545-10010i198406-198912

45545ANUT(FOR PINION BEARING ADJUSTING SCREW)

main90179-38001i198406-198912

9011910247

main90119-10247

9017012193

main90170-12193

9326963020

main93269-63020

9538103020

main95381-03020

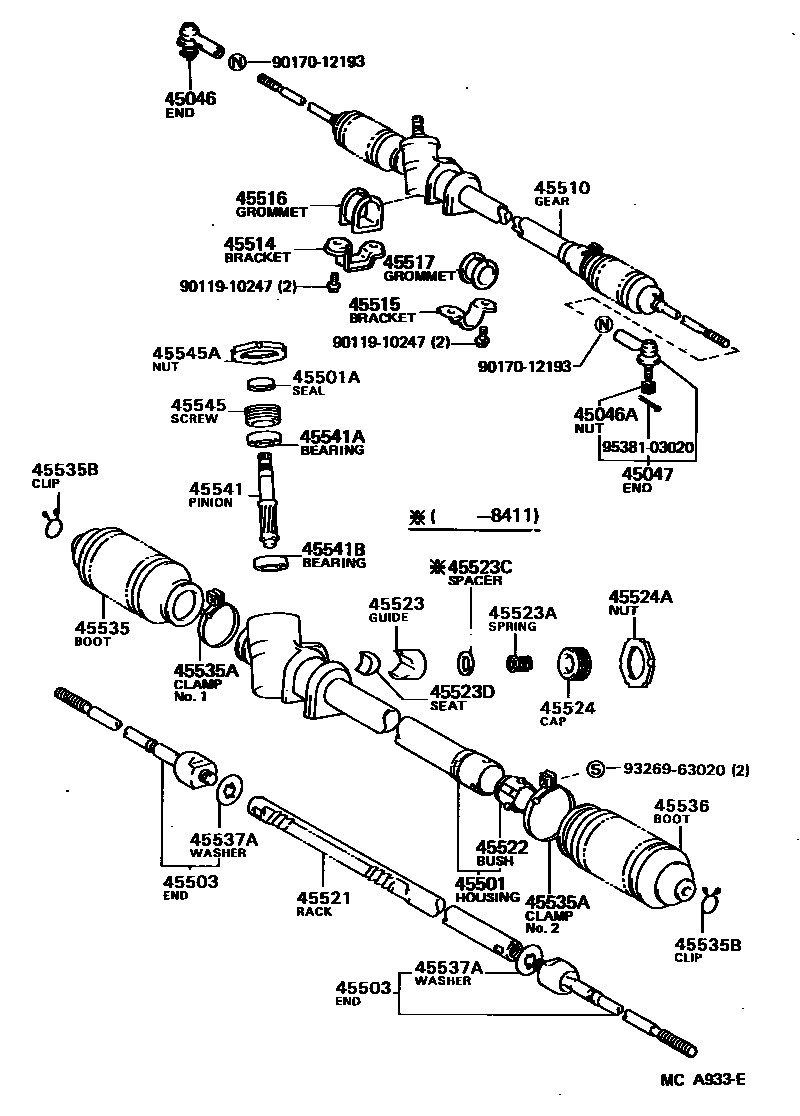

33 parts on this diagram · 1 diagram in section

FRONT STEERING GEAR & LINK for Toyota MR2

This section contains 33 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota MR2. Key components include: END SUB-ASSY, TIE ROD, RH, NUT, CASTLE(FOR TIE ROD END), END SUB-ASSY, TIE ROD, LH, HOUSING SUB-ASSY, STEERING RACK, SEAL, TYPE T OIL(FOR STEERING RACK HOUSING).
