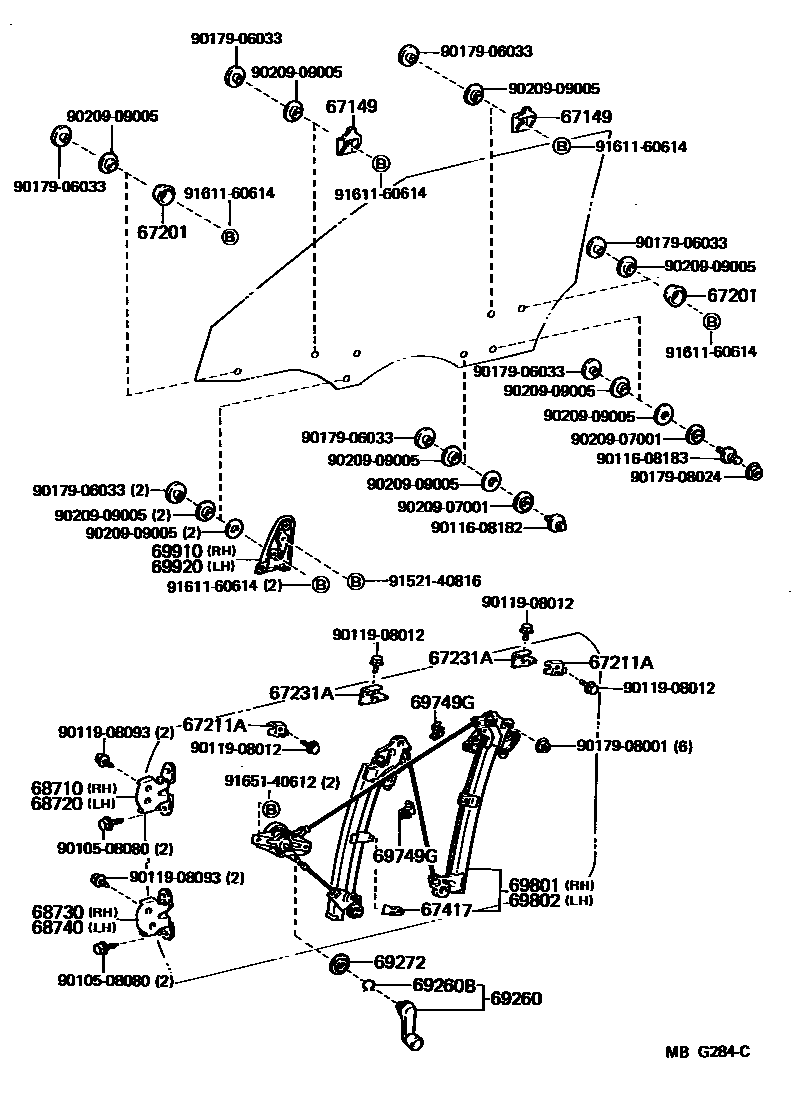

Toyota MR2 — FRONT DOOR WINDOW REGULATOR & HINGE

67149STABILIZER, FRONT DOOR GLASS

main68149-14010×4i198406-198912

67201STOPPER ASSY, DOOR GLASS(FOR FRONT DOOR)

main68147-14010×4i198406-198912

67211ASTOP, FRONT DOOR WINDOW, UPPER

main67211-17010×4i198406-198912

67231ASUPPORT, FRONT DOOR TRIM

main67231-14030×4i198406-198708

main67231-20030×4i198708-198912

67417SHOE, FRONT DOOR WINDOW REGULATOR WIRE

main67417-17010×2i198501-198912

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-17010i198406-198912

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-17010i198406-198912

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-17010i198406-198912

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-17010i198406-198912

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-01×2i198406-198803

BLACK,BLACK

main69260-10040-11×2i198808-198912

NEW BLACK,TRIM2#

main69260-10040-58×2i198709-198803

BLUE,DARK BLUE

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2i198406-198912

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-17010×2i198406-198608

main69268-17010-01×2i198608-198803

BLACK,BLACK

main69268-17010-11×2i198808-198912

BLACK,TRIM2#,8#

69749GCLAMP(FOR FRONT DOOR WINDOW REGULATOR)

main90467-09049×4i198406-198912

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-17030i198406-198508

W/POWER WINDOW

main69801-17031i198803-198912

main69810-17010i198406-198508

main69810-17011i198508-198912

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-17030i198406-198508

W/POWER WINDOW

main69802-17031i198508-198803

W/POWER WINDOW

main69820-17010i198406-198508

main69820-17011i198508-198912

69910BRACKET ASSY, FRONT DOOR GLASS, RH

main69951-17010i198406-198912

69920BRACKET ASSY, FRONT DOOR GLASS, LH

main69952-17010i198406-198912

9010508080

main90105-08080

9011608182

main90116-08182

9011608183

main90116-08183

9011908012

main90119-08012

9011908093

main90119-08093

9017906033

main90179-06033

9017908001

main90179-08001

9017908024

main90179-08024

9020907001

main90209-07001

9020909005

main90209-09005

9152140816

main91521-40816

9161160614

main91611-60614

9165140612

main91651-40612

30 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota MR2

This section contains 30 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota MR2. Key components include: STABILIZER, FRONT DOOR GLASS, STOPPER ASSY, DOOR GLASS(FOR FRONT DOOR), STOP, FRONT DOOR WINDOW, UPPER, SUPPORT, FRONT DOOR TRIM, SHOE, FRONT DOOR WINDOW REGULATOR WIRE.
