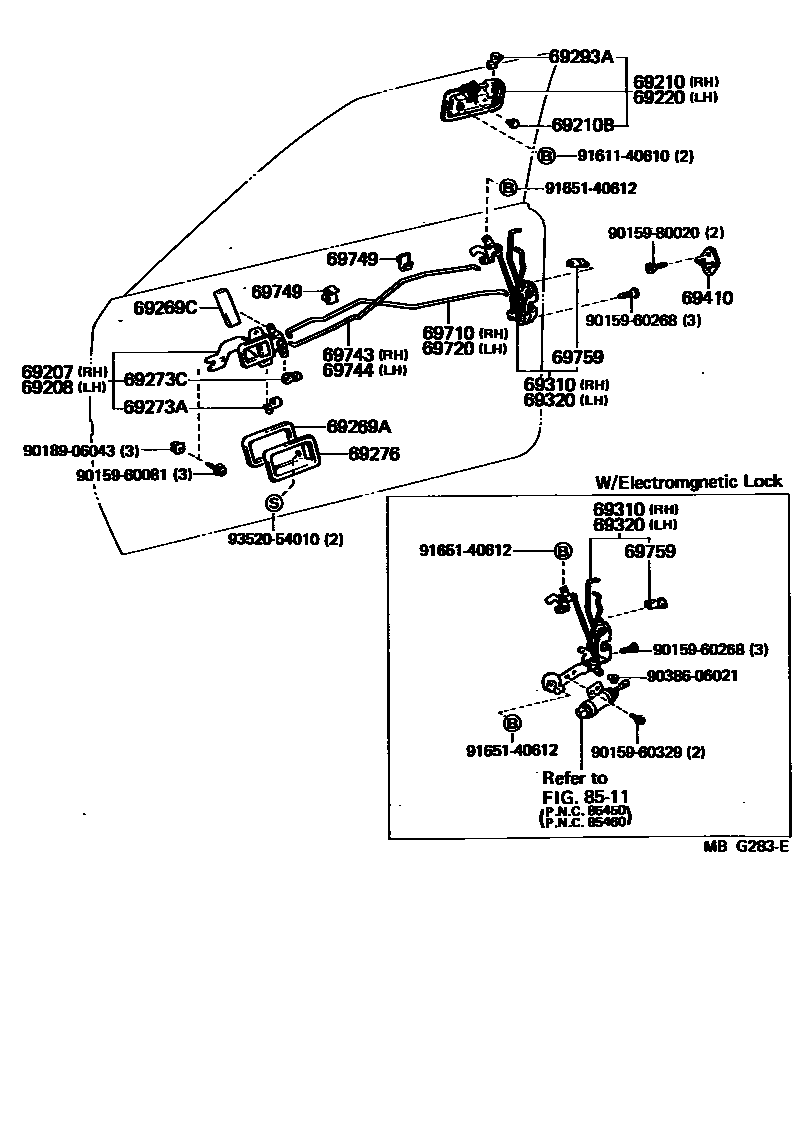

Toyota MR2 — FRONT DOOR LOCK & HANDLE
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,BLACK
BLACK,TRIM2#
BLUE,DARK BLUE
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#
BLACK,TRIM2#
DARK BLUE,TRIM8#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
RED MICA,3H4
GRAY M.,167
BLUE MICA,8E3
SUPER WHITE 3,043
SILVER M.,21E
WHITE,28J
SUPER EDITION,BLACKISH BLUE-MICA-M,BLACKISH BLUE M.,8E4
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
RED MICA,3H4
GRAY M.,167
BLUE MICA,8E3
SUPER WHITE 3,043
SILVER M.,21E
WHITE,28J
SUPER EDITION,BLACKISH BLUE-MICA-M,BLACKISH BLUE M.,8E4
69269ASEAL, DOOR INSIDE HANDLE NO.1(FOR FRONT DOOR)
COLD SPEC
COLD SPEC
69269CSEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR)
COLD SPEC
COLD SPEC
69273ASNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
LH
RH
69273CSNAP, DOOR INSIDE HANDLE LINK
RH
69276BEZEL, FRONT DOOR INSIDE HANDLE
BLACK,TRIM2#
BLUE,BLUE
BLACK,TRIM2#
DARK BLUE,TRIM8#
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
sub69310-17050
69320LOCK ASSY, FRONT DOOR, LH
sub69320-17050
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69743LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH
69744LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH
69749CLAMP, FRONT DOOR LOCK LINK
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
RH,LOCKING LINK
LH,LOCKING LINK
LH,OPEN LINK
RH,OPEN LING
8511
9015960081
main90159-60081
9015960268
main90159-60268
9015960329
main90159-60329
9015980020
main90159-80020
9018906043
main90189-06043
9038606021
main90386-06021
9161140610
main91611-40610
9165140612
main91651-40612
9352054010
main93520-54010
30 parts on this diagram · 1 diagram in section
