Toyota MR2 — FOG LAMP

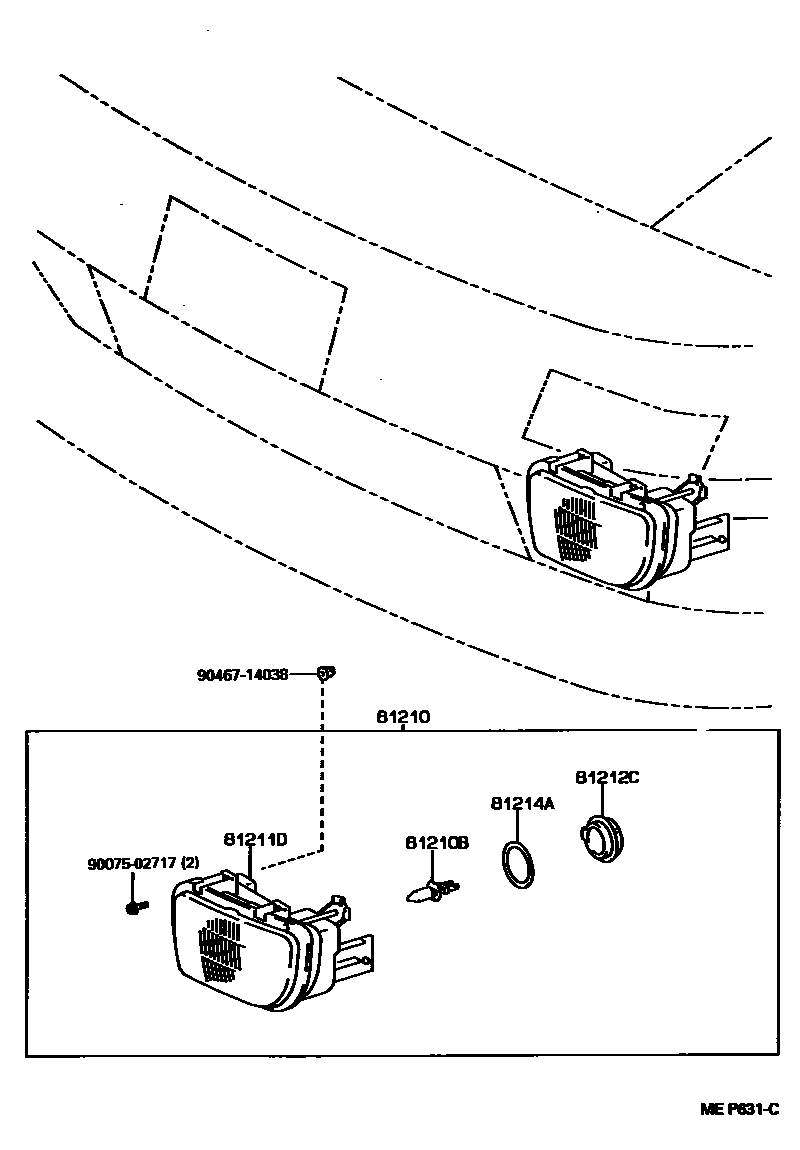

Parts diagram

81210LAMP ASSY, FOG

main81210-17010i198912-199112

main81210-17020i198912-199112

main81210-17030i199112-199311

main81210-17080i199311

main81220-17010i198912-199112

main81220-17020i198912-199112

main81220-17030i199112-199311

main81220-17080i199112

81210BBULB, FOG LAMP

main90981-13027×2i199003

main90981-13031×2i198912-199003

main90981-13048×2i198912

81211DLAMP UNIT, FOG LAMP

main81211-17010i198912-199112

main81211-17020i198912-199112

main81211-17030i199112-199311

main81211-17080i199311

main81221-17010i198912-199112

main81221-17020i198912-199112

main81221-17030i199112-199311

main81221-17080i199112

81212CCOVER, FOG LAMP

main81212-17020×2i198912-199112

main81212-17050×2i199112

81214APACKING, FOG LAMP BODY

main81214-17020×2i198912

9007502717

main90075-02717

9046714038

main90467-14038

7 parts on this diagram · 1 diagram in section

FOG LAMP for Toyota MR2

This section contains 7 genuine Toyota parts for the FOG LAMP system of the Toyota MR2. Key components include: LAMP ASSY, FOG, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, COVER, FOG LAMP, PACKING, FOG LAMP BODY.
