Toyota MR2 — EXHAUST GAS RECIRCULATION SYSTEM

1701MANIFOLD

→ Go to FIG 17-01

25601PIPE SUB-ASSY, EGR, NO.1

main25601-15030i198406-198912

25601HBOLT, UNION(FOR EGR PIPE,NO.1)

main90401-20003i198406-198912

25601JGASKET(FOR EGR PIPE, NO.1)

main90430-20005×2i198406-198912

25620VALVE ASSY, EGR

main25620-15230i198406-198912

25629GASKET, EGR VALVE ADAPTER

main25629-15011i198406-198912

25690MODULATOR ASSY, EGR VACUUM

main25870-15080i198406-198912

25690AHOSE(FOR EGR VACUUM MODULATOR)

main90445-11041i198406-198912

25691BRACKET, EGR VACUUM MODULATOR

main25691-15130i198406-198411

main25691-15131i198411-198507

main25691-15200i198507-198912

9017908153

main90179-08153

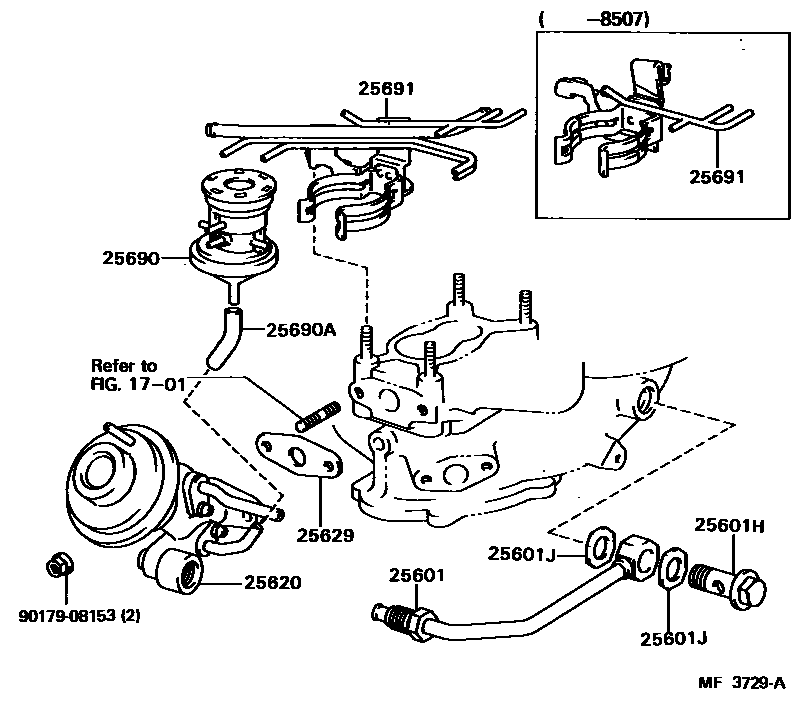

10 parts on this diagram · 1 diagram in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota MR2

This section contains 10 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota MR2. Key components include: MANIFOLD, PIPE SUB-ASSY, EGR, NO.1, BOLT, UNION(FOR EGR PIPE,NO.1), GASKET(FOR EGR PIPE, NO.1), VALVE ASSY, EGR.
