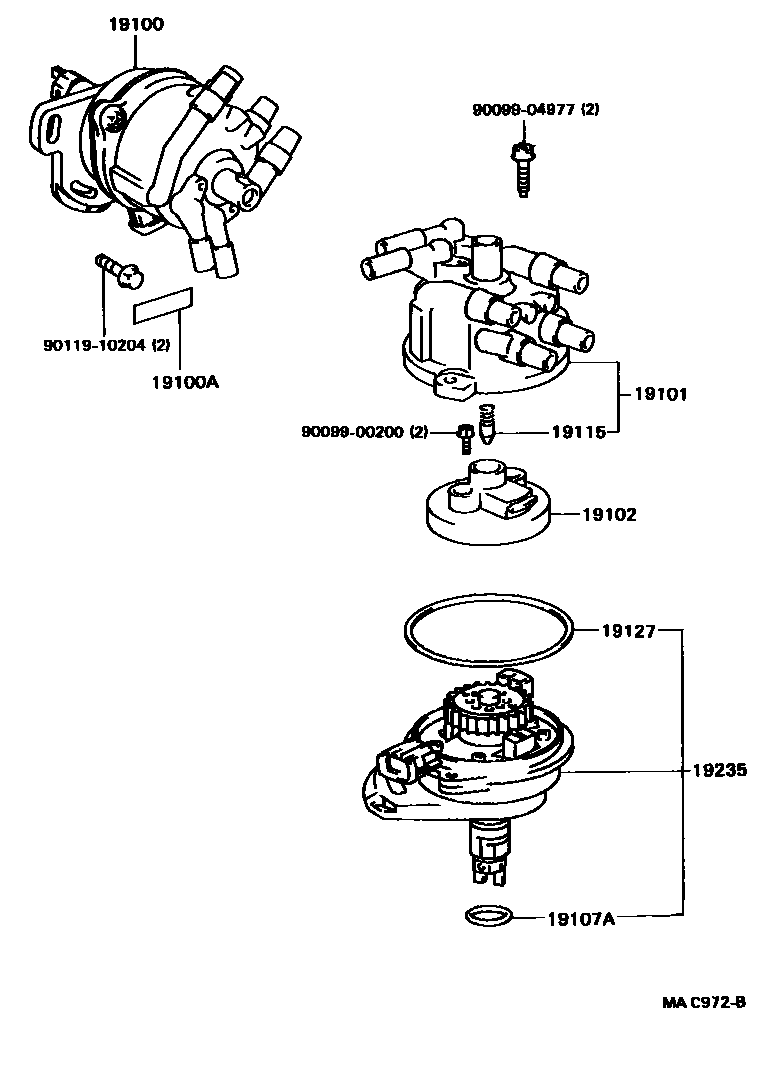

Toyota MR2 — DISTRIBUTOR

0001 1 0002 1 0003 1

19100DISTRIBUTOR ASSY

main19100-88363i3SG#..SW20198912-199112

main19100-88364i3SG#..SW20199112-199311

main19100-88460i3SGE..SW20199311-199712

19100ATAPE, SEALING

main90919-24004i3SG#..SW20198912-199401

sub90919-24003

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-88363i3SG#..SW20198912-199112

main19101-88364i3SG#..SW20199112-199311

main19101-88460i3SGE..SW20199311-199712

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-74040i3SG#..SW20198912-199712

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14090i3SG#..SW20199103-199712

main90099-14106i3SG#..SW20198912-199103

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-88280i3SG#..SW20198912-199712

19127PACKING, DUST PROOF

main19127-74040i3SG#..SW20198912-199712

19235HOUSING, DISTRIBUTOR

main19235-88040i3SG#..SW20199311-199712

main19235-88363i3SG#..SW20198912-199311

9009900200

main90099-00200

9009904977

main90099-04977

9011910204

main90119-10204

11 parts on this diagram · 3 diagrams in section
