Toyota MR2 — COWL PANEL & WINDSHIELD GLASS

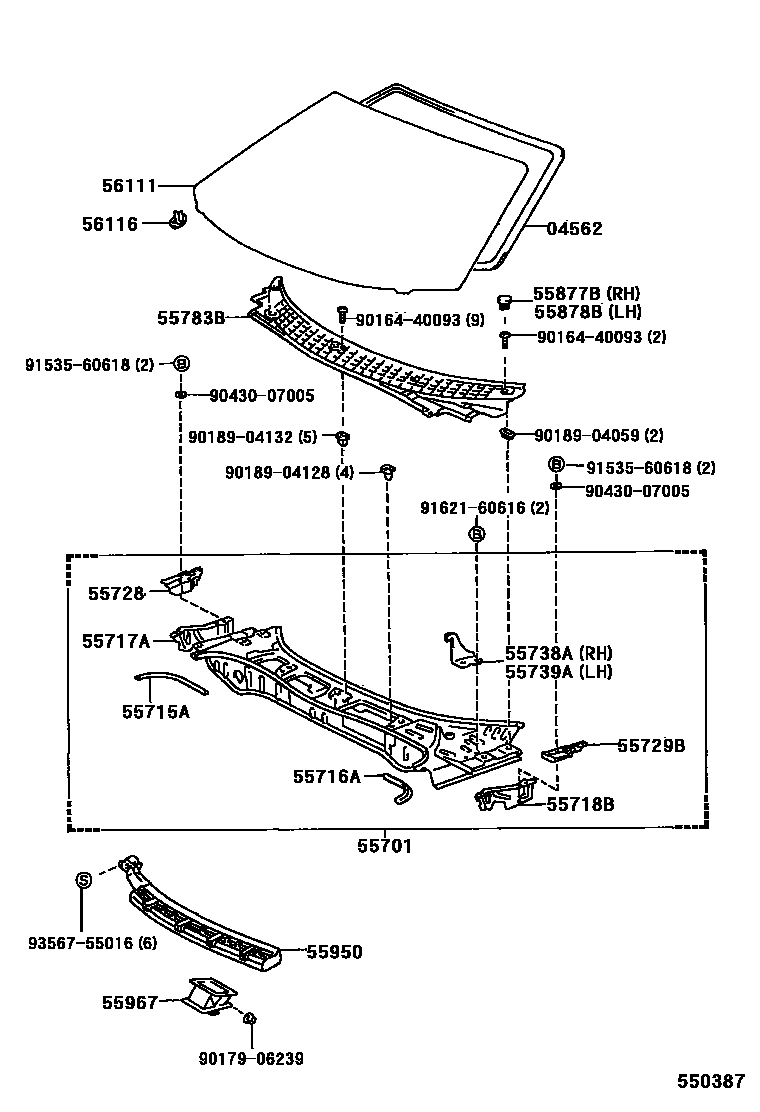

Parts diagram

04562DAM KIT, WINDSHIELD GLASS

main04562-12010i199311

55701PANEL SUB-ASSY, COWL

main55700-17050i198912-199603

main55700-17070i198912-199603

main55700-17100i199603

main55700-17120i199603

55715ABRACE, COWL TOP TO APRON, RH

main55715-17020i198912

55716ABRACE, COWL TOP TO APRON, LH

main55716-17020i198912

55717APANEL, COWL TOP SIDE, INNER RH

main55717-17020i198912

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-17020i198912

55728REINFORCEMENT, HOOD STOPPER, RH

main55728-17020i198912

55729BREINFORCEMENT, HOOD STOPPER, LH

main55729-17020i198912

55738ASTOPPER, HOOD, RH

main55738-17020i198912

55739ASTOPPER, HOOD, LH

main55739-17020i198912

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55708-17010i198912

main55708-17040i198912

55877BCOVER, COWL VENT, RH

main55877-17010i198912

55878BCOVER, COWL VENT, LH

main55878-17010i198912

55950NOZZLE ASSY, DEFROSTER

main55950-17030i198912

55967NOZZLE, DEFROSTER, LOWER

main55967-17010i198912

56111GLASS, WINDSHIELD

main56111-17100i198912-199112

main56111-17110i198912-199311

main56111-17111i199311-199606

main56111-17130i199112-199311

main56111-17131i199311-199501

main56111-17150i198912-199112

main56111-17151i199311-199606

main56111-17170i198912-199112

main56111-17180i198912-199112

main56111-17190i199002-199112

main56111-17200i199002-199311

main56111-17201i199501-199606

main56111-17220i199606

main56111-17230i199606

main56111-17240i199606

main56111-17250i199606

56116SPACER, WINDSHIELD GLASS

main56116-20050×2i198912

WHITE

main56116-20070×2i199011

main56116-20080×2i198912-199001

main56116-20090×2i198912-199011

9016440093

main90164-40093

9017906239

main90179-06239

9018904059

main90189-04059

9018904128

main90189-04128

9018904132

main90189-04132

9043007005

main90430-07005

9153560618

main91535-60618

9162160616

main91621-60616

9356755016

main93567-55016

26 parts on this diagram · 1 diagram in section
