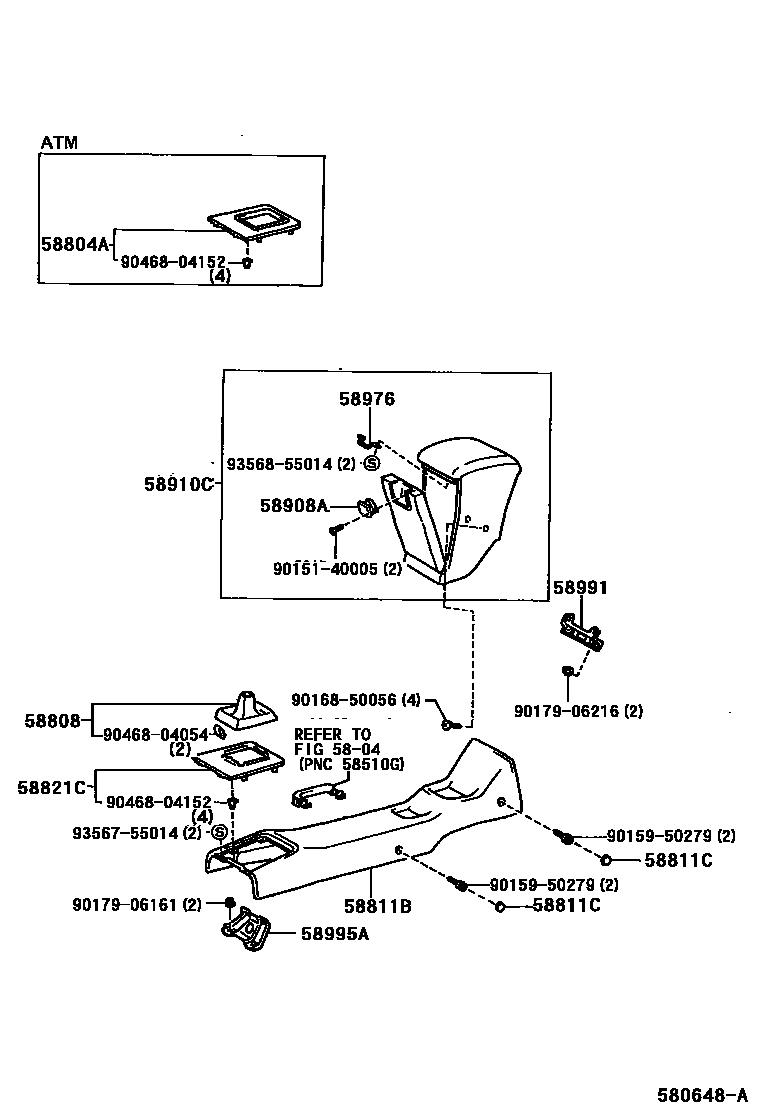

Toyota MR2 — CONSOLE BOX & BRACKET

5804

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-17050iSW20..4FC198912

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-17020-01iSW20..5F..G198912-199112

BLACK,TRIM2#

main58808-17030-C0iSW20..5F199112-199302

BLACK,TRIM2#

main58808-17031-C0iSW20..5F199302

BLACK,TRIM2#

58811BBOX, CONSOLE

main58801-17110-01iSW20..G198912-199112

BLACK,TRIM2#

main58801-17110-04iSW20..G198912-199112

DARK BLUE,TRIM8#

main58801-17120-01iSW20..G198912-199112

main58801-17120-04iSW20..G198912-199112

main58801-17120-22iSW20199311

BLACK,TRIM2#

main58801-17130-C0iSW20199112

58811CCAP(FOR CONSOLE)

main90339-10001-01×4iSW20198912-199311

BLACK,TRIM2#

main90339-10001-C0×4iSW20199311

BLACK,TRIM2#

main90339-10001-J1×4iSW20..G198912-199112

DARK BLUE,TRIM8#

58821CPANEL, CONSOLE, UPPER

main58821-17030iSW20..5F198912-199908

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-17010-01iSW20198912-199311

BLACK,TRIM2#

main58908-17010-04iSW20..G198912-199112

DARK BLUE,TRIM8#

main58908-17010-22iSW20199311

BLACK,TRIM2#

58910CBOX ASSY, CONSOLE, REAR

main58910-17020-01iSW20198912-199311

BLACK,TRIM2#

main58910-17020-04iSW20..G198912-199112

DARK BLUE,TRIM8#

main58910-17020-22iSW20199311

BLACK,TRIM2#

main58910-17030-C0iSW20199112

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-17010iSW20198912

58991BRACKET, CONSOLE BOX MOUNTING, UPPER

main58991-17020iSW20198912

main58991-17030iSW20199112

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-17020iSW20198912-199606

9015140005

main90151-40005

9015950279

main90159-50279

9016850056

main90168-50056

9017906161

main90179-06161

9017906216

main90179-06216

9046804054

main90468-04054

9046804152

main90468-04152

9356755014

main93567-55014

9356855014

main93568-55014

20 parts on this diagram · 1 diagram in section
