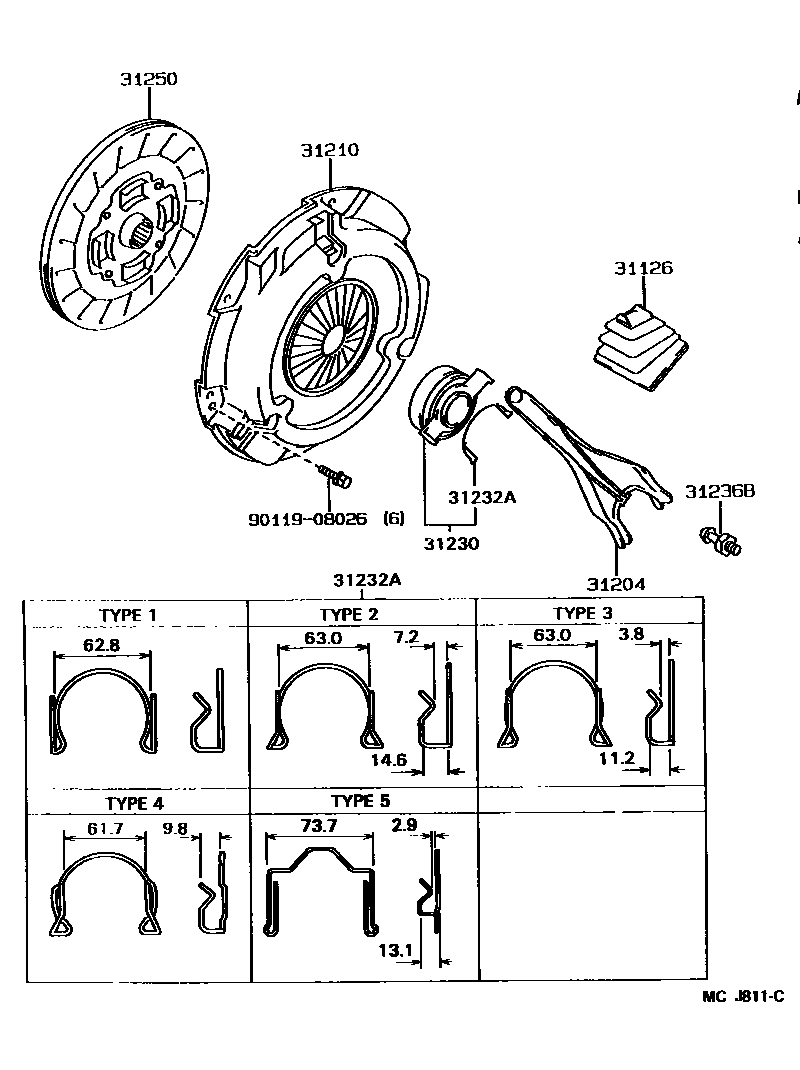

Toyota MR2 — CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20080iSW20..GT198912

main31126-32010iSW20..5F..G198912

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20100iSW20..5F..G199006

main31204-20110iSW20..GT198912-199602

main31204-20111iSW20..GT199602

main31204-32010iSW20..5F..G198912-199006

31210COVER ASSY, CLUTCH

main31210-17030iSW20..GT199006-199112

sub31210-20351

main31210-20240iSW20..5F..G198912-199005

main31210-20250iSW20..GT199005-199006

main31210-20320iSW20..GT199112-199305

main31210-20321iSW20..GT199305-199311

sub31210-20351

main31210-20350iSW20..GT199311

sub31210-20351

main31210-32130iSW20..5F..G199005-199712

sub31210-33030

main31210-44010iSW20..5F..G199712

sub31210-44020

31230BEARING ASSY, CLUTCH RELEASE

main31230-20190iSW20..GT198912-199811

main31230-20191iSW20..GT199811

main31230-32020iSW20..5F..G198912-199006

sub31230-32100

main31230-32060iSW20..5F..G199006

31232ACLIP, RELEASE BEARING HUB

main31232-20020iSW20..5F..G199005-199311

main31232-20030iSW20..GT198912-199207

main31232-20031iSW20..GT199207

main31232-32010iSW20..5F..G198912-199005

main31232-32020iSW20..5F..G198912-199005

main31232-32030iSW20..5F..G198912-199008

main31232-32050iSW20..5F..G199008-199311

31236BSUPPORT, RELEASE FORK

main31236-20070iSW20..GT198912

main31236-30030iSW20..5F..G198912-199005

main31236-32010iSW20..5F..G199005

31250DISC ASSY, CLUTCH

main31250-17040iSW20..5F..G199001-199607

main31250-17050iSW20..GT199006-199205

main31250-17051iSW20..GT199205-199703

main31250-17052iSW20..GT199703

sub31250-17053

main31250-20170iSW20..GT198912-199006

sub31250-20171

main31250-20180iSW20..5F..G198912-199001

main31250-20250iSW20..5F..G199607-199712

sub31250-20251

main31250-20330iSW20..5F..G199712-199812

main31250-20331iSW20..5F..G199812

sub31250-20332

9011908026

main90119-08026

8 parts on this diagram · 2 diagrams in section
