Toyota MR2 — CLUTCH & RELEASE FORK

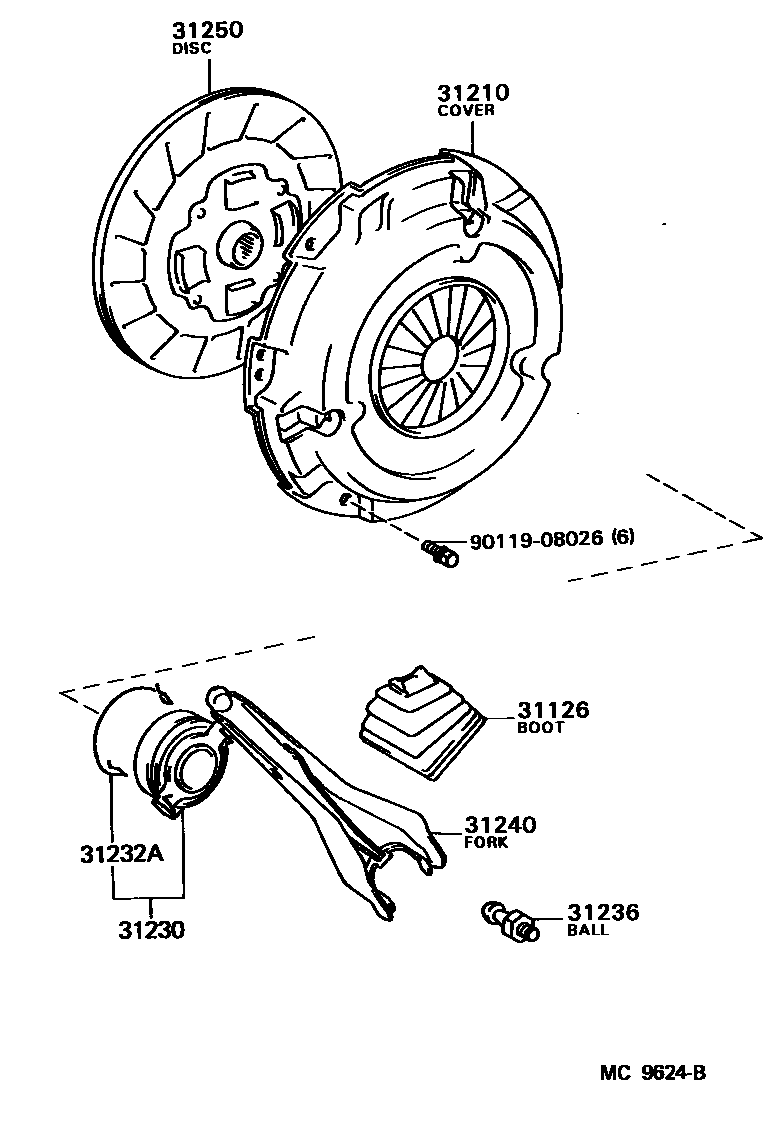

Parts diagram
31126BOOT, CLUTCH RELEASE FORK
main31126-12050i198406-198701
main31126-12051i198701-198908
main31126-12060i198908-198912
31210COVER ASSY, CLUTCH
main31210-12080i198406-198506
main31210-12100i198406-198704
sub31210-12180
main31210-12150i198812-198911
main31210-12151i198911-198912
sub31210-12152
main31210-17010i198506-198705
sub31210-12201
main31210-17011i198705-198805
main31210-17012i198805-198812
main31210-17020i198608-198805
main31210-17021i198805-198912
main31210-27010i198704-198907
main31210-27011i198907-198912
sub31210-12180
31230BEARING ASSY, CLUTCH RELEASE
main31230-12100i198406-198608
main31230-12110i198406-198605
main31230-12111i198605-198608
main31230-12140i198803-198912
sub31230-16061
main31230-16060i198803-198807
sub31230-16061
main31230-20160i198608-198809
KOYO
main31230-20170i198803-198811
31232ACLIP, RELEASE BEARING HUB
main31232-12040i198406-198912
KOYO
main31232-16031i198406-198912
NSK,NACHI
main31232-20020i198608-198912
NSK
main31232-32030i198608-198912
KOYO
31236BALL, RELEASE FORK
main31236-12011i198406-198803
main31236-20060i198901-198912
main31236-20061i198701-198704
31240FORK ASSY, CLUTCH RELEASE
main31204-12050i198803-198912
main31204-17010i198608-198912
31250DISC ASSY, CLUTCH
main31250-12143i198406-198601
main31250-12144i198601-198803
main31250-12200i198803-198912
sub31250-12201
main31250-17010i198406-198506
sub31250-12290
main31250-17020i198506-198912
sub31250-12320
main31250-17030i198608-198912
sub31250-17031
9011908026
main90119-08026

8 parts on this diagram · 2 diagrams in section
