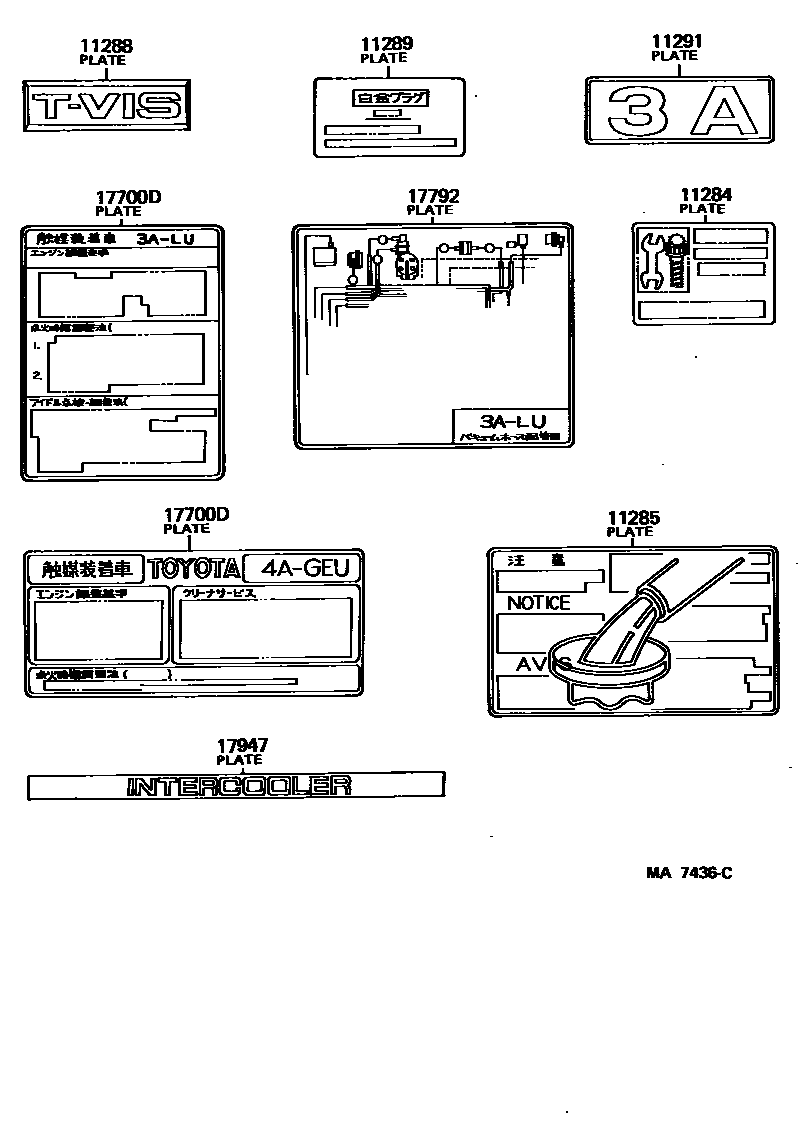

Toyota MR2 — CAUTION PLATE & NAME PLATE (ENGINE)

11284PLATE, ENGINE BOLT INFORMATION

main11284-16010i4AG#..AW11198708-198709

main11284-16030i4AG#..AW11198709-198912

11285PLATE, COOLANT SYSTEM CAUTION

main11285-16010i3ALU,4AGELU..AW1#198406-198608

main11285-16011i3ALU,4AG#..AW1#198608-198912

11288PLATE, ENGINE SYSTEM

main11288-88301i4AGELU..AW11198803-198912

11289PLATE, SPARK PLUG CAUTION

main11289-16010i4AG#..AW11198606-198912

main11289-70010i4AGELU..AW11198410-198606

main11289-72010i4AGELU..AW11198406-198410

sub11289-73010

11291PLATE, ENGINE NAME

main11291-15100i3ALU..AW10198406-198803

3A

main11291-16040i4AGELU..AW11198406-198912

main11291-16050i4AGZE..AW11198608-198912

17700DPLATE, ENGINE CAUTION

main11293-15170i3ALU..AW10198406-198912

main11293-16021i4AGELU..AW11198406-198608

main11293-16022i4AGELU..AW11198608-198912

sub11293-16023

main11296-16010i4AGZE..AW11198608-198610

main11296-16011i4AGZE..AW11198610-198912

sub11296-16012

17792PLATE, ENGINE VACUUM HOSE INFORMATION

main17792-15250i3ALU..AW10198406-198602

main17792-15251i3ALU..AW10198602-198608

main17792-15290i3ALU..AW10198608-198912

17947PLATE, INTERCOOLER

main17947-16010i4AGZE..AW11198608-198912

8 parts on this diagram · 1 diagram in section
