Toyota MR2 — ANTENNA

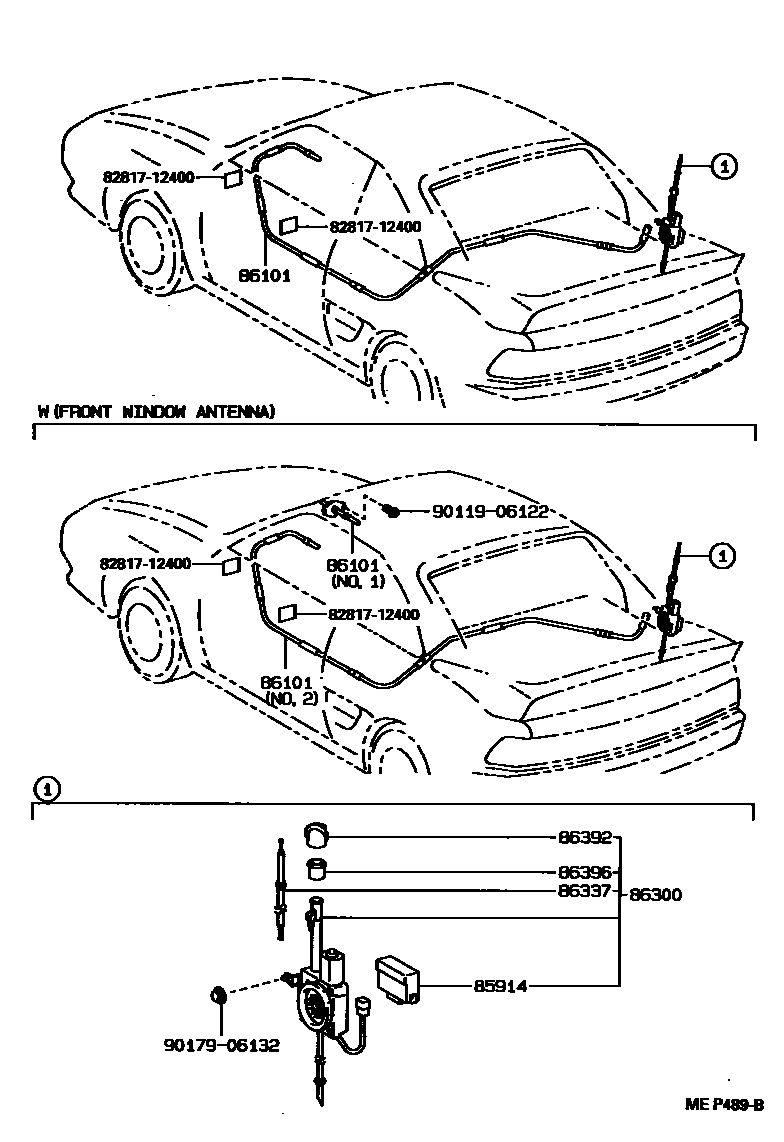

Parts diagram

85914RELAY, MOTOR ANTENNA CONTROL

main85914-30010i198912-199311

main85914-33010i199311-199505

main85914-33020i199505

86101CORD SUB-ASSY, ANTENNA

main86101-17030i198912

main86101-17040i198912-199112

86300ANTENNA ASSY, W/HOLDER

main86300-17080i199311-199505

main86300-17081i199505

main86300-17100i199112-199311

main86300-17110i198912-199311

86337ROD & PIPE, SEALED W/CABLE

main86337-17080i199311

main86337-17110i198912-199311

main86337-32200i199112-199311

86392ORNAMENT, ANTENNA

main86392-17070i198912-199311

main86392-17080i199311

86396NUT, ANTENNA

main86396-20030i199311

main86396-50010i198912-199311

8281712400PROTECTOR, WIRING HARNESS, NO.1

main82817-12400

9011906122

main90119-06122

9017906132

main90179-06132

9 parts on this diagram · 1 diagram in section

ANTENNA for Toyota MR2

This section contains 9 genuine Toyota parts for the ANTENNA system of the Toyota MR2. Key components include: RELAY, MOTOR ANTENNA CONTROL, CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, W/HOLDER, ROD & PIPE, SEALED W/CABLE, ORNAMENT, ANTENNA.
