Toyota MR2 — ANTENNA

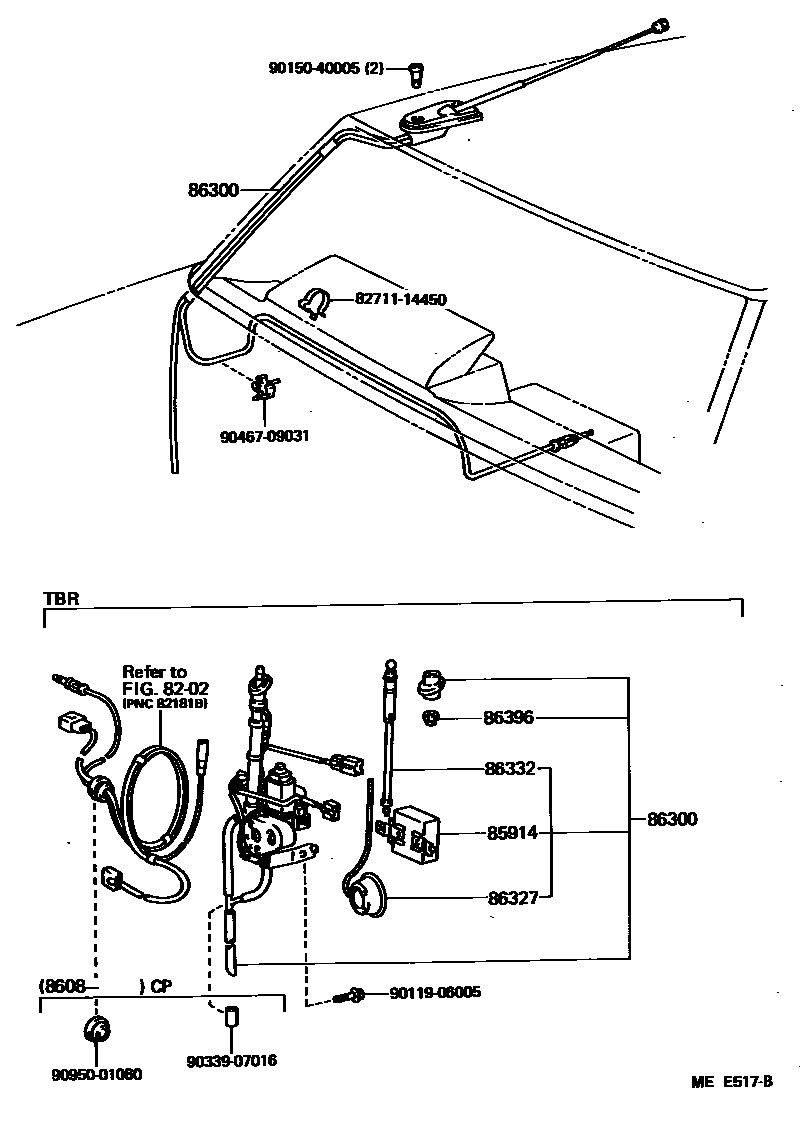

Parts diagram

8202WIRING & CLAMP

→ Go to FIG 82-02

85914RELAY, MOTOR ANTENNA CONTROL

main85914-14020198608-198912

86300ANTENNA ASSY, W/HOLDER

main86300-17010198406-198912

main86300-17070198608-198809

main86300-17071198809-198912

86327CABLE, W/ANTENNA DRUM

main86327-22280198608-198811

main86327-22281198811-198912

86332ROD, ANTENNA

main86332-17070198608-198912

86396NUT, ANTENNA

main86396-14040198608-198912

8271114450WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14450

9011906005

main90119-06005

9015040005

main90150-40005

9033907016

main90339-07016

9046709031

main90467-09031

9095001060

main90950-01060

12 parts on this diagram · 1 diagram in section

ANTENNA for Toyota MR2

This section contains 12 genuine Toyota parts for the ANTENNA system of the Toyota MR2. Key components include: WIRING & CLAMP, RELAY, MOTOR ANTENNA CONTROL, ANTENNA ASSY, W/HOLDER, CABLE, W/ANTENNA DRUM, ROD, ANTENNA.
