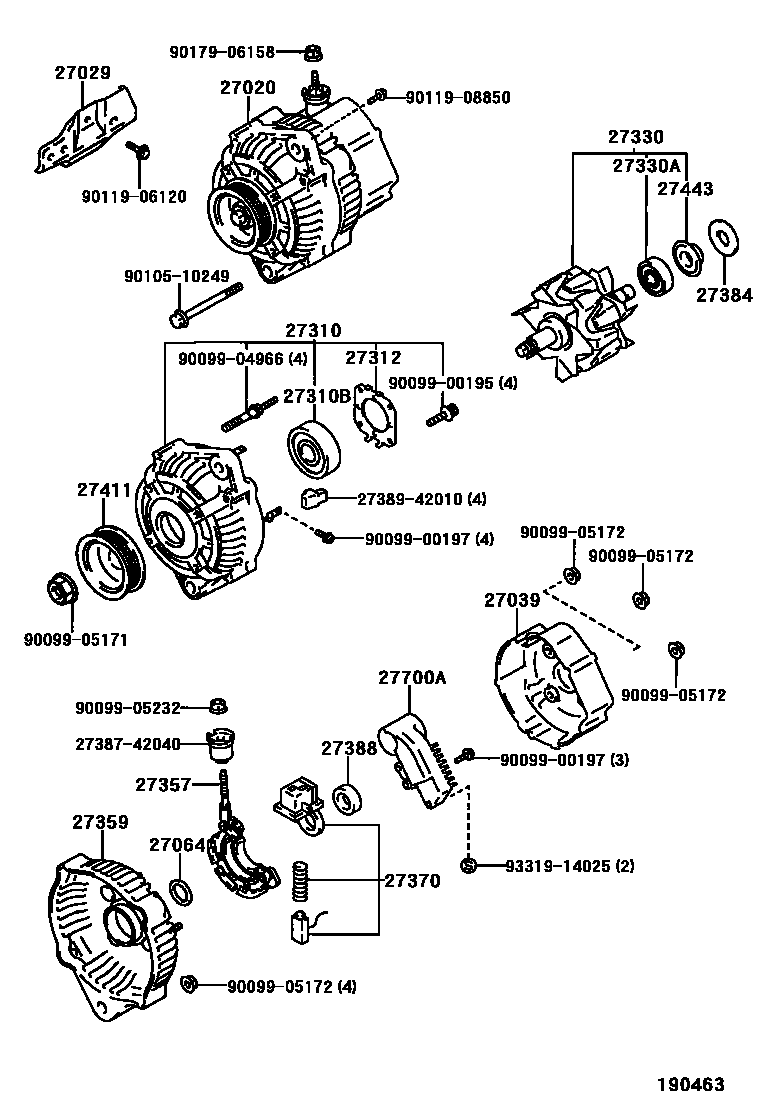

Toyota MR2 — ALTERNATOR
27020ALTERNATOR ASSY
27039COVER, ALTERNATOR REAR END
27064SEAL, ALTERNATOR PLATE
27310FRAME ASSY, DRIVE END, ALTERNATOR
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
27312PLATE, RETAINER
27330ROTOR ASSY, ALTERNATOR
27330ABEARING(FOR ALTERNATOR ROTOR)
27357HOLDER, ALTERNATOR, W/RECTIFIER
27359FRAME, ALTERNATOR RECTIFIER END
27370HOLDER ASSY, ALTERNATOR BRUSH
27384WASHER
27388COVER, ALTERNATOR BRUSH
27411PULLEY, ALTERNATOR
27443COVER, ALTERNATOR BEARING
27700AREGULATOR ASSY, GENERATOR
2738742040INSULATOR, TERMINAL
main27387-42040
2738942010INSULATOR, TERMINAL
main27389-42010
9009900195
main90099-00195
9009900197
main90099-00197
9009904966
main90099-04966
9009905171
main90099-05171
9009905172
main90099-05172
9009905232
main90099-05232
9010510249
main90105-10249
9011906120
main90119-06120
9011908850
main90119-08850
9017906158
main90179-06158
9331914025
main93319-14025
30 parts on this diagram · 4 diagrams in section
ALTERNATOR for Toyota MR2
This section contains 42 genuine Toyota parts for the ALTERNATOR system of the Toyota MR2. Key components include: ALTERNATOR ASSY, COVER, ALTERNATOR, COVER, ALTERNATOR REAR END, SEAL, ALTERNATOR PLATE, FRAME ASSY, DRIVE END, ALTERNATOR.
