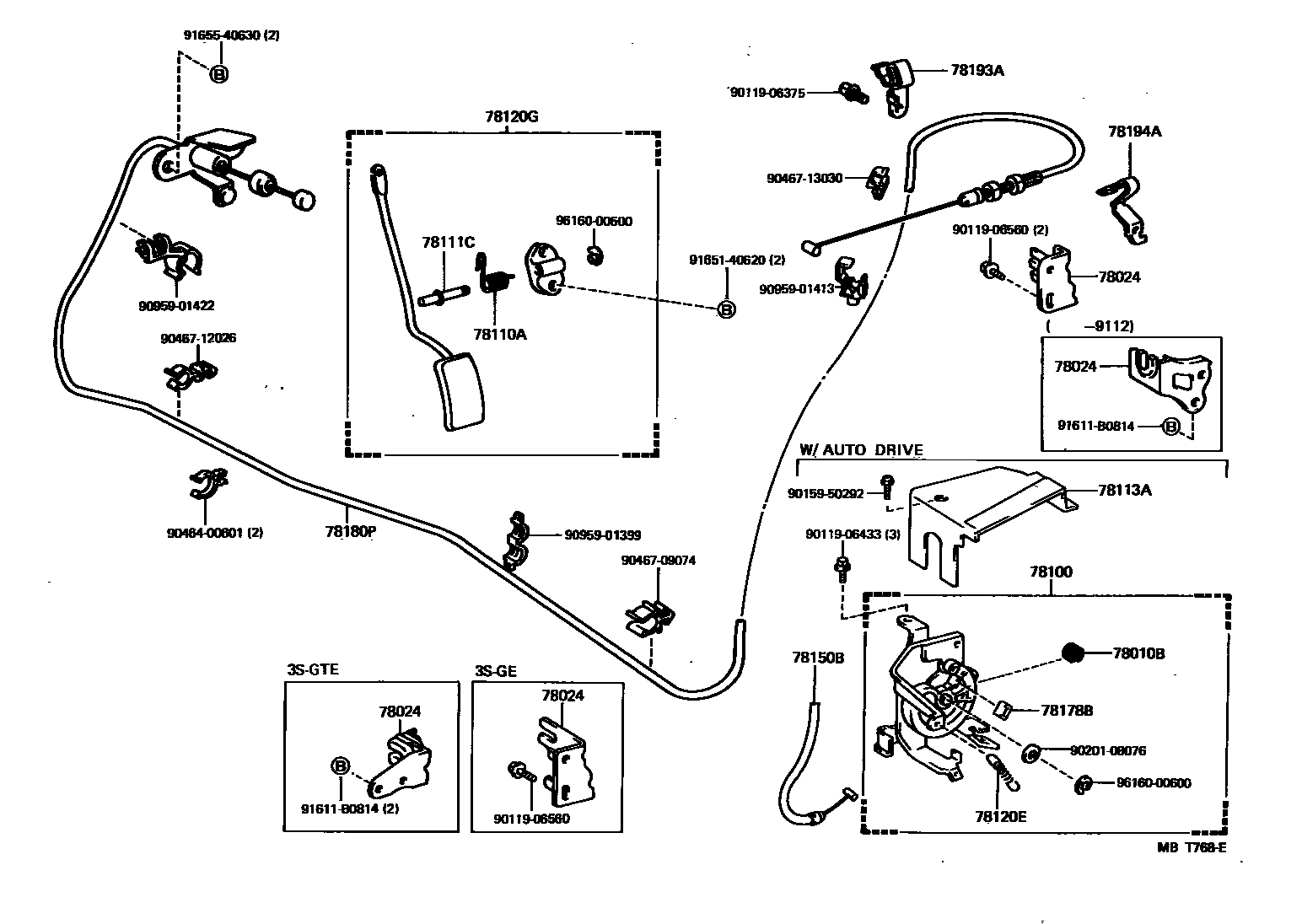

Toyota MR2 — ACCELERATOR LINK

0001 1 0002 1

78010BSPRING, TORSION (FOR ACCELERATOR LINK)

main90508-08027iSW20199003-199010

main90508-08030iSW20199010-199311

main90508-10063iSW20198912-199003

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-17010iSW20..5F..G199112-199311

main78024-20120iSW20..4FC199112-199311

main78024-88382iSW20..GT198912-199112

main78024-88383iSW20..GT199112-199311

main78024-88460iSW20..G199311-199712

main78024-88481iSW20..GT199311

main78024-88561iSW20..G199712

78100LINK ASSY, ACCELERATOR

main78100-17050iSW20..GT198912-199112

main78100-17060iSW20..G198912-199112

main78100-17070iSW20..5F..G199112-199311

main78100-17100iSW20..GT199112-199311

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18086iSW20198912-199311

main90959-03044iSW20199311-199908

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-08116iSW20198912-199908

78113ACOVER, AUTO DRIVE ACCELERATOR LINK

main78113-17010iSW20..G198912-199311

main78113-17020iSW20..GT198912-199311

78120ESPRING, TENSION (FOR ACCELERATOR LINK ROD)

main90506-08019iSW20198912-199003

main90506-08040iSW20199003-199010

main90506-08042iSW20199010-199311

78120GROD ASSY, ACCELERATOR PEDAL

main78120-17030iSW20198912-199311

main78120-17050iSW20199311-199908

78150BCABLE ASSY, ACCELERATOR AUTO DRIVE

main78150-17010iSW20..4FC199112-199311

main78150-17030iSW20..GT198912-199112

main78150-17040iSW20..5F..G199112-199311

main78150-17060iSW20..GT199112-199311

78178BDAMPER, ACCEL CONTROL NO.4 ROD BRACKET

main78178-14010×2iSW20198912-199311

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-17140iSW20..4FC199112-199311

main78180-17141iSW20..G199311-199712

main78180-17150iSW20..GT198912-199112

main78180-17190iSW20..G198912-199311

sub78180-17191

main78180-17240iSW20..GT198912-199311

main78180-17260iSW20..5F..G199112-199311

main78180-17300iSW20..GT199112-199311

main78180-17340iSW20..GT199311

main78180-17350iSW20..G199712

78193ASUPPORT, ACCELERATOR CONTROL CABLE, NO.3

main78193-20071iSW20..5F..G198912-199712

main78193-88560iSW20..4FC199712

78194ASUPPORT, ACCELERATOR CONTROL CABLE, NO.4

main78194-20080iSW20..4FC198912-199311

main78194-88460iSW20..4FC199311-199712

9011906375

main90119-06375

9011906433

main90119-06433

9011906560

main90119-06560

9015950292

main90159-50292

9020108076

main90201-08076

9046400601

main90464-00601

9046709074

main90467-09074

9046712026

main90467-12026

9046713030

main90467-13030

9095901399

main90959-01399

9095901413

main90959-01413

9095901422

main90959-01422

91611B0814

main91611-B0814

9165140620

main91651-40620

9165540630

main91655-40630

9616000600

main96160-00600

29 parts on this diagram · 2 diagrams in section
