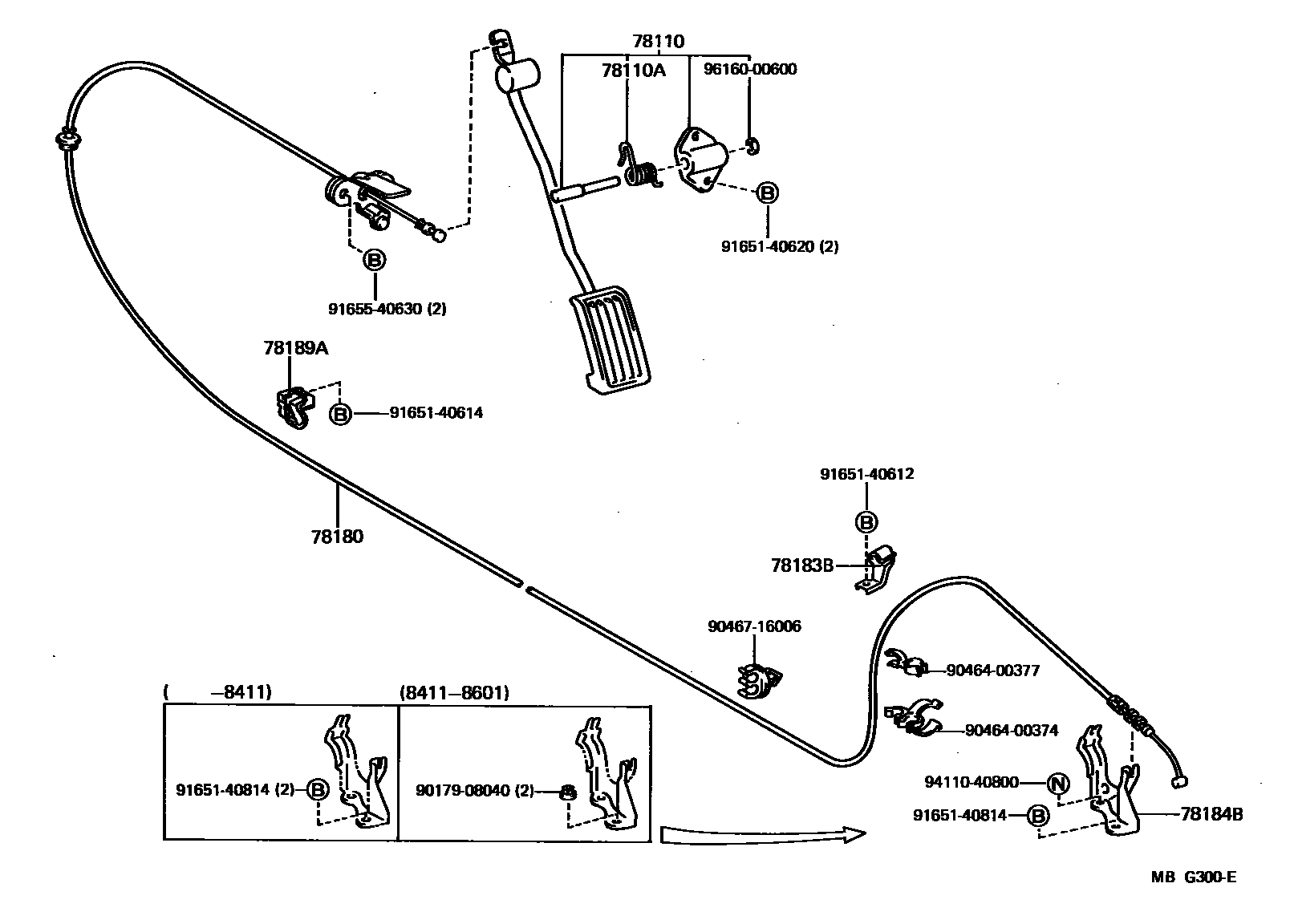

Toyota MR2 — ACCELERATOR LINK

0001 1 0002 1 0003 1

78110ROD ASSY, ACCELERATOR PEDAL

main78120-17010iAW1#198406-198912

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18041iAW1#198406-198912

78180WIRE ASSY, ACCELERATOR

main78180-17010iAW10198406-198912

main78180-17020iAW11..5F..TWC198406-198912

main78180-17080iAW11..4FC..TWC198406-198912

main78180-17090iAW11..SPC198608-198912

main78180-17100iAW11..SPC198803-198912

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-17010iAW11..TWC198406-198912

main78183-17020iAW10198406-198912

main78183-17030iAW11..SPC198608-198803

NO.2

main78183-17040iAW11..SPC198608-198803

NO.1

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-12160iAW10198406-198601

main78184-12210iAW10198601-198912

main78184-17030iAW11..SPC198608-198912

78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2

main78189-17010iAW1#198406-198912

9017908040

main90179-08040

9046400374

main90464-00374

9046400377

main90464-00377

9046716006

main90467-16006

9165140612

main91651-40612

9165140614

main91651-40614

9165140620

main91651-40620

9165140814

main91651-40814

9165540630

main91655-40630

9411040800

main94110-40800

9616000600

main96160-00600

17 parts on this diagram · 3 diagrams in section
