Toyota MR2 — STANDARD TOOL

09110JACK ASSY

main09110-17010iSW20..ARL198912-199210

main09110-17020iSW20..ARL199210-199311

main09111-17020iSW20..G,W198912-199210

main09111-24030iSW20..LHD199311-199612

*FRG

09113HANDLE, JACK

main09113-32010iSW20199112

09115ROD SUB-ASSY, JACK HANDLE

main09115-16030iSW20198912-199112

09116LEVER, JACK HANDLE

main09116-16010iSW20198912-199112

09120BAG, TOOL

main09120-17020iSW20198912

09130PLIERS

main99913-11500iSW20198912-199311

09135DRIVER, SCREW

main99915-10700iSW20198912-199311

09141SPANNER

main99914-10810iSW20..LHD199311

8 X 10,*FRG

main99914-11214iSW20198912-199311

12 X 14

09150WRENCH, HUB NUT BOX

main09150-26010iSW20199112

09183WRENCH, WHEEL CAP

main09183-00010iSW20198912-199311

09184STOPPER, WHEEL

main09184-00010iSW20198912

51900FCARRIER ASSY, SPARE WHEEL

main51900-17020iSW20..RHD..W199106-199111

main51900-17021iSW20..RHD..W199111-199112

main51900-22030iSW20199712

TYPE A:REFER TO ILLUSTRATION

main51931-22050iSW20199712

TYPE B:REFER TO ILLUSTRATION

51919CSPACER, SPARE WHEEL CARRIER

main51919-22010iSW20199712

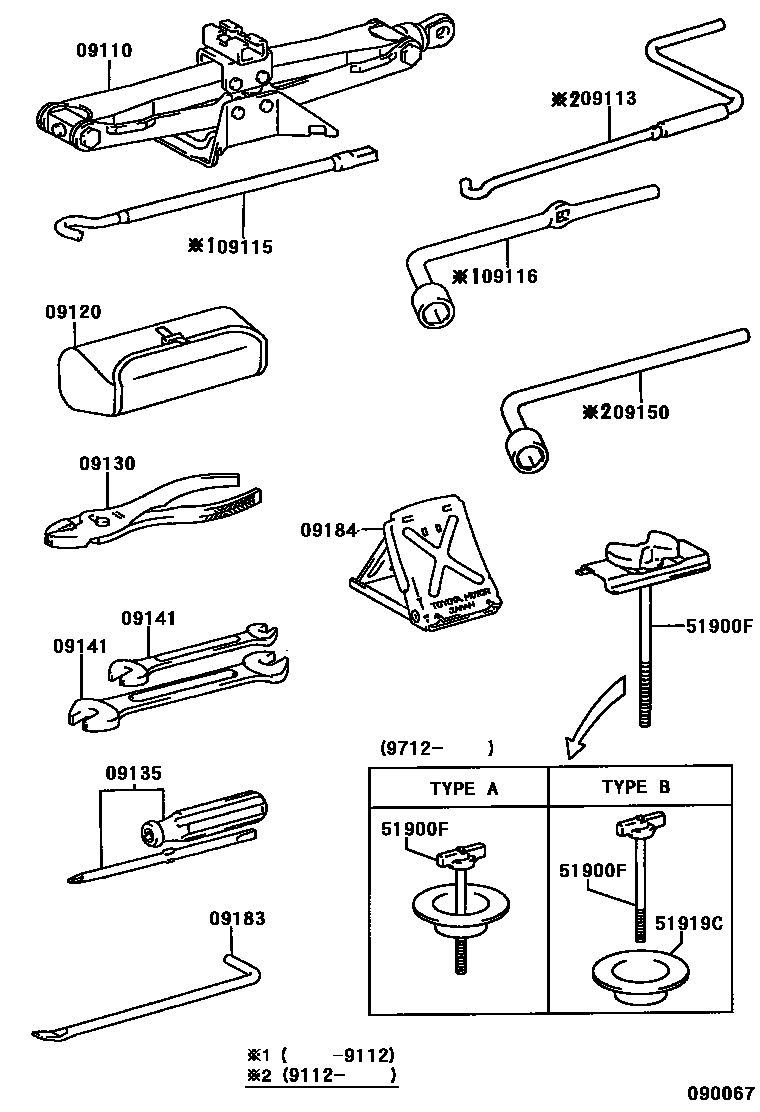

13 parts on this diagram · 1 diagram in section
