Toyota MR2 — SIDE MOULDING

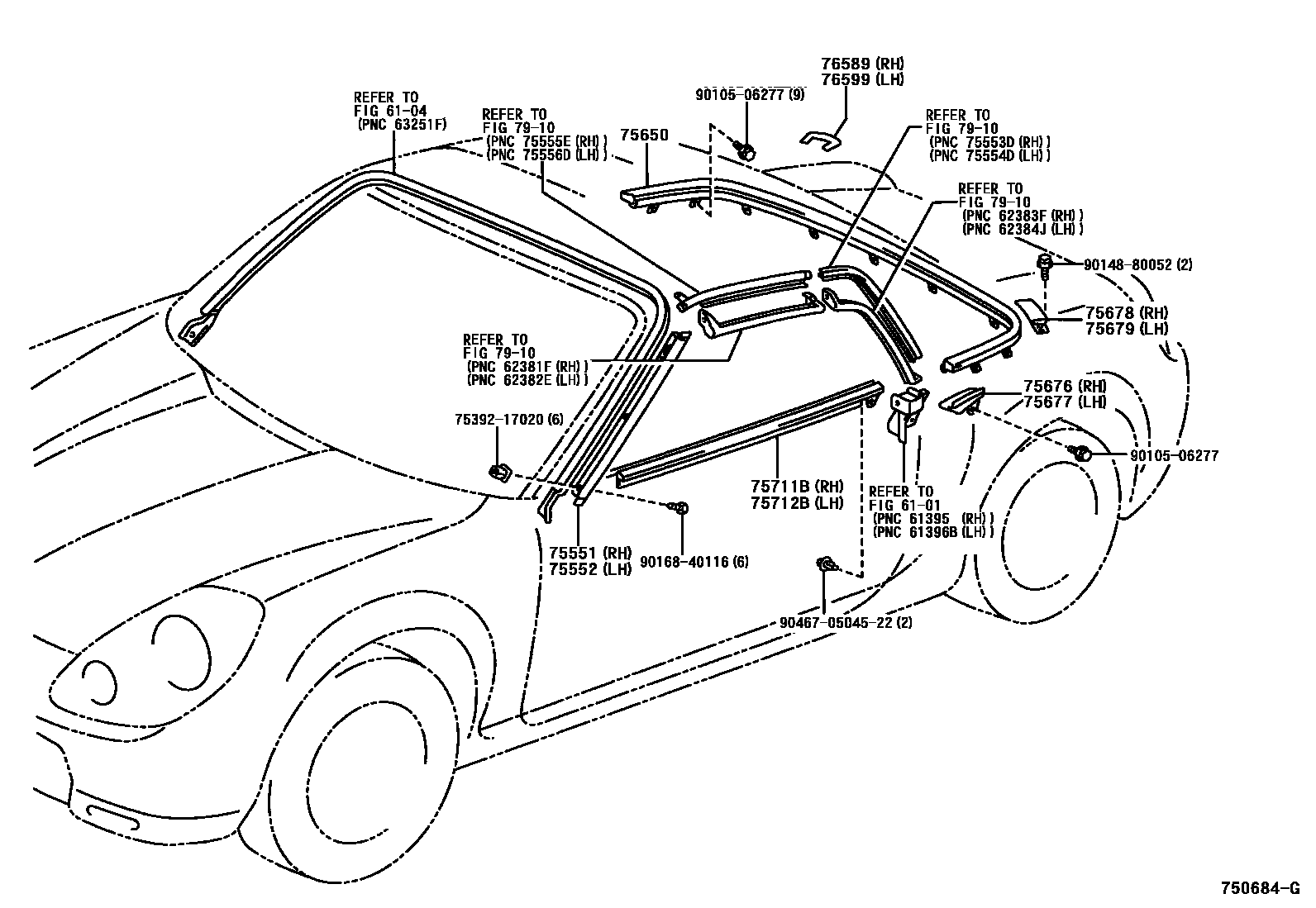

Parts diagram

6101SIDE MEMBER

→ Go to FIG 61-01

6104ROOF PANEL & BACK WINDOW GLASS

→ Go to FIG 61-04

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75505-17040i199912-200208

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75506-17040i199912-200208

75650MOULDING ASSY, RR BELT

main75650-17010i199912-200208

main75650-17011i200310-200509

75676COVER, QUARTER BELT MOULDING END, FRONT RH

main75676-17020i199912-200001

main75676-17021i200001-200208

75677COVER, QUARTER BELT MOULDING END, FRONT LH

main75677-17020i199912-200001

main75677-17021i200001-200208

75678COVER, QUARTER BELT MOULDING END, REAR RH

main75678-17010i199912-200208

75679COVER, QUARTER BELT MOULDING END, REAR LH

main75679-17010i199912-200208

75711BMOULDING, FRONT DOOR BELT, RH

main75711-17030i199912-200208

main75711-17031i200310-200509

75712BMOULDING, FRONT DOOR BELT, LH

main75712-17030i199912-200208

main75712-17031i200310-200509

76589STOPPER, BACK WINDOW OUTSIDE MOULDING, NO.1

main76589-17010i199912-200208

76599STOPPER, BACK WINDOW OUTSIDE MOULDING, NO.2

main76599-17010i199912-200208

7910CONVERTIBLE PARTS

→ Go to FIG 79-10

7539217020RETAINER, OUTSIDE MOULDING

main75392-17020

9010506277

main90105-06277

9014880052

main90148-80052

9016840116

main90168-40116

904670504522

main90467-0504522

19 parts on this diagram · 1 diagram in section

SIDE MOULDING for Toyota MR2

This section contains 19 genuine Toyota parts for the SIDE MOULDING system of the Toyota MR2. Key components include: SIDE MEMBER, ROOF PANEL & BACK WINDOW GLASS, MOULDING, ROOF DRIP SIDE FINISH, RH, MOULDING, ROOF DRIP SIDE FINISH, LH, MOULDING ASSY, RR BELT.
