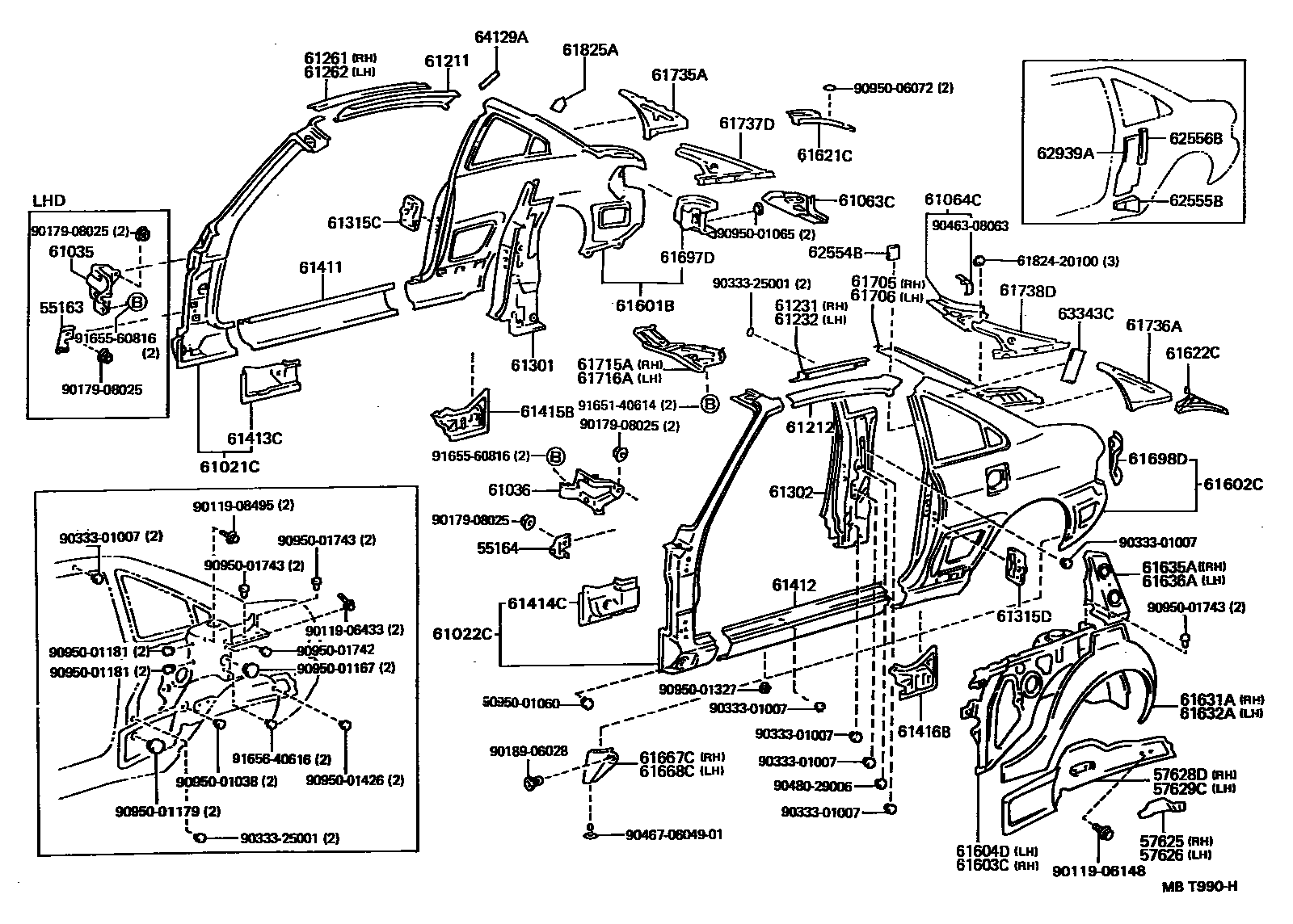

Toyota MR2 — SIDE MEMBER

0001 1 0002 1

55163BRACKET, HEATER BLOWER MOUNTING, NO.2 RH

main55163-17020iSW20..LHD198912

55164BRACKET, HEATER BLOWER MOUNTING, NO.2 LH

main55164-17010iSW20..RHD198912

57625REINFORCEMENT, REAR FLOOR SIDE MEMBER, RH

main57625-17010iSW20198912

57626REINFORCEMENT, REAR FLOOR SIDE MEMBER, LH

main57626-17010iSW20198912

57628DPLATE, REAR FLOOR SIDE MEMBER, RH

main57628-17040iSW20198912

57629CPLATE, REAR FLOOR SIDE MEMBER, LH

main57629-17040iSW20198912

61021CPILLAR SUB-ASSY, FRONT BODY, RH

main61021-17120iSW20..RHD..CP198912

main61021-17130iSW20..RHD..TBR198912

main61021-17140iSW20..LHD..CP198912-199311

main61021-17141iSW20..LHD..CP199311-199501

main61021-17150iSW20..LHD..TBR198912-199311

main61021-17151iSW20..LHD..TBR199311

61022CPILLAR SUB-ASSY, FRONT BODY, LH

main61022-17130iSW20..RHD..CP198912

main61022-17140iSW20..RHD..TBR198912

main61022-17150iSW20..LHD..CP198912-199501

main61022-17160iSW20..LHD..TBR198912

61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH

main61165-17020iSW20..LHD198912

61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH

main61166-17020iSW20..RHD198912

61063CTROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT RH

main61063-17010iSW20198912

61064CTROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT LH

main61064-17010iSW20198912

61211RAIL, ROOF SIDE, OUTER RH

main61211-17020iSW20198912

61212RAIL, ROOF SIDE, OUTER LH

main61212-17020iSW20198912

61231RAIL, ROOF SIDE, INNER RH

main61231-17030iSW20..CP198912

61232RAIL, ROOF SIDE, INNER LH

main61232-17040iSW20..CP198912

61261CHANNEL, ROOF DRIP, RH

main61261-17020iSW20..CP198912

61262CHANNEL, ROOF DRIP, LH

main61262-17020iSW20..CP198912

61301PILLAR SUB-ASSY, CENTER BODY, RH

main61301-17010iSW20198912

61302PILLAR SUB-ASSY, CENTER BODY, LH

main61302-17010iSW20198912

61315CRETAINER, DOOR LOCK STRIKER, RH

main61315-22020iSW20198912

61315DRETAINER, DOOR LOCK STRIKER, LH

main61315-22020iSW20198912

61411PANEL, ROCKER, OUTER RH

main61411-17050iSW20198912

61412PANEL, ROCKER, OUTER LH

main61412-17050iSW20198912

61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH

main61413-17020iSW20198912

61414CREINFORCEMENT, ROCKER PANEL, NO.2 LH

main61414-17020iSW20198912

61415BEXTENSION, ROCKER, OUTER RH

main61415-17020iSW20198912

61416BEXTENSION, ROCKER, OUTER LH

main61416-17020iSW20198912

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-17150iSW20..G,W198912-199311

main61601-17151iSW20199311

main61601-17170iSW20..G,W198912-199112

W(REAR SPOILER & QUARTER AUTO ANTENNA)

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-17100iSW20..G,W198912-199311

main61602-17110iSW20..ARL198912-199311

W(REAR SPOILER)

61603CPANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH

main61603-17050iSW20198912

61604DPANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH

main61604-17060iSW20198912

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-17020iSW20198912

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-17020iSW20198912

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-17020iSW20198912

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-17020iSW20198912

61635ABRACE, QUARTER WHEEL HOUSE, RH

main61635-17020iSW20198912

61636ABRACE, QUARTER WHEEL HOUSE, LH

main61636-17020iSW20198912

61667CSEAL, QAURTER PANEL, NO.1

main61667-17010iSW20198912

61668CSEAL, QUARTER PANEL, NO.2

main61668-17010iSW20198912

61697DHOUSING, QUARTER PANEL END, RH

main61697-17010iSW20198912

61698DHOUSING, QUARTER PANEL END, LH

main61698-17010iSW20198912

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-17100iSW20..TBR198912

main61705-17110iSW20..CP198912

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61706-17130iSW20..TBR198912

main61706-17140iSW20..CP198912

61715AEXTENSION, ROOF SIDE, INNER UPPER RH

main61715-17020iSW20198912

61716AEXTENSION, ROOF SIDE, INNER UPPER LH

main61716-17020iSW20198912

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-17020iSW20198912-199311

61736APANEL, ROOF SIDE, INNER REAR LH

main61738-17020iSW20198912

61737DREINFORCEMENT, ROOF SIDE, INNER RH

main61737-17020iSW20198912-199311

61738DREINFORCEMENT, ROOF SIDE, INNER LH

main61736-17020iSW20198912

61825APLATE, NOISE CONTROL, NO.2

main61825-17030×2iSW20198912

62554BPAD, PILLAR, NO.4

main62554-17020iSW20198912-199001

62555BPAD, PILLAR, NO.5

main62555-17020×2iSW20198912

62556BPAD, PILLAR, NO.6

main62556-17020×2iSW20198912

sub61824-12130

62939ASILENCER, QUARTER VENT

main62939-17010×2iSW20198912

63343CPAD, ROOF SILENCER, REAR

main63343-17010iSW20198912-199001

64129ASHEET, BACK CORNER PANEL

main64129-17010×6iSW20..TBR199112

6182420100PLATE, NOISE CONTROL, NO.1

main61824-20100

9011906148

main90119-06148

9011906433

main90119-06433

9011908495

main90119-08495

9017908025

main90179-08025

9018906028

main90189-06028

9033301007

main90333-01007

9033325001

main90333-25001

9046308063

main90463-08063

904670604901

main90467-0604901

9048029006

main90480-29006

9095001038

main90950-01038

9095001060

main90950-01060

9095001065

main90950-01065

9095001167

main90950-01167

9095001179

main90950-01179

9095001181

main90950-01181

9095001327

main90950-01327

9095001426

main90950-01426

9095001742

main90950-01742

9095001743

main90950-01743

9095006072

main90950-06072

9165140614

main91651-40614

9165560816

main91655-60816

9165640616

main91656-40616

82 parts on this diagram · 2 diagrams in section
