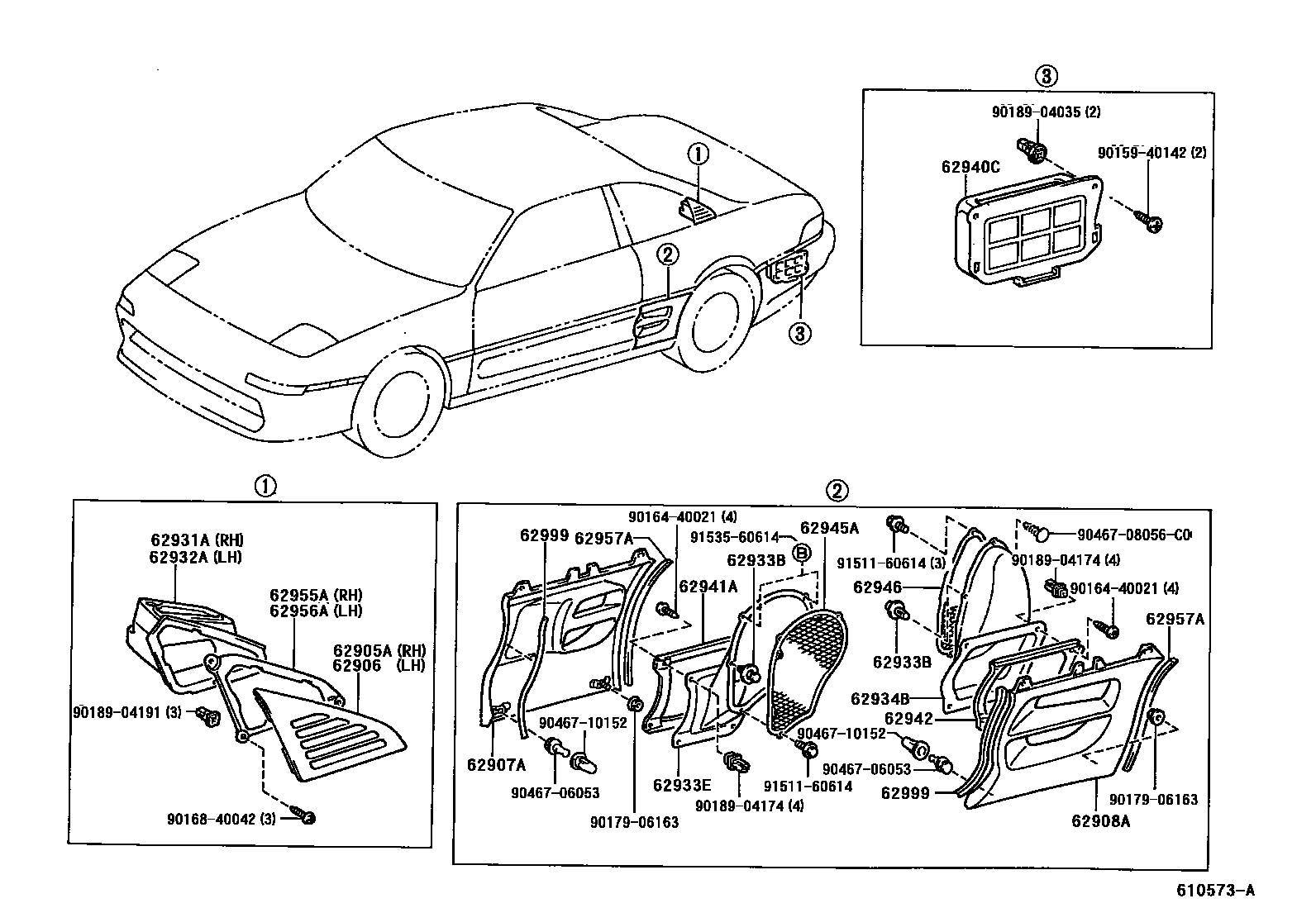

Toyota MR2 — ROOF SIDE VENTILATOR
62905ALOUVER, QUATER VENTILATION, RH
62906LOUVER, QUATER VENTILATION, LH
62907AGARNISH SUB-ASSY, QUARTER PANEL AIR INLET, RH
62908AGARNISH SUB-ASSY, QUARTER PANEL AIR INLET, LH
62931ADUCT, QUARTER VENT, RH
62932ADUCT, QUARTER VENT, LH
62933BCLIP, QUARTER VENT DUCT
BLACK,TRIM2#,8#
BLACK,TRIM2#,8#
62933EDUCT, QUARTER VENT, INNER RH
62934BDUCT, QUARTER VENT, INNER LH
62940CDUCT ASSY, QUARTER VENT
62941ARETAINER, QUARTER VENT DUCT
62942RETAINER, ROOF SIDE VENT DUCT, LH
62945ARETAINER, QUARTER VENT DUCT, NO.3
62955ARETAINER, QUARTER VENT LOUVER
62956ARETAINER, QUARTER VENTILATOR LOUVER, LH
62957ASEAL, QUARTER VENT DUCT, NO.1
62999PAD, AIR INLET GARNISH
9015940142
main90159-40142
9016440021
main90164-40021
9016840042
main90168-40042
9017906163
main90179-06163
9018904035
main90189-04035
9018904174
main90189-04174
9018904191
main90189-04191
9046706053
main90467-06053
9046708056C0
main90467-08056C0
9046710152
main90467-10152
9151160614
main91511-60614
9153560614
main91535-60614
30 parts on this diagram · 1 diagram in section
ROOF SIDE VENTILATOR for Toyota MR2
This section contains 30 genuine Toyota parts for the ROOF SIDE VENTILATOR system of the Toyota MR2. Key components include: LOUVER, QUATER VENTILATION, RH, LOUVER, QUATER VENTILATION, LH, GARNISH SUB-ASSY, QUARTER PANEL AIR INLET, RH, GARNISH SUB-ASSY, QUARTER PANEL AIR INLET, LH, DUCT, QUARTER VENT, RH.
