Toyota MR2 — MIRROR

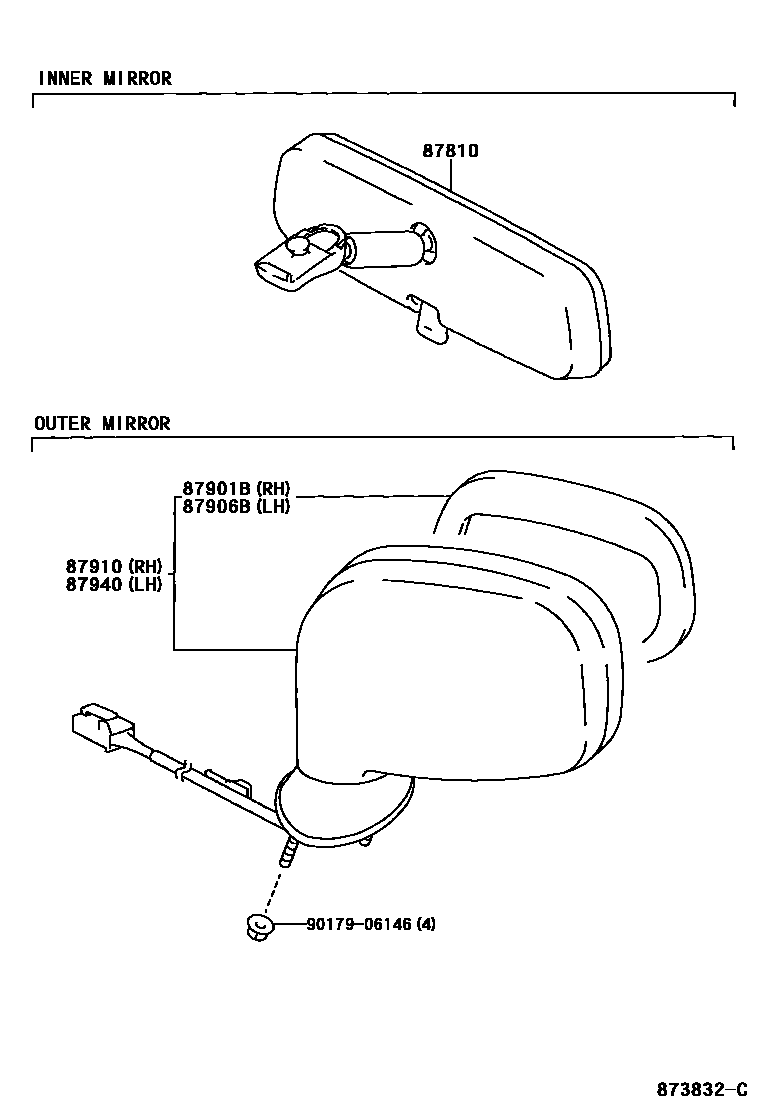

Parts diagram

87810MIRROR ASSY, INNER REAR VIEW

main87810-0W030i199912-200208

main87810-52040i200208-200509

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-17340i200008-200208

main87931-17360i199912-200208

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-10700i200008-200208

main87961-17360i199912-200208

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-17340-A0i200208-200509

SUPER WHITE 2,040

main87910-17340-B0i200008-200208

SILVER ME.,1D0

main87910-17340-B1i200208-200509

GRAY M.M.,1E3

main87910-17340-B2i200208-200509

SILVER M.M.,1E7

main87910-17340-C0i200008-200208

BLACK,202

main87910-17340-D0i200208-200509

SUPER RED 5,3P0

main87910-17340-F0i200208-200509

SUPER BRIGHT YELLOW,576

main87910-17340-G0i200008-200108

GREEN M.M.,6S1

main87910-17340-G1i200208-200509

DARK GREEN MC.,6R4

main87910-17340-J0i200208-200509

BLUE MC.,8M6

main87910-17340-J1i200208-200509

LT.BLUE M.M.,8R2

main87910-17350-A0i200208-200509

SUPER WHITE 2,040

main87910-17350-B0i199912-200208

SILVER ME.,1D0

main87910-17350-B1i200208-200509

GRAY M.M.,1E3

main87910-17350-B2i200208-200509

SILVER M.M.,1E7

main87910-17350-C0i199912-200208

BLACK,202

main87910-17350-D0i200208-200509

SUPER RED 5,3P0

main87910-17350-F0i199912-200208

SUPER BRIGHT YELLOW,576

main87910-17350-G0i199912-200108

GREEN M.M.,6S1

main87910-17350-G1i200208-200509

DARK GREEN MC.,6R4

main87910-17350-J0i199912-200208

BLUE MC.,8M6

main87910-17360-A0i200208-200509

SUPER WHITE 2,040

main87910-17360-B0i199912-200208

SILVER ME.,1D0

main87910-17360-B1i200208-200509

GRAY M.M.,1E3

main87910-17360-B2i200208-200509

SILVER M.M.,1E7

main87910-17360-C0i200208-200509

BLACK,202

main87910-17360-D0i200208-200509

SUPER RED 5,3P0

main87910-17360-F0i200208-200509

SUPER BRIGHT YELLOW,576

main87910-17360-G0i199912-200108

GREEN M.M.,6S1

main87910-17360-G1i200008-200208

DARK GREEN MC.,6R4

main87910-17360-J0i200208-200509

BLUE MC.,8M6

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-17320-A0i200208-200509

SUPER WHITE 2,040

main87940-17320-B0i200008-200208

SILVER ME.,1D0

main87940-17320-B1i200208-200509

GRAY M.M.,1E3

main87940-17320-B2i200208-200509

SILVER M.M.,1E7

main87940-17320-C0i200208-200509

BLACK,202

main87940-17320-D0i200208-200509

SUPER RED 5,3P0

main87940-17320-F0i200208-200509

SUPER BRIGHT YELLOW,576

main87940-17320-G0i200008-200108

GREEN M.M.,6S1

main87940-17320-G1i200008-200208

DARK GREEN MC.,6R4

main87940-17320-J0i200208-200509

BLUE MC.,8M6

main87940-17320-J1i200208-200509

LT.BLUE M.M.,8R2

main87940-17360-A0i200208-200509

SUPER WHITE 2,040

main87940-17360-B0i199912-200208

SILVER ME.,1D0

main87940-17360-B1i200208-200509

GRAY M.M.,1E3

main87940-17360-B2i200208-200509

SILVER M.M.,1E7

main87940-17360-C0i199912-200208

BLACK,202

main87940-17360-D0i199912-200208

SUPER RED 5,3P0

main87940-17360-F0i199912-200208

SUPER BRIGHT YELLOW,576

main87940-17360-G0i199912-200108

GREEN M.M.,6S1

main87940-17360-G1i200008-200208

DARK GREEN MC.,6R4

main87940-17360-J0i199912-200208

BLUE MC.,8M6

main87940-17370-A0i200208-200509

SUPER WHITE 2,040

main87940-17370-B0i199912-200208

SILVER ME.,1D0

main87940-17370-B1i200208-200509

GRAY M.M.,1E3

main87940-17370-B2i200208-200509

SILVER M.M.,1E7

main87940-17370-C0i200208-200509

BLACK,202

main87940-17370-D0i200208-200509

SUPER RED 5,3P0

main87940-17370-F0i199912-200208

SUPER BRIGHT YELLOW,576

main87940-17370-G0i199912-200108

GREEN M.M.,6S1

main87940-17370-G1i200008-200208

DARK GREEN MC.,6R4

main87940-17370-J0i199912-200208

BLUE MC.,8M6

9017906146

main90179-06146

6 parts on this diagram · 1 diagram in section
