Toyota MR2 — MIRROR

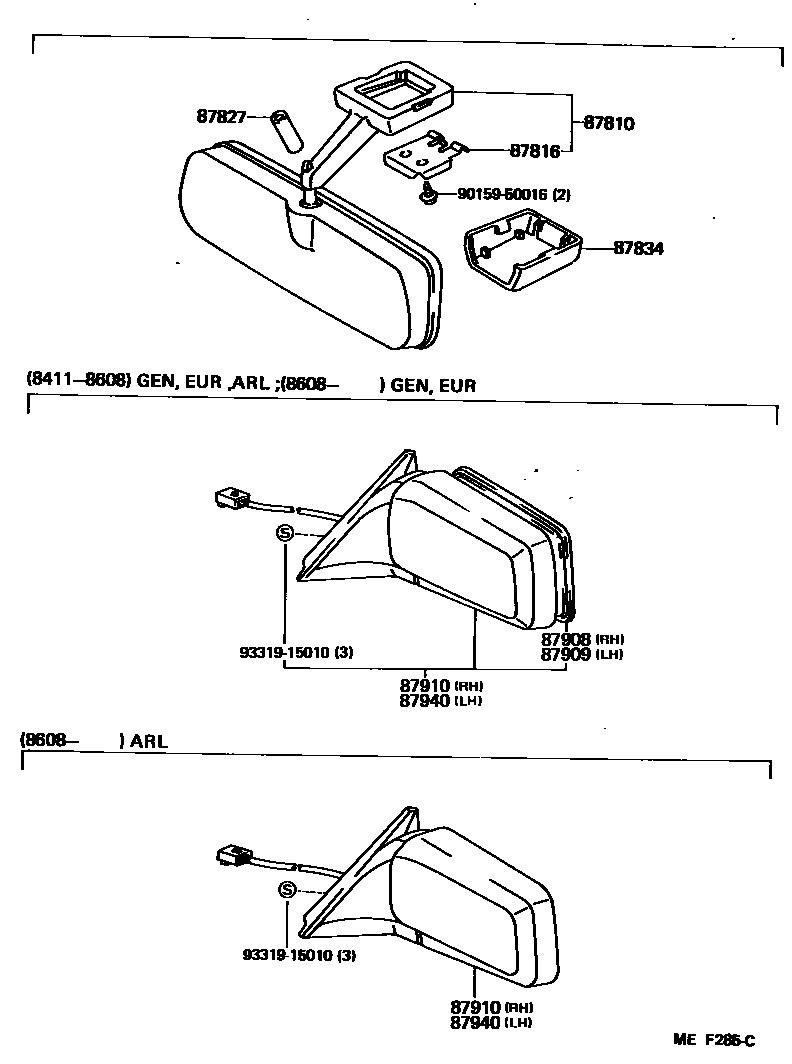

87810MIRROR ASSY, INNER REAR VIEW

main87810-17020-01iAW11198411-198606

BLACK,BLACK,TRIM2#

main87810-17021-01iAW11198606-198803

BLACK,BLACK,TRIM2#

main87810-17021-04iAW11198803-198912

DARK BLUE,TRIM8#

main87810-17021-05iAW11..EUR,GEN198803-198808

DARK BEIGE,TRIM4#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iAW11198411-198912

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-30010iAW11198411-198803

L=44

main87828-32010iAW11198803-198912

L=47

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-11iAW11198803-198808

BLACK,TRIM2#

main87834-20080-21iAW11198808-198912

BLACK,TRIM2#

main87834-20080-33iAW11198411-198608

LIGHT GRAY,GRAY,TRIM2#

main87834-20080-44iAW11198803-198912

DARK BLUE,TRIM8#

main87834-20080-55iAW11..EUR,GEN198803-198808

DARK BEIGE,TRIM4#

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87931-17030iAW11198411-198608

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87961-17060iAW11198411-198608

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-17032iAW11..RHD..(EUR,GEN)198803-198912

main87910-17051iAW11..LHD198608-198912

main87910-17120iAW11..ARL198708-198912

main87910-80142iAW11..RHD198411-198608

sub87910-17030

main87910-80144iAW11..LHD198411-198608

sub87910-17050

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-17051iAW11..LHD198608-198912

main87940-17062iAW11..RHD..(EUR,GEN)198803-198912

main87940-17130iAW11..ARL198708-198912

main87940-80144iAW11..LHD198411-198608

sub87940-17050

main87940-80152iAW11..RHD198411-198608

sub87940-17060

9015950016

main90159-50016

9331915010

main93319-15010

10 parts on this diagram · 1 diagram in section
