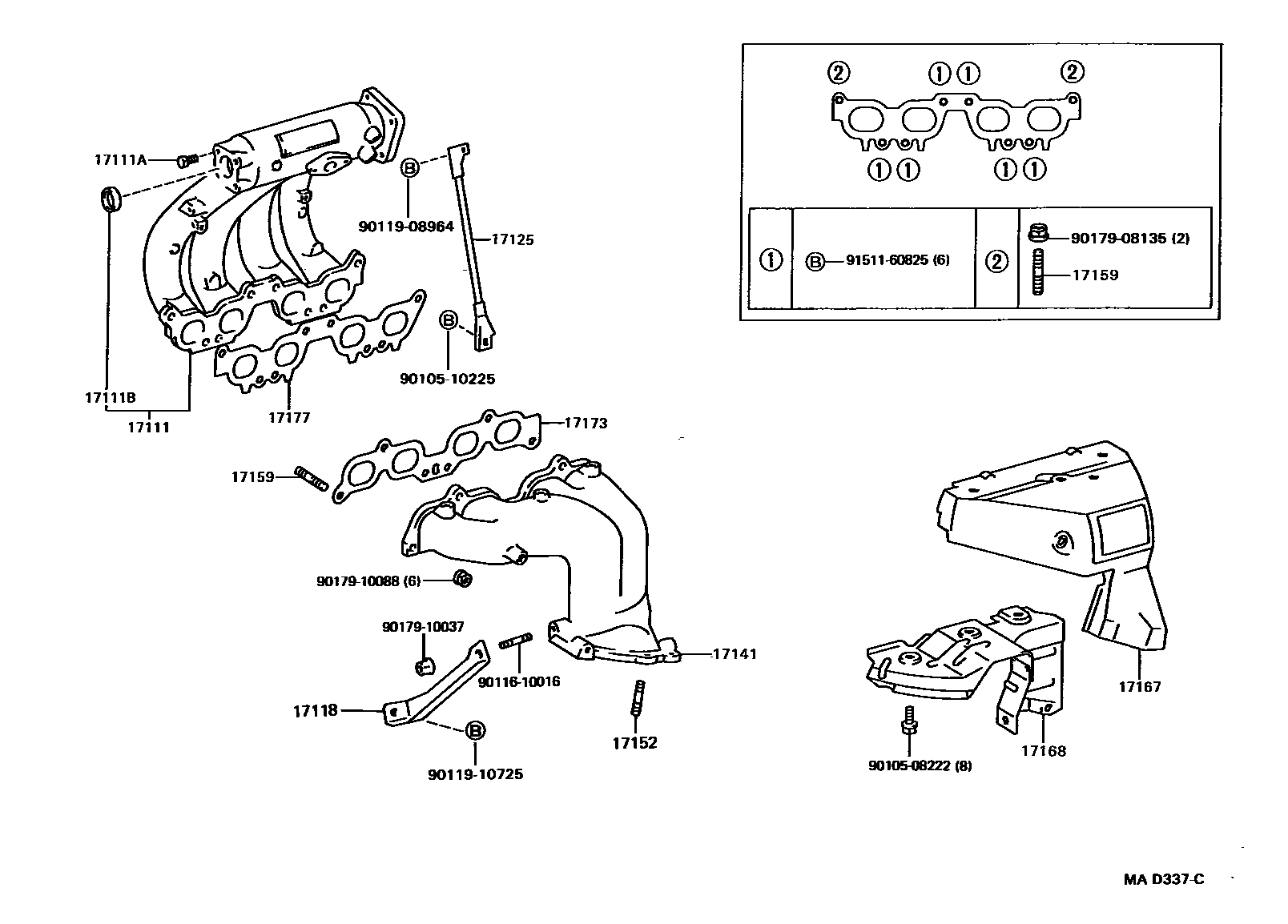

Toyota MR2 — MANIFOLD
17111MANIFOLD, INTAKE
17111APLUG, NO.1
17111BPLUG, NO.2
17118STAY, MANIFOLD
17125STAY, SURGE TANK, NO.1
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE MANIFOLD
EXHAUST MANIFOLD
EXHAUST MANIFOLD
EXHAUST MANIFOLD
INTAKE MANIFOLD
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
9010508222
main90105-08222
9010510225
main90105-10225
9011610016
main90116-10016
9011908964
main90119-08964
9011910725
main90119-10725
9017908135
main90179-08135
9017910037
main90179-10037
9017910088
main90179-10088
9151160825
main91511-60825
20 parts on this diagram · 4 diagrams in section
MANIFOLD for Toyota MR2
This section contains 73 genuine Toyota parts for the MANIFOLD system of the Toyota MR2. Key components include: MANIFOLD, INTAKE, PLUG, NO.1, PLUG, NO.2, STAY, MANIFOLD, COVER, SURGE TANK.
