Toyota MR2 — LOCK CYLINDER SET

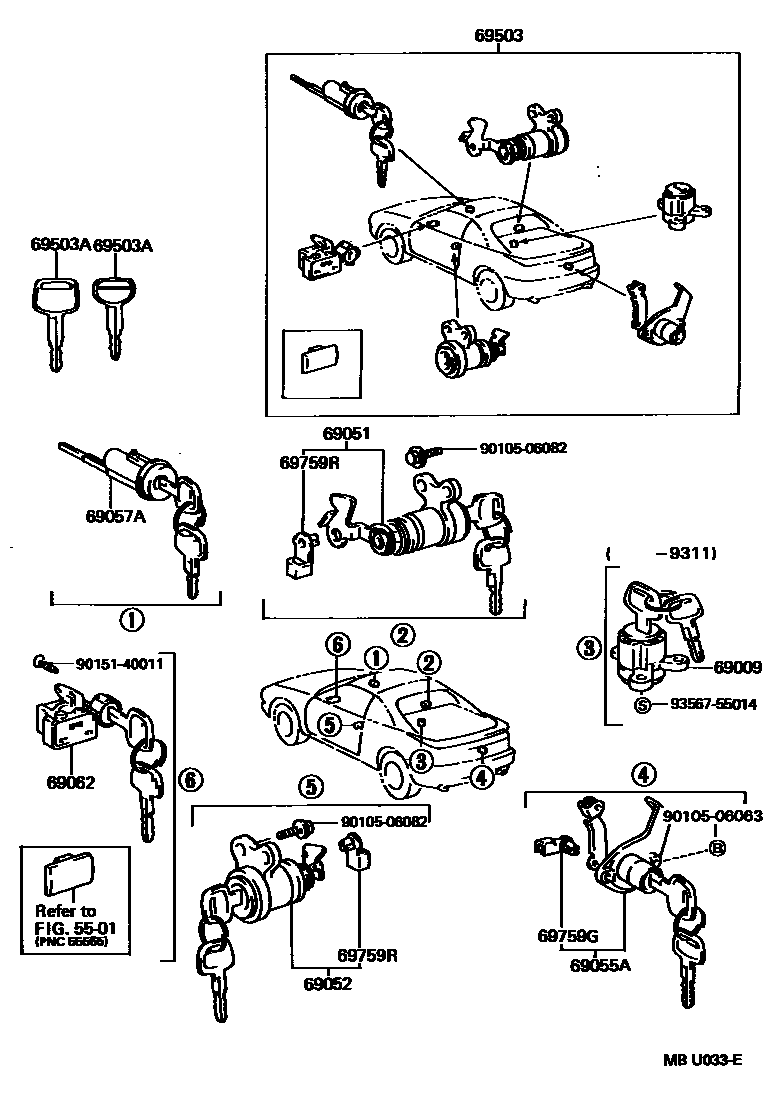

Parts diagram
5501INSTRUMENT PANEL & GLOVE COMPARTMENT
→ Go to FIG 55-01
69009CYLINDER & KEY SET, DECK COMPARTMENT LOCK
main69009-17010i198912-199112
*82; SINGAPORE SPEC OR *82
main69009-17030i199105-199112
69051CYLINDER & KEY SET, DOOR LOCK, RH
main69051-17041i198912-199112
*82; SINGAPORE SPEC OR *82
main69051-17061i199105-199112
main69051-17091i199010-199105
W(*PW)
main69051-17101i198912-199105
W(*PW)
69052CYLINDER & KEY SET, DOOR LOCK, LH
main69052-17041i198912-199112
*82; SINGAPORE SPEC OR *82
main69052-17061i198912-199105
main69052-17091i198912-199010
W(THEFT-DETERRENT SYSTEM) OR W(*PW) OR W(THEFT-DETERRENT SYSTEM & SWITZERLAND SPEC); W(THEFT-SYSTEM) OR W(*PW)
main69052-17101i198912-199010
W(*PW & *82) OR W(THEFT-DETERRENT SYSTEM & *82); W(THEFT-DETERRENT SYSTEM & SINGAPORE SPEC) OR W(*82 & *PW);W(SINGAPORE SPEC & *PW)OR W(*82 & THEFT-DETERRENT SYSTEM)
69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
main69055-17050i199112-199311
W(HONGKONG SPEC)
main69055-17070i199105-199311
main69055-17071i199311-199512
main69055-17100i198912-199010
W(THEFT-DETERRENT SYSTEM)
main69055-17101i199311-199512
W(ANTI-THEFT DEVICE)
main69055-17110i199010-199112
W(THEFT-DETERRENT SYSTEM & *82 & *PW); W(THEFT-DETERRENT SYSTEM & SINGAPORE SPEC & *PW)
main69055-17130i199512
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
main69057-17050i198912-199112
SINGAPORE SPEC OR *82
main69057-17070i199105-199311
main69057-17071i199512-199606
W(THEFT-DETERRENT SYSTEM)
main69057-17080i198912-199311
main69057-17081i199311-199512
main69057-17100i198912-199112
*82
69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
main69056-17040i198912-199112
*82; SINGAPORE SPEC OR *82
main69056-17060i199105-199311
main69056-17061i199311
69503CYLINDER SET, LOCK
main69005-17101i198912-199112
W(*PW)
main69005-17151i198912-199105
main69005-17161i199105-199112
W(*PW)
main69005-17171i198912-199105
main69005-17191i199010-199112
W(THEFT-DETERRENT SYSTEM & *PW)
main69005-17201i198912-199112
main69005-17231i198912-199010
THEFT-DETERRENT SYSTEM; W(THEFT-DETERRENT SYSTEM)
main69005-17281i198912-199112
*82
main69005-17291i198912-199112
*82 & W(*PW) OR SINGAPORE SPEC & W(*PW)
main69005-17301i198912-199112
*82 & W(*PW)
main69005-17381i198912-199010
W(THEFT-DETERRENT SYSTEM & *82) OR W(THEFT-DETERRENT SYSTEM & SINGAPORE SPEC)
main69005-17391i199010-199112
W(THEFT-DETERRENT SYSTEM & *82 & *PW)
main69005-17430i199112-199311
main69005-17431i199311-199512
main69005-17440i199112-199311
main69005-17441i199311-199512
main69005-17450i199112-199311
HONGKONG SPEC
main69005-17490i199112-199311
THEFT-DETERRENT SYSTEM
main69005-17491i199311-199512
W(ANTI-THEFT DEVICE)
main69005-17500i199112-199311
W(THEFT-DETERRENT SYSTEM)
main69005-17501i199311-199512
W(ANTI-THEFT DEVICE)
main69005-17540i199112-199311
W(THEFT-DETERRENT SYSTEM & HONGKONG SPEC)
69503AKEY, BLANK
main90999-00149×2i199512-199606
MASTER KEY,W(*68)
main90999-00150i199512-199606
SUB KEY,W(*68)
main90999-00163i198912-199112
MASTER KEY,*82; MASTER KEY,SINGAPORE SPEC OR *82
main90999-00164i198912-199112
MASTER KEY,W(*68),*82; MASTER KEY,W(*68),SINGAPORE SPEC OR *82
main90999-00165i198912-199105
SUB KEY
69759GSNAP, LUGGAGE DOOR LOCK CYLINDER
main69759-24090i198912
69759RSNAP, FRONT DOOR LOCK CYLINDER
main69759-20080i198912-199112
ORANGE
main69759-20090i198912-199112
PINK
main69759-22080i199112
ORANGE
main69759-22090i199311-199606
W(THEFT-DETERRENT SYSTEM),PINK
9010506063
main90105-06063
9010506082
main90105-06082
9015140011
main90151-40011
9356755014
main93567-55014

15 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota MR2

This section contains 15 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota MR2. Key components include: INSTRUMENT PANEL & GLOVE COMPARTMENT, CYLINDER & KEY SET, DECK COMPARTMENT LOCK, CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK.
