Toyota MR2 — INTERIOR LAMP

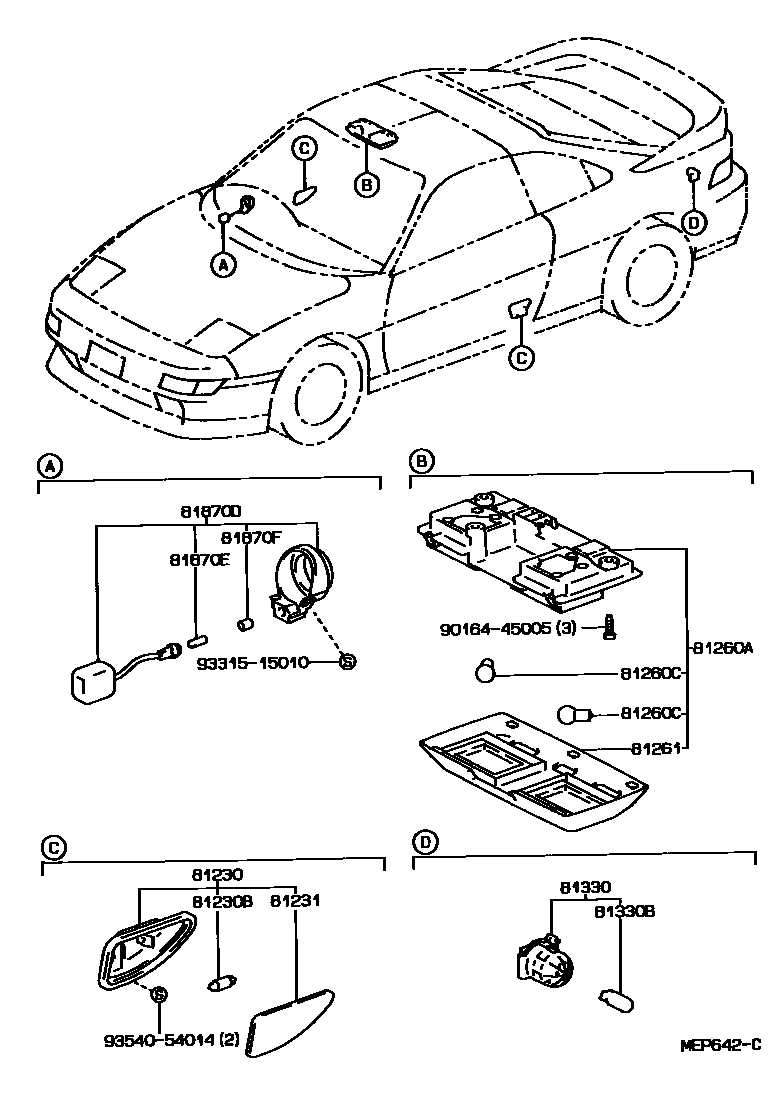

Parts diagram
81230LAMP ASSY, COURTESY
main81230-17010-01i198912-199311
BLACK,TRIM22,RH
main81230-17010-01i199311-199712
BLACK,TRIM23,RH
main81230-17010-01i199712
BLACK,TRIM2#,23,RH
main81230-17010-04i198912-199311
DARK BLUE,TRIM8#,RH
main81310-17010-01i199712
BLACK,TRIM2#,23,LH
main81310-17010-01i199311-199712
BLACK,TRIM23,LH
main81310-17010-01i198912-199311
BLACK,TRIM22,LH
main81310-17010-04i198912-199311
DARK BLUE,TRIM8#,LH
81230BBULB(FOR COURTESY LAMP)
main90981-14001i198912
12V 3W
81231LENS, COURTESY LAMP
main81231-17010i198912
RH
main81311-17010i198912
LH
81260ALAMP ASSY, MAP
main81260-17010-01i198912-199112
BLACK,TRIM2#
main81260-17010-04i198912-199112
DARK BLUE,TRIM8#
main81260-17010-B1i199112-199803
GRAY,TRIM2#
main81260-17010-B2i199803
BLUE GRAY,TRIM2#
main81260-17010-J0i199112-199311
BLUE,TRIM8#
81260CBULB(FOR MAP LAMP)
main90981-12005i198912
12V 8W
81261LENS AND COVER, MAP LAMP
main81261-17010-01i198912-199112
BLACK,TRIM2#
main81261-17010-04i198912-199112
DARK BLUE,TRIM8#
main81261-17010-B0i199112-199803
GRAY,TRIM2#
main81261-17010-B1i199803
BLUE GRAY,TRIM2#
main81261-17010-J0i199112-199311
BLUE,TRIM8#
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
main81330-30090i198912
81330BBULB, LUGGAGE COMPARTMENT LAMP
main90981-11020i198912
12V 3.8W
81870DLAMP ASSY, KEY CYLINDER
main81870-17010i198912-199112
main81870-17020i199112-199606
81870EBULB, KEY CYLINDER LAMP
main90981-11014i198912-199112
14V 1.4W
main90981-11018i199112-199606
12V 1.2W W/O SOCKET
81870FCAP, KEY CYLINDER LAMP BULB
main84998-10070i198912-199606
9016445005
main90164-45005
9331515010
main93315-15010
9354054014
main93540-54014

14 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota MR2

This section contains 14 genuine Toyota parts for the INTERIOR LAMP system of the Toyota MR2. Key components include: LAMP ASSY, COURTESY, BULB(FOR COURTESY LAMP), LENS, COURTESY LAMP, LAMP ASSY, MAP, BULB(FOR MAP LAMP).
