Toyota MR2 — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01164×4i199912-200208

K16R-U11

19500COIL ASSY, IGNITION

main90080-19015×4i200502-200509

(L),MARK 90080-19015

main90080-19019×4i200502-200509

(L),MARK 90080-19019

main90919-02239×4i200208-200502

main90919-T2002×4i200502-200509

(L),MARK 90919-T2002

9010506283

main90105-06283

3 parts on this diagram · 1 diagram in section

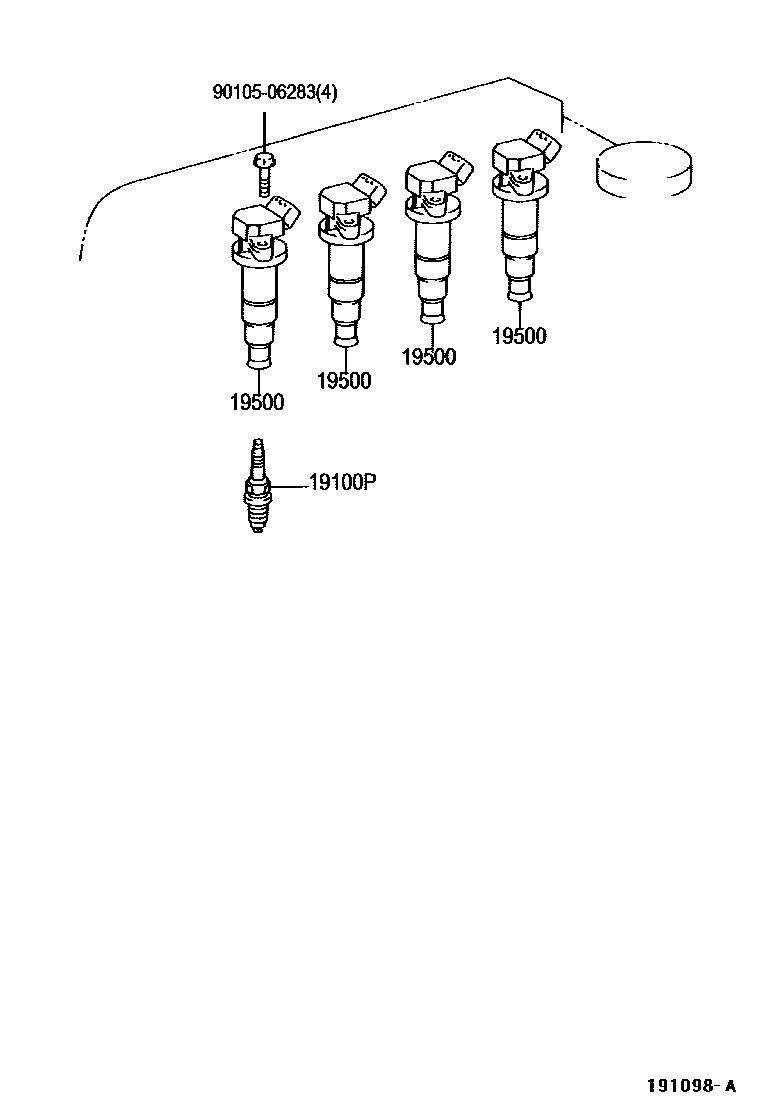

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota MR2

This section contains 3 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota MR2. Key components include: PLUG, SPARK, COIL ASSY, IGNITION.
