Toyota MR2 — HORN

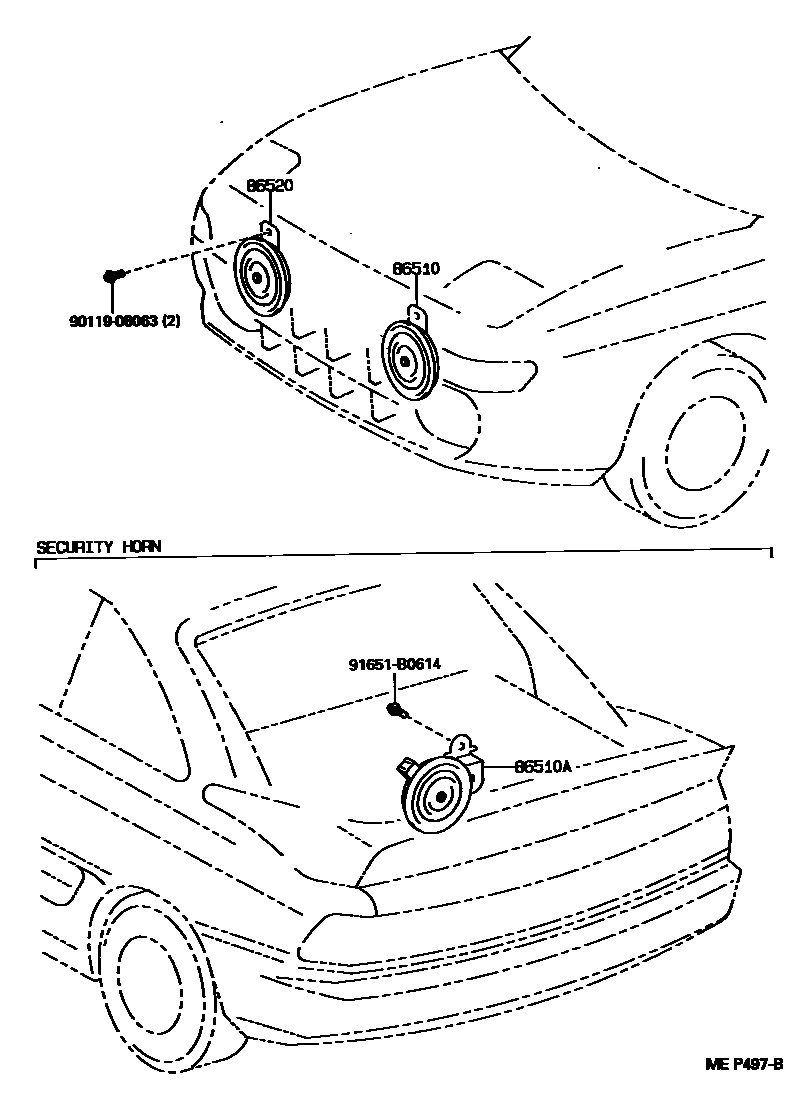

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86510-17100i198912

86510AHORN ASSY, SECURITY

main86510-17070i198912-199511

86520HORN ASSY, LOW PITCHED

main86520-17100i198912

9011908063

main90119-08063

91651B0614

main91651-B0614

5 parts on this diagram · 1 diagram in section
