Toyota MR2 — HEATING & AIR CONDITIONING - COMPRESSOR
1605V-BELT
88301ROTOR SUB-ASSY, MAGNET CLUTCH
88302STATOR SUB-ASSY, MAGNET CLUTCH
88320COMPRESSOR ASSY, COOLER
COOLER=MAKER OPTION
COOLER=DEALER OPTION
W(AUTOMATIC AIR CONDITIONER(MOP))
W(AUTOMATIC AIR CONDITIONER(DOP))
88330CLUTCH ASSY, MAGNET
88330AWASHER (FOR MAGNET CLUTCH)
88330BBEARING, MAGNET CLUTCH
88330CRING, SNAP (FOR MAGNET CLUTCH)
88403HUB SUB-ASSY, MAGNET CLUTCH
88431BRACKET, COMPRESSOR MOUNTING, NO.1
88595PULLEY, COOLER COMPRESSOR IDLE
88596APLATE, CAUTION
8871822420PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-22420
8889117020PACKING (FOR COOLER)
main88891-17020
8889920090COVER, EVAPORATOR
main88899-20090
9009904306
main90099-04306
9009904950
main90099-04950
9009907087
main90099-07087
9162161025
main91621-61025
9162161030
main91621-61030
9165161030
main91651-61030
9411040800
main94110-40800
9451100800
main94511-00800

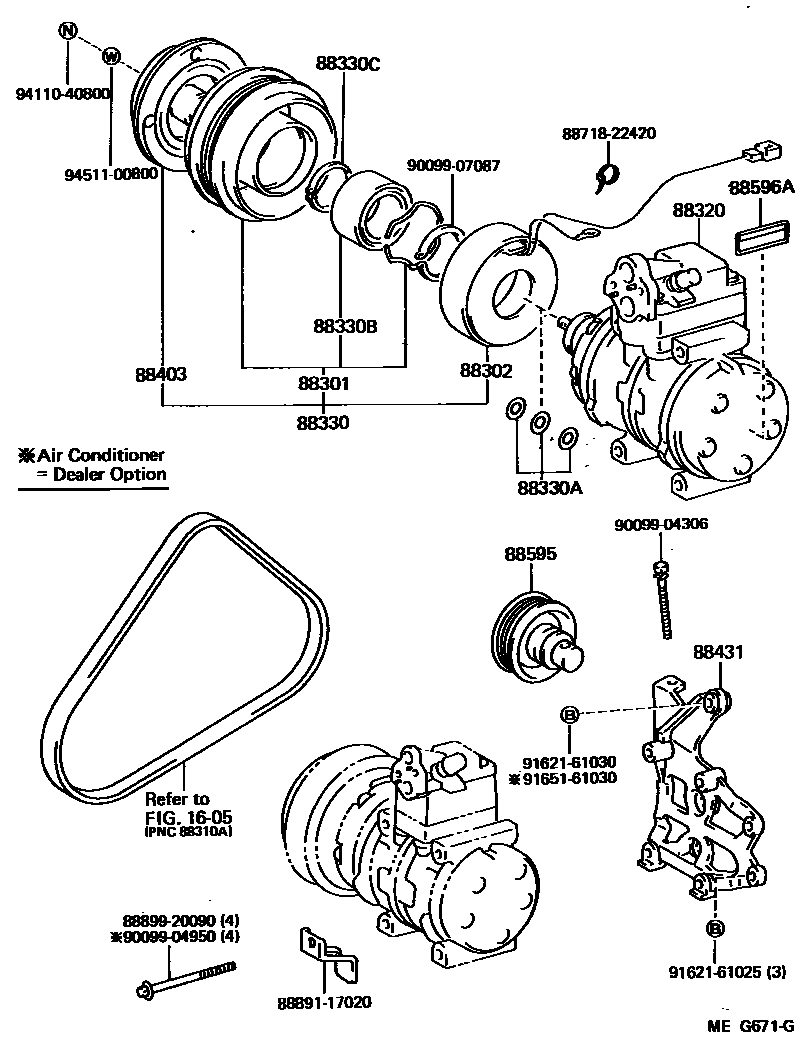

23 parts on this diagram · 2 diagrams in section
HEATING & AIR CONDITIONING - COMPRESSOR for Toyota MR2
This section contains 42 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota MR2. Key components include: V-BELT, ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, CYLINDER SUB-ASSY, COOLER COMPRESSOR, CRANKSHAFT, COOLER COMPRESSOR.
