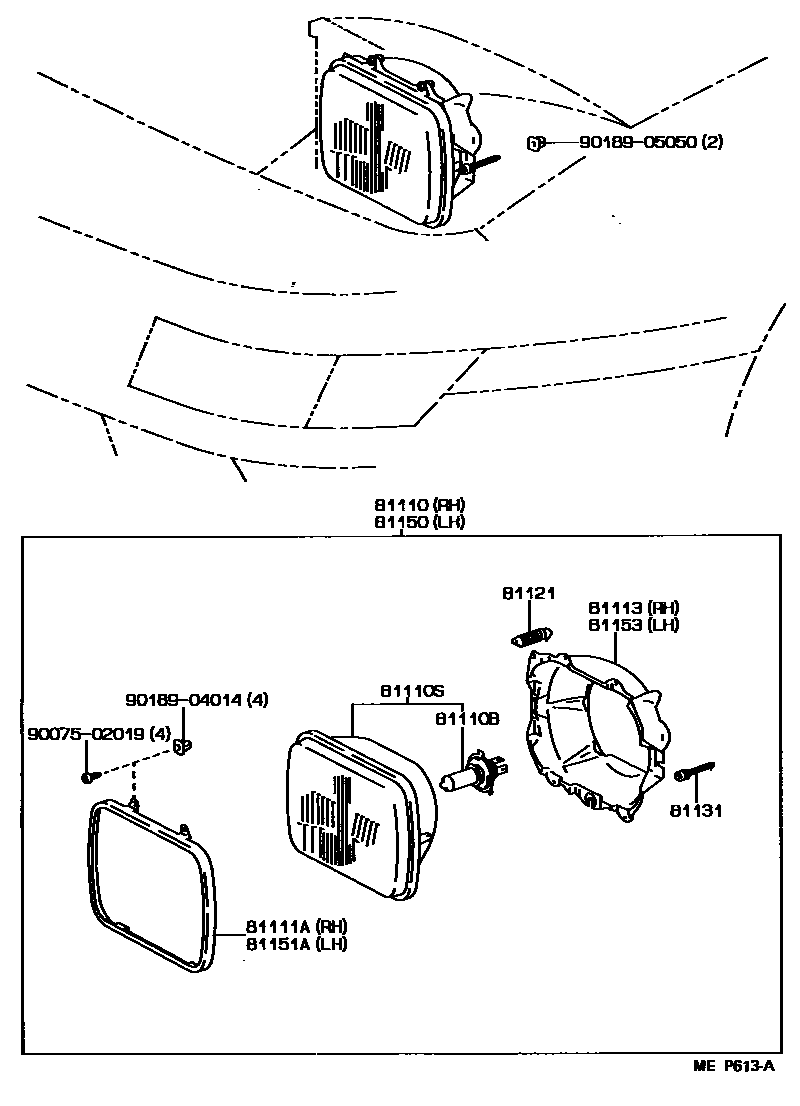

Toyota MR2 — HEADLAMP
81110HEADLAMP ASSY, RH
RH TRAFFIC SPEC
RH TRAFFIC SPEC
FRANCE SPEC
*FRG; UNITED KINGDOM SPEC & RH TRAFFIC SPEC
W(WVTA PLATE); W(WVTA PLATE) & RH TRAFFIC SPEC
UNITED KINGDOM SPEC
W(WVTA PLATE)
81110BBULB(FOR HEADLAMP, NO.1)
12V 60/55W,*HAL *WH
12V 60/55W,*HAL *YE
81110SSEALED BEAM UNIT, NO.1
12V 60/55W,*HWS
12V 60/55W,*HWS; 12V 60/55W,*HWS,RH TRAFFIC SPEC
12V 60/55W,*HYS,FRANCE SPEC
12V 60/55W,*HWS
12V 70/55W,*HAL,*WB
81111ARING, SEALED BEAM RETAINING, NO.1 RH
81113RING, SEALED BEAM MOUNTING, NO.1 RH
*FRG; UNITED KINGDOM SPEC
81121SPRING, HEADLAMP TENSION
*FRG; UNITED KINGDOM SPEC
81131SCREW, HEADLAMP ADJUSTING
*FRG; UNITED KINGDOM SPEC
81150HEADLAMP ASSY, LH
RH TRAFFIC SPEC
RH TRAFFIC SPEC
FRANCE SPEC
*FRG; UNITED KINGDOM SPEC & RH TRAFFIC SPEC
W(WVTA PLATE); W(WVTA PLATE) & RH TRAFFIC SPEC
UNITED KINGDOM SPEC
W(WVTA PLATE)
81151ARING, SEALED BEAM RETAINING, NO.1 LH
81153RING, SEALED BEAM MOUNTING, NO.1 LH
*FRG; UNITED KINGDOM SPEC
9007502019
main90075-02019
9018904014
main90189-04014
9018905050
main90189-05050
13 parts on this diagram · 3 diagrams in section
HEADLAMP for Toyota MR2
This section contains 22 genuine Toyota parts for the HEADLAMP system of the Toyota MR2. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), SEALED BEAM UNIT, NO.1, RING, SEALED BEAM RETAINING, NO.1 RH, RING, SEALED BEAM MOUNTING, NO.1 RH.
