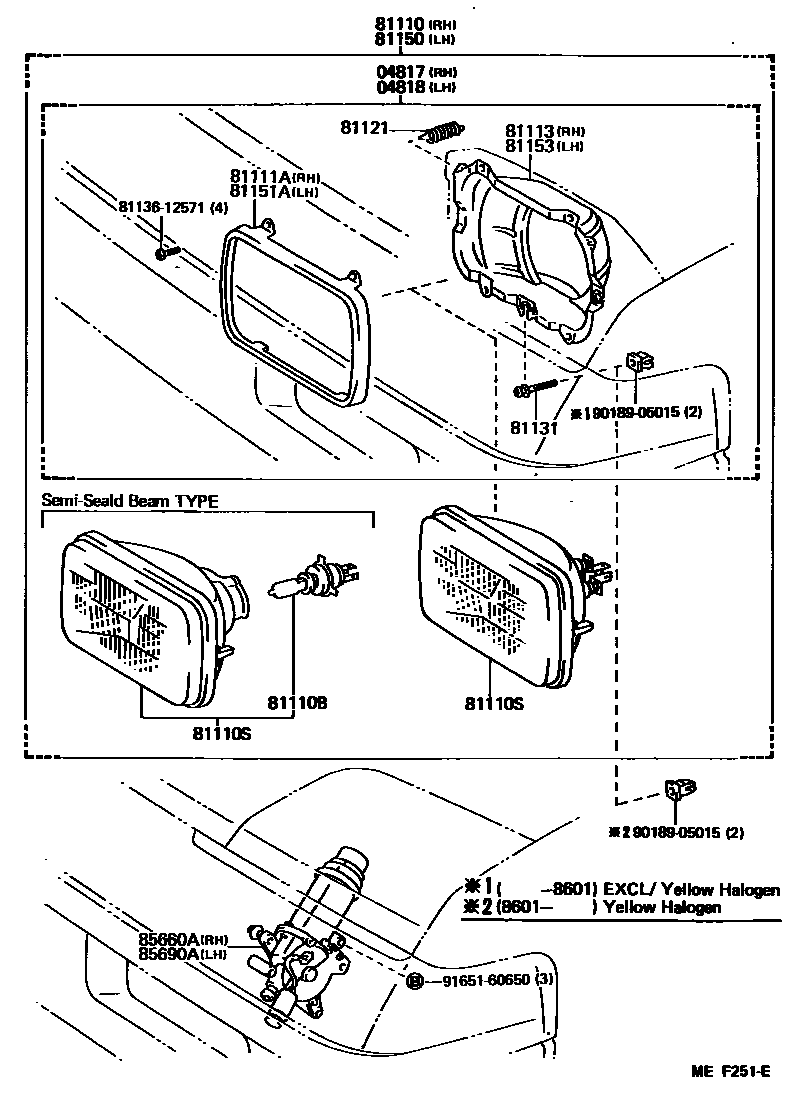

Toyota MR2 — HEADLAMP

04817HEADLAMP KIT, W/O SEALED BEAM, RH

main04817-17010i198411-198803

04818HEADLAMP KIT, W/O SEALED BEAM, LH

main04818-17010i198411-198803

81110HEADLAMP ASSY, RH

main81110-17020i198601-198608

main81110-17030i198601-198608

main81110-17040i198803-198912

NATO SPEC

main81110-17050i198608-198912

main81110-2B010i198508-198803

HALOGEN,YELLOW

main81110-80390i198411-198601

main81110-80391i198411-198601

main81110-80392i198502-198601

NATO SPEC

main81110-80393i198411-198601

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015×2i198608-198803

12V 60/55W,*HAL *WH,12V 60/55W

main90981-13016×2i198803-198912

12V 60/55W,*HAL *YE

81110SSEALED BEAM UNIT, NO.1

main90981-04020×2i198411-198608

12V 65/35W,*HAL,*WB,12V 65/35W

main90981-04024×2i198803-198912

12V 60/55W,*HWS

main90981-04025×2i198803-198912

12V 60/55W,*HWS

main90981-04026×2i198508-198803

12V 60/55W,*HYS,12V 60/55W,HALOGEN,YELLOW

main90981-04030×2i198411-198608

12V 60/55W,*HWS,12V 60/55W

81111ARING, SEALED BEAM RETAINING, NO.1 RH

main81111-17010i198411-198912

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-17010i198411-198912

81121SPRING, HEADLAMP TENSION

main81121-14670×2i198411-198508

main81121-17010×2i198508-198912

81131SCREW, HEADLAMP ADJUSTING

main81131-17010×2i198411-198803

81150HEADLAMP ASSY, LH

main81150-17020i198601-198608

main81150-17030i198601-198608

main81150-17040i198803-198912

NATO SPEC

main81150-17050i198608-198912

main81150-20860i198608-198803

HALOGEN,YELLOW

main81150-80382i198411-198601

main81150-80383i198411-198601

main81150-80384i198502-198601

NATO SPEC

main81150-80385i198411-198601

81151ARING, SEALED BEAM RETAINING, NO.1 LH

main81111-17010i198411-198912

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81153-17010i198411-198912

85660AMOTOR ASSY, LIGHT RETRACTOR, RH

main85660-17010i198411-198912

85690AMOTOR ASSY, LIGHT RETRACTOR, LH

main85690-17010i198411-198912

8113612571PROTECTOR, HEADLAMP, NO.1 RH

main81136-12571

9018905015

main90189-05015

9165160650

main91651-60650

17 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota MR2

This section contains 17 genuine Toyota parts for the HEADLAMP system of the Toyota MR2. Key components include: HEADLAMP KIT, W/O SEALED BEAM, RH, HEADLAMP KIT, W/O SEALED BEAM, LH, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), SEALED BEAM UNIT, NO.1.
