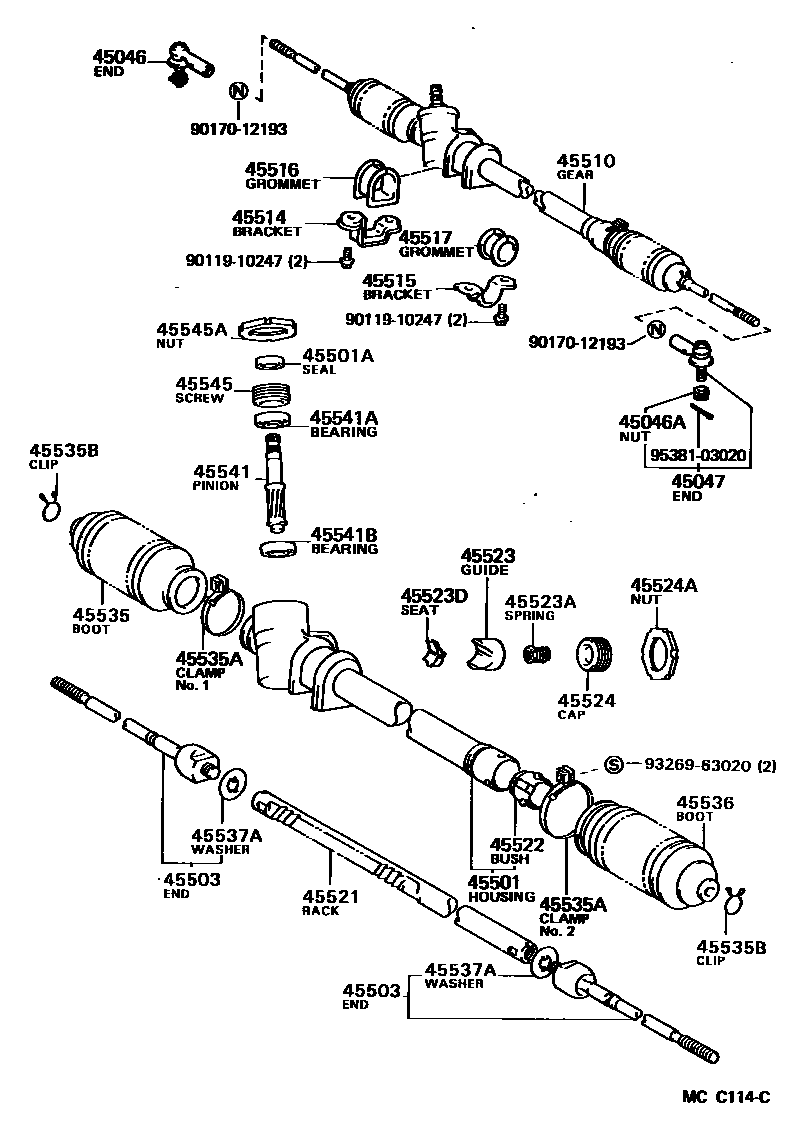

Toyota MR2 — FRONT STEERING GEAR & LINK
45046END SUB-ASSY, TIE ROD, RH
45046ANUT, CASTLE(FOR TIE ROD END)
45047END SUB-ASSY, TIE ROD, LH
45501HOUSING SUB-ASSY, STEERING RACK
45501ASEAL, TYPE T OIL(FOR STEERING RACK HOUSING)
45503END SUB-ASSY, STEERING RACK
45510GEAR ASSY, STEERING
45514BRACKET, STEERING RACK HOUSING, NO.1
45515BRACKET, STEERING RACK HOUSING, NO.2
45516GROMMET, STEERING RACK HOUSING, NO.1
45517GROMMET, STEERING RACK HOUSING, NO.2
45521RACK, STEERING
45522BUSH, STEERING RACK
45523GUIDE, RACK(FOR STEERING GEAR)
45523ASPRING(FOR STEERING GEAR RACK GUIDE)
45523DSEAT, RACK GUIDE
45524CAP, STEERING RACK GUIDE SPRING
45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)
45535BOOT, STEERING RACK, NO.1
45535ACLAMP(FOR STEERING RACK BOOT)
NO.1 BOOT
NO.2 BOOT
45535BCLIP(FOR STEERING RACK BOOT)
45537AWASHER, CLAW(FOR STEERING RACK END LOCK)
45541ABEARING, RADIAL BALL(FOR STEERING PINION UPPER)
45541BBEARING, RADIAL BALL(FOR STEERING PINION LOWER)
45545SCREW, PINION BEARING ADJUSTING
45545ANUT(FOR PINION BEARING ADJUSTING SCREW)
9011910247
main90119-10247
9017012193
main90170-12193
9326963020
main93269-63020
9538103020
main95381-03020
32 parts on this diagram · 1 diagram in section
FRONT STEERING GEAR & LINK for Toyota MR2
This section contains 32 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota MR2. Key components include: END SUB-ASSY, TIE ROD, RH, NUT, CASTLE(FOR TIE ROD END), END SUB-ASSY, TIE ROD, LH, HOUSING SUB-ASSY, STEERING RACK, SEAL, TYPE T OIL(FOR STEERING RACK HOUSING).
