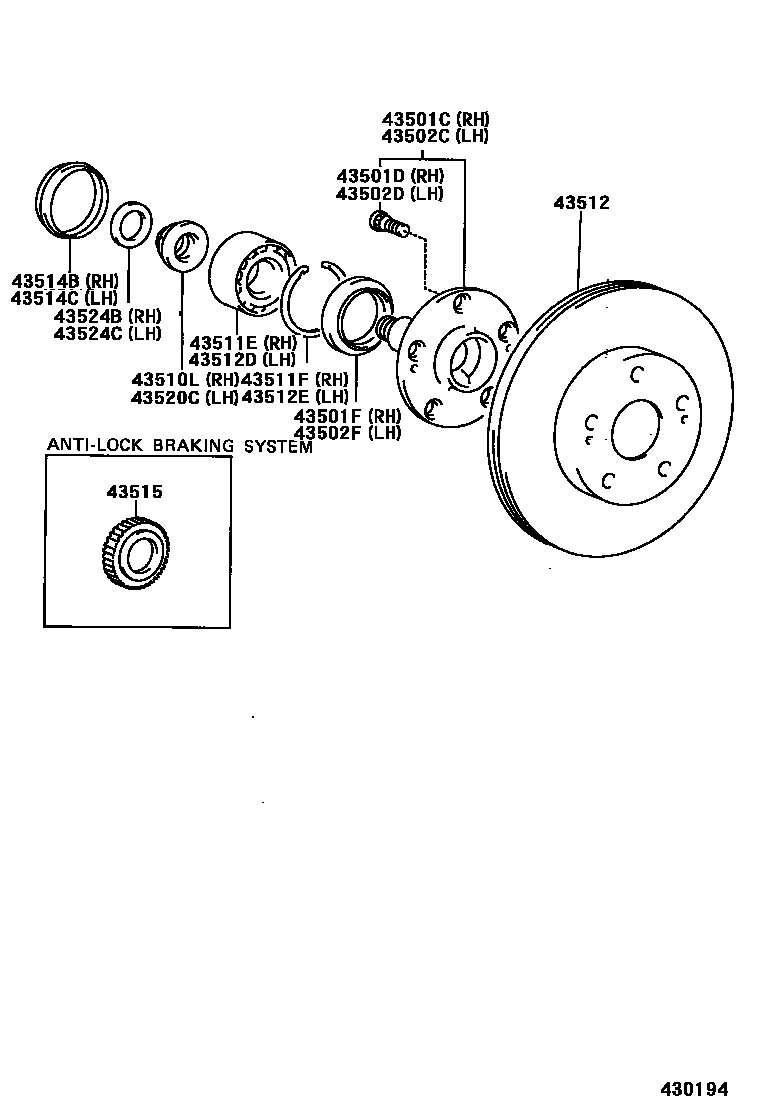

Toyota MR2 — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-17020iSW20198912

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iSW20198912

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-42018iSW20198912

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-17020iSW20198912

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iSW20198912

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-42018iSW20198912

43510LNUT (FOR STEERING KNUCKLE RH)

main90179-20003iSW20198912-199509

main90179-20017iSW20199509

43511EBEARING (FOR FRONT AXLE HUB RH)

main90369-30044iSW20198912

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-68001iSW20198912

43512DISC, FRONT

main43512-17040×2iSW20..ARL198912-199112

sub43512-17050

main43512-17070×2iSW20..G,W198912-199112

main43512-17080×2iSW20199208

main43512-17090×2iSW20199112-199208

43512DBEARING (FOR FRONT AXLE HUB LH)

main90369-30044iSW20198912

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-68001iSW20198912

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-17020iSW20198912

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-17020iSW20198912

43515ROTOR, SKID CONTROL, FRONT

main43515-17010×2iSW20198912

43520CNUT (FOR STEERING KNUCKLE LH)

main90179-20003iSW20198912-199509

main90179-20017iSW20199509

43524BSPACER, FRONT WHEEL INNER BEARING, RH

main43524-17010iSW20198912-199712

43524CSPACER, FRONT WHEEL INNER BEARING, LH

main43524-17010iSW20198912-199712

18 parts on this diagram · 1 diagram in section
