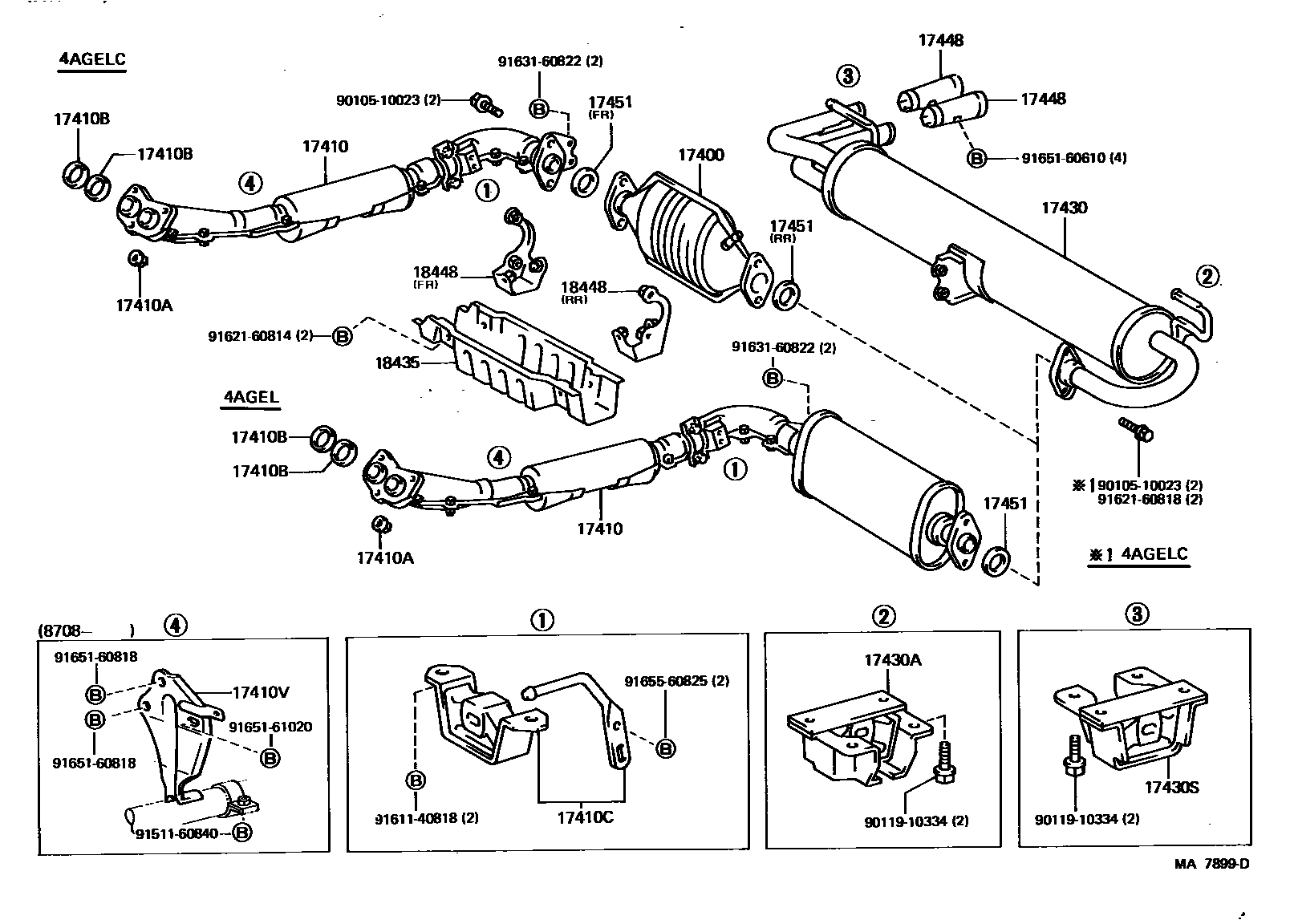

Toyota MR2 — EXHAUST PIPE
17400CONVERTER ASSY, W/CATALYST
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17410VBRACKET, EXHAUST PIPE FRONT (FOR REAR)
17430PIPE ASSY, EXHAUST, TAIL
17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)
17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)
17448BAFFLE, TAILPIPE
17451GASKET, EXHAUST PIPE
FR
RR
18435PROTECTOR, CATALYTIC CONVERTER
18448BRACKET, CONVERTER PROTECTOR, CENTER
FR
RR
RR
9010510023
main90105-10023
9011910334
main90119-10334
9151160840
main91511-60840
9161140818
main91611-40818
9162160814
main91621-60814
9162160818
main91621-60818
9163160822
main91631-60822
9165160610
main91651-60610
9165160818
main91651-60818
9165161020
main91651-61020
9165560825
main91655-60825
24 parts on this diagram · 1 diagram in section
EXHAUST PIPE for Toyota MR2
This section contains 24 genuine Toyota parts for the EXHAUST PIPE system of the Toyota MR2. Key components include: CONVERTER ASSY, W/CATALYST, PIPE ASSY, EXHAUST, FRONT, NUT, EXHAUST PIPE SET STUD BOLT, GASKET, EXHAUST PIPE, BRACKET, EXHAUST PIPE FRONT (FOR FRONT).
