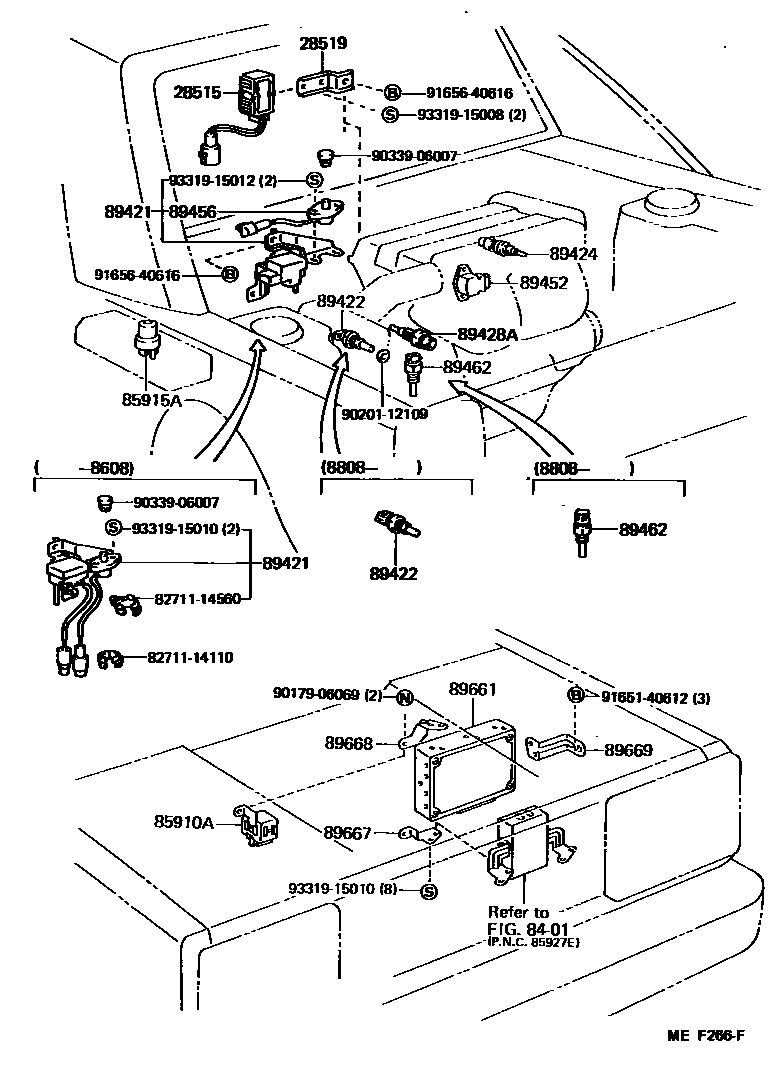

Toyota MR2 — ELECTRONIC FUEL INJECTION SYSTEM
28515RESISTOR, SOLENOID
28519BRACKET, SOLENOID RESISTOR
8401SWITCH & RELAY & COMPUTER
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85915ARELAY, MAIN
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89428ASWITCH, WATER TEMPERATURE (FOR E.F.I)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
DENSO
AISIN
89456RESISTOR, VARIABLE
89661COMPUTER, ENGINE CONTROL
SINGAPOLE SPEC
SINGAPORE SPEC
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
89669BRACKET, ENGINE CONTROL COMPUTER, NO.3
8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14110
8271114560WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14560
9017906069
main90179-06069
9020112109
main90201-12109
9033906007
main90339-06007
9165140612
main91651-40612
9165640616
main91656-40616
9331915008
main93319-15008
9331915010
main93319-15010
9331915012
main93319-15012
26 parts on this diagram · 1 diagram in section
ELECTRONIC FUEL INJECTION SYSTEM for Toyota MR2
This section contains 26 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota MR2. Key components include: RESISTOR, SOLENOID, BRACKET, SOLENOID RESISTOR, SWITCH & RELAY & COMPUTER, RELAY ASSY, CIRCUIT OPENING (FOR EFI), RELAY, MAIN.
